SXN15H-AHSSK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )SU

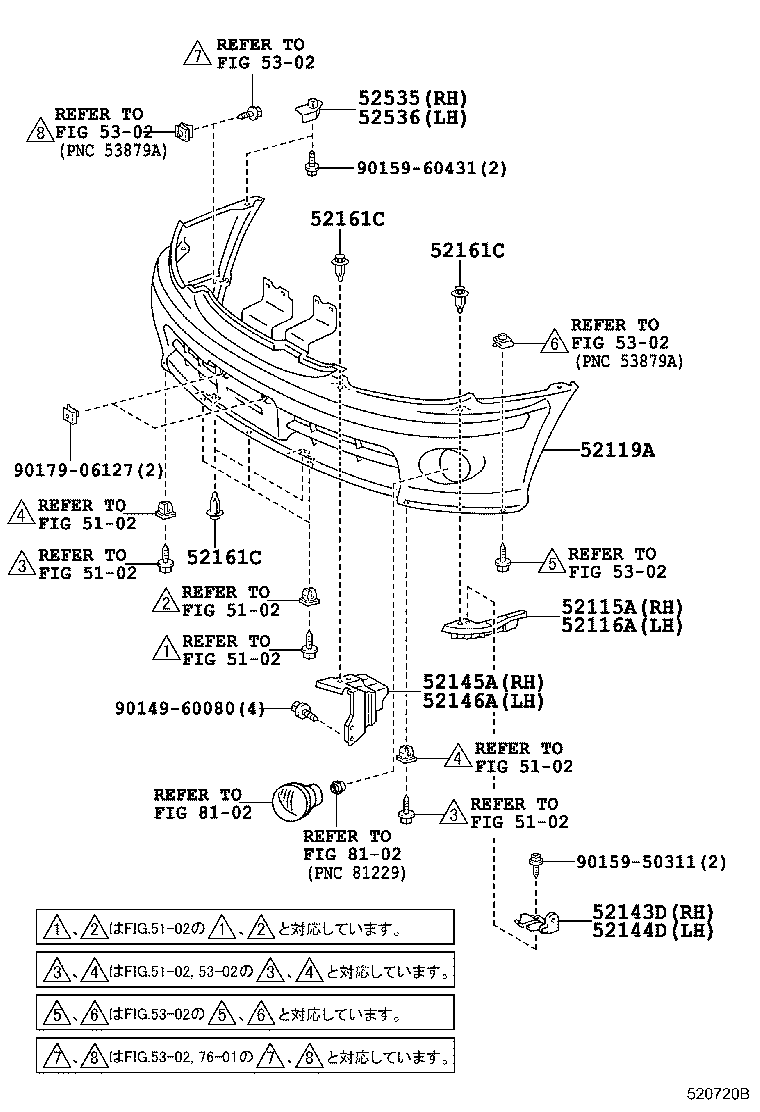

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 52115A 52116A 52119A 52143D 52144D 52145A 52146A 52161C 52161C 52161C 52535 52536 5302 5302 5302 5302 8102 8102 9014960080 9015950311 9015960431 9017906127
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-44030

ACN1#,SXN1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-44030

ACN1#,SXN1#

 1
52119A - COVER, FRONT BUMPER
52119-44110B1

SXN1#

DK BLUISH GRAY MICA,191

 1
52119-44120J0

SXN1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK.BLUE M.M.,8L7

 1
52119-44120B1

SXN1#

ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK BLUISH GRAY MICA,191

 1
52119-44110J0

SXN1#

DK.BLUE M.M.,8L7

 1
52119-44160A0

ACN1#,SXN15..SU

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM,042

 1
52119-44160C2

ACN1#,SXN15..SU

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLACK,202

 1
52119-44150C2

ACN1#,SXN15..SU

BLACK,202

 1
52119-44160F1

ACN1#,SXN15..SU

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),CHAMPAGNE ME.,583

 1
52119-44150B1

ACN1#,SXN15..SU

GRAY ME.,1D2

 1
52119-44160B1

ACN1#,SXN15..SU

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAY ME.,1D2

 1
52119-44150F1

ACN1#,SXN15..SU

CHAMPAGNE ME.,583

 1
52119-44160B0

ACN1#,SXN15..SU

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-44030

ACN1#,SXN15

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-44030

ACN1#,SXN15

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-44030

ACN1#,SXN1#

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-44030

ACN1#,SXN1#

 1
52161C - PIECE, FRONT BUMPER
52161-44010C0

SXN1#

BLACK,042 ,1C0 ,191 ,3J7 ,760 ,8L7

 7
52161-44010C0

ACN1#,SXN15..SU

BLACK,042 ,1C0 ,1D2 ,202 ,583

 5
52161C - PIECE, FRONT BUMPER
52161-44010C0

SXN1#

BLACK,042 ,1C0 ,191 ,3J7 ,760 ,8L7

 7
52161-44010C0

ACN1#,SXN15..SU

BLACK,042 ,1C0 ,1D2 ,202 ,583

 5
52161C - PIECE, FRONT BUMPER
52161-44010C0

SXN1#

BLACK,042 ,1C0 ,191 ,3J7 ,760 ,8L7

 7
52161-44010C0

ACN1#,SXN15..SU

BLACK,042 ,1C0 ,1D2 ,202 ,583

 5
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-44030

ACN1#,SXN1#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-44030

ACN1#,SXN1#

 1
Common parts
90149-60080
90159-50311
90159-60431
90179-06127
Linked diagrams
5102
5302
8102
