SXN15H-AHSSK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )ACN15,SXN15

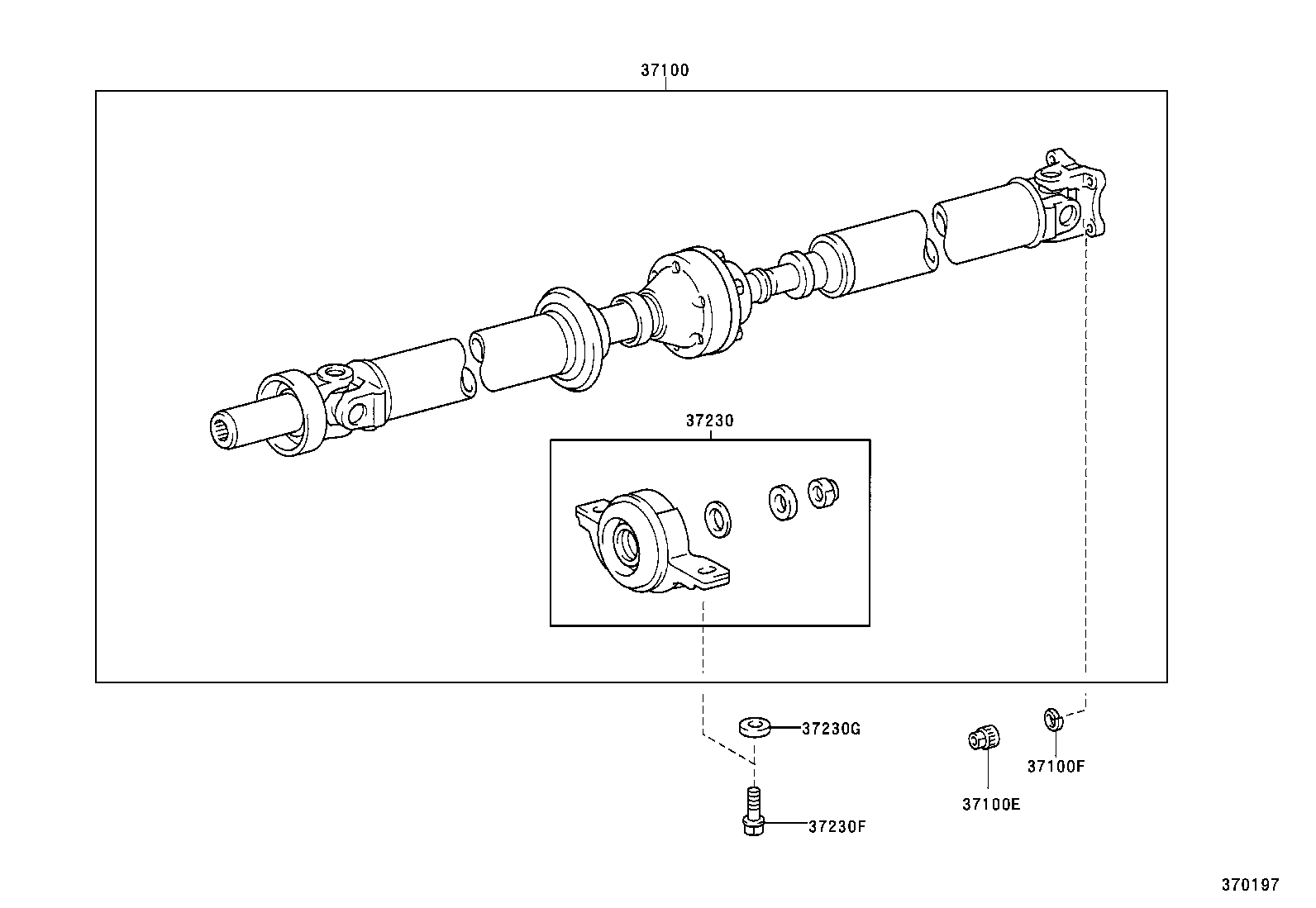

Click highlighted areas on diagram

diagram 37100 37100E 37100F 37230 37230F 37230G
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-44020

ACN15,SXN15

 1
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08268

ACN15,SXN15

 4
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90204-10002

ACN15,SXN15

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-20130

SXN15

 1
37230-29025

ACN15,SXN15

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

ACN15,SXN15

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

ACN15,SXN15

厚さ=4.5

 2
90201-10095

ACN15,SXN15

厚さ=3.2

 2
90201-10084

ACN15,SXN15

厚さ=9.0

 2
90201-10083

ACN15,SXN15

厚さ=6.5

 2
