SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104-0208)SXN15

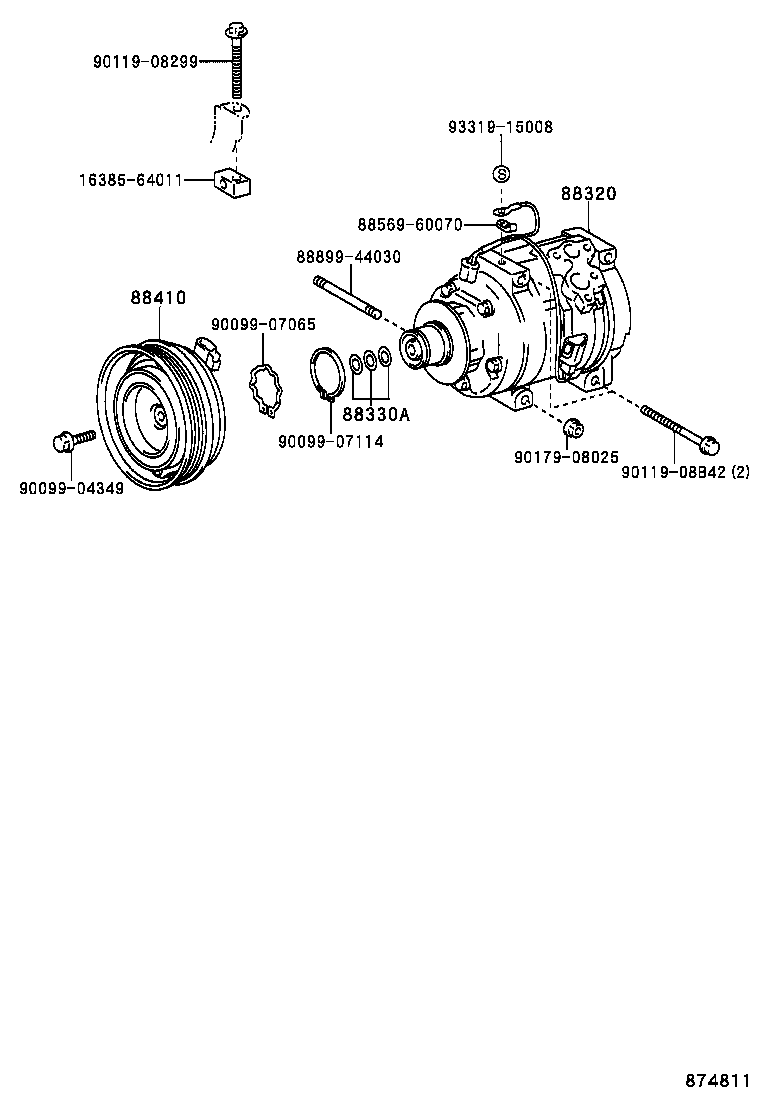

Click highlighted areas on diagram

diagram 1638564011 88320 88330A 88410 8856960070 8889944030 9009904349 9009907065 9009907114 9011908299 9011908B42 9017908025 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-44090

SXN1#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ACN1#,SXN1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-44060

SXN1#

 1
Common parts
16385-64011
88569-60070
88899-44030
90099-04349
90099-07065
90099-07114
90119-08299
90119-08B42
90179-08025
93319-15008
