SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104-0208)SXN15

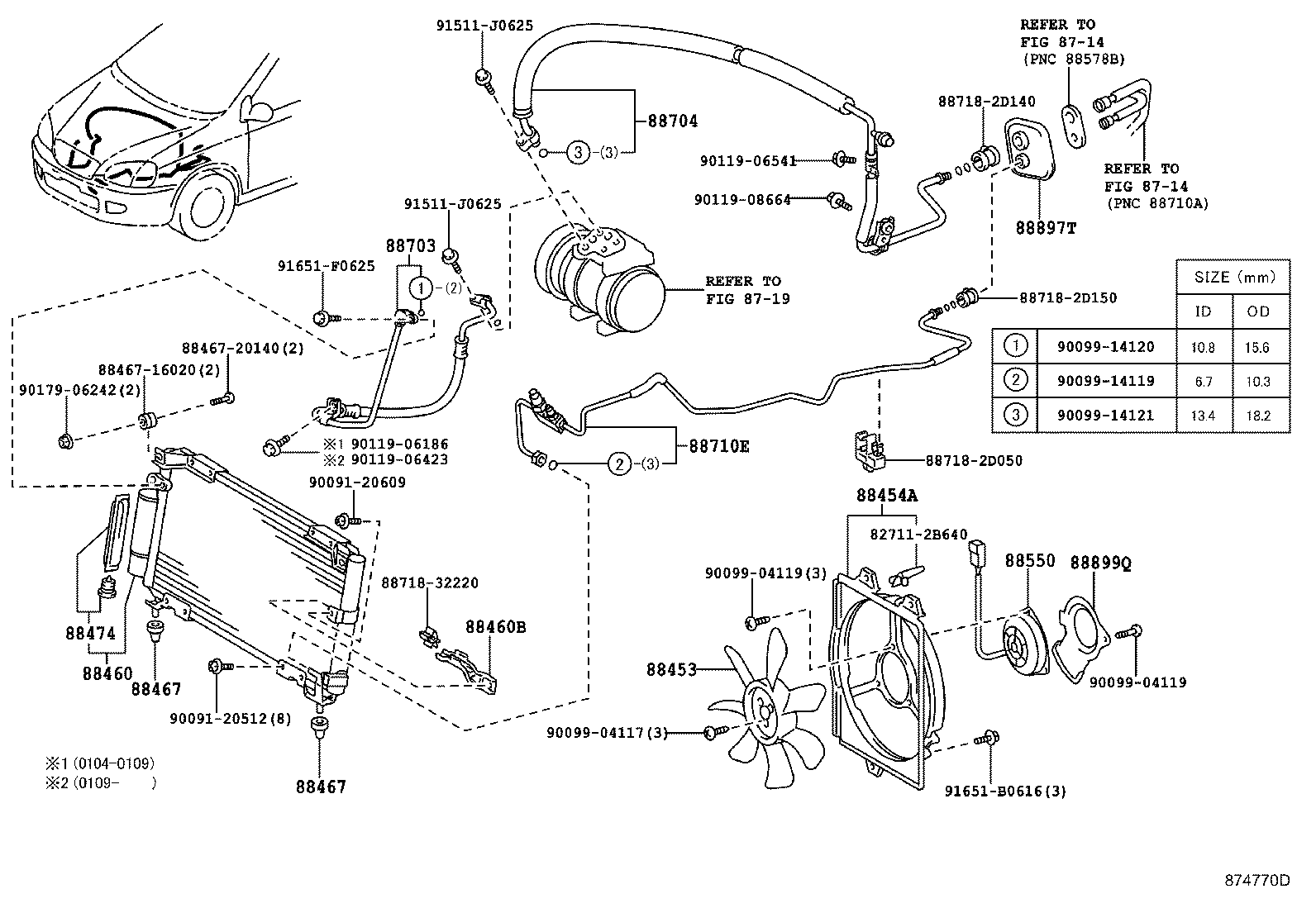

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
ACN1#,SXN1# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 16711-74600 |
ACN10,SXN1# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-44330 |
ACN1#,SXN1# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-44160 |
ACN1#,SXN1# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32060 |
ACN10,SXN1# |
2 | ||
| 88467-20190 |
ACN1#,SXN15 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32060 |
ACN10,SXN1# |
2 | ||
| 88467-20190 |
ACN1#,SXN15 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACN1#,SXN1# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74150 |
ACN1#,SXN1# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-44260 |
SXN15 |
1 | ||
| 88703-44330 |
SXN15 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-44230 |
SXN15 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-44600 |
ACN1#,SXN15 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-44010 |
ACN1#,SXN1# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-74070 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-16020 | ||||
| 88467-20140 | ||||
| 88718-2D050 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06186 | ||||
| 90119-06423 | ||||
| 90119-06541 | ||||
| 90119-08664 | ||||
| 90179-06242 | ||||
| 91511-J0625 | ||||
| 91651-B0616 | ||||
| 91651-F0625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
