SXN15H-AHSQK (2001)
Toyota Nadia
(0104- )

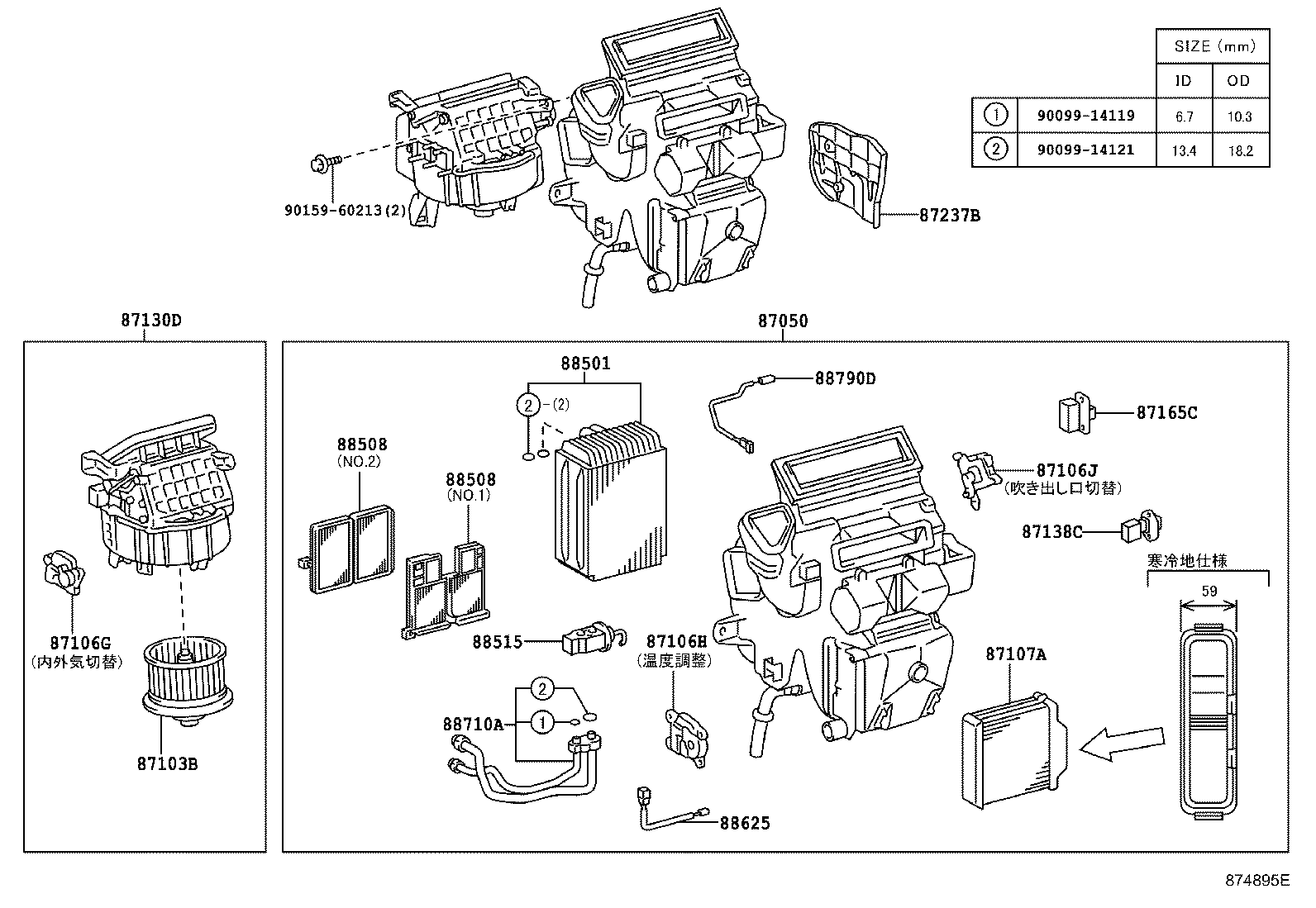

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-44390 |
ACN1#,SXN15 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-44190 |
SXN1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87050-44200 |
SXN1#..EFI ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 87050-44380 |
ACN1#,SXN15 |
1 | ||
| 87050-44180 |
SXN1# ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87050-44210 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33040 |
SXN1#..EFI |
1 | ||
| 87103-44010 |
SXN1#..EFI L ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44010 |
ACN1#,SXN1# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20350 |
ACN1#,SXN1# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20220 |
SXN1# |
1 | ||
| 87106-20400 |
ACN1#,SXN15 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-44080 |
ACN1#,SXN1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-44070 |
ACN1#,SXN1# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44050 |
SXN1#..EFI ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 87130-44040 |
ACN1#,SXN15 |
1 | ||
| 87130-44040 |
SXN1# ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-44020 |
SXN1#..EFI ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 87138-50010 |
SXN1# ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87138-50010 |
ACN1#,SXN15 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
ACN1#,SXN1# |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-44010A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 87237-44010B2 |
ACN1#,SXN1#..NOG,S LT.GRAY,TRIM1# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20291 |
ACN1#,SXN1# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20070 |
ACN1#,SXN1# LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88508-20060 |
ACN1#,SXN1# UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20070 |
ACN1#,SXN1# LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2) |
1 | ||
| 88508-20060 |
ACN1#,SXN1# UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-44010 |
ACN1#,SXN1# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
ACN1#,SXN1# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44280 |
ACN1#,SXN1# |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-44020 |
ACN1#,SXN15 |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60213 | ||||
