SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

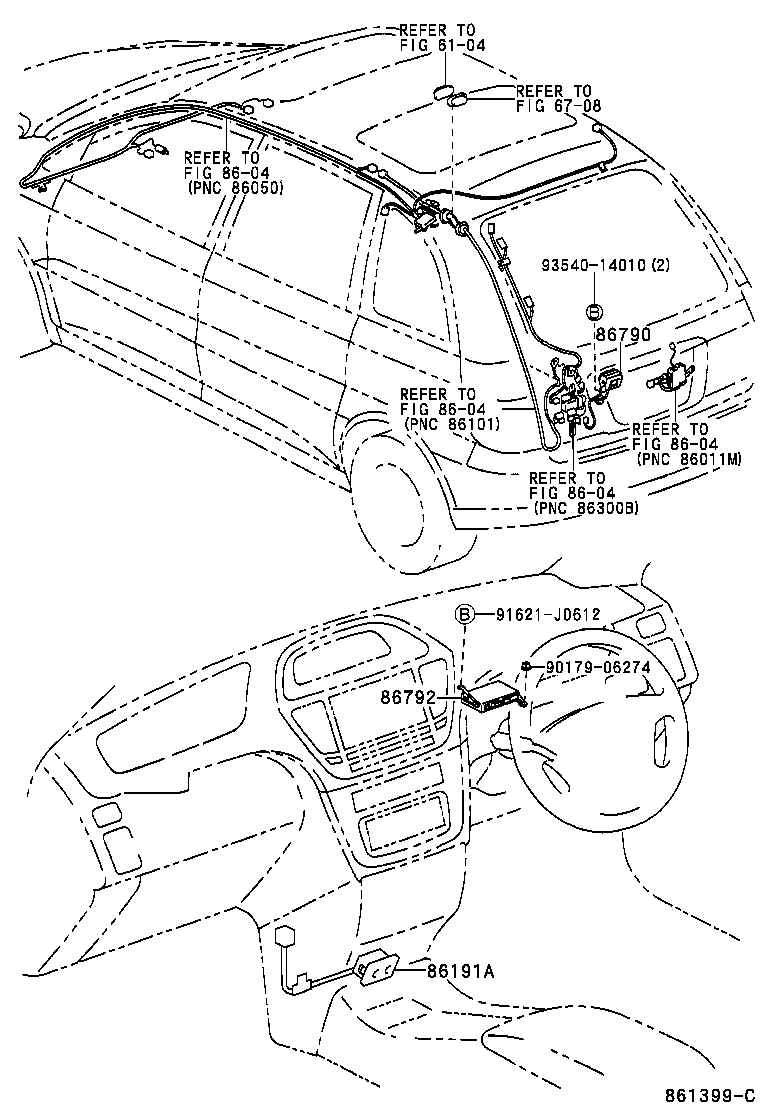

Click highlighted areas on diagram

diagram 6104 6708 8604 8604 8604 8604 86191A 86790 86792 9017906274 91621J0612 9354014010
Part # Description Qty Price
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-44010

ACN1#,SXN1#

 1
86790 - CAMERA ASSY, TELEVISION
86790-44080

ACN1#,SXN15

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-44020

SXN1#

 1
86792-44070

ACN1#,SXN15..SU

 1
Common parts
90179-06274
91621-J0612
93540-14010
Linked diagrams
6104
6708
8604
