SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

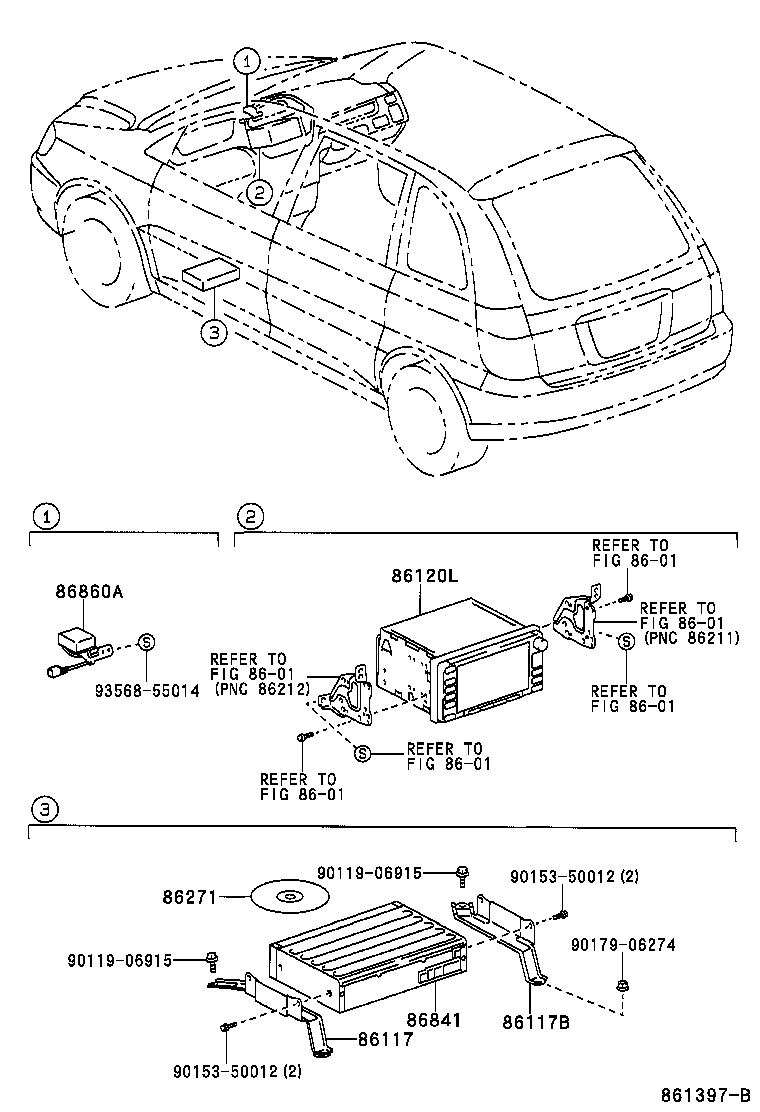

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 86117 86117B 86120L 86271 86841 86860A 9011906915 9011906915 9015350012 9015350012 9017906274 9356855014
Part # Description Qty Price
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-44120

ACN1#,SXN15

 1
86117B - BRACKET, TELEVISION DISPLAY, B
86117-44130

ACN1#,SXN15

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-44040

SXN1#

MATSUSHITA,ID=56034

 1
86271 - DISC, DISC PLAYER
86271-44020

ACN1#,SXN15

 1
86841 - COMPUTER, NAVIGATION
86841-44010

ACN1#,SXN15

 1
86860A - ANTENNA, NAVIGATION
86860-44040

ACN1#,SXN15

 1
Common parts
90119-06915
90153-50012
90179-06274
93568-55014
Linked diagrams
8601
