SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )ACN15,SXN15

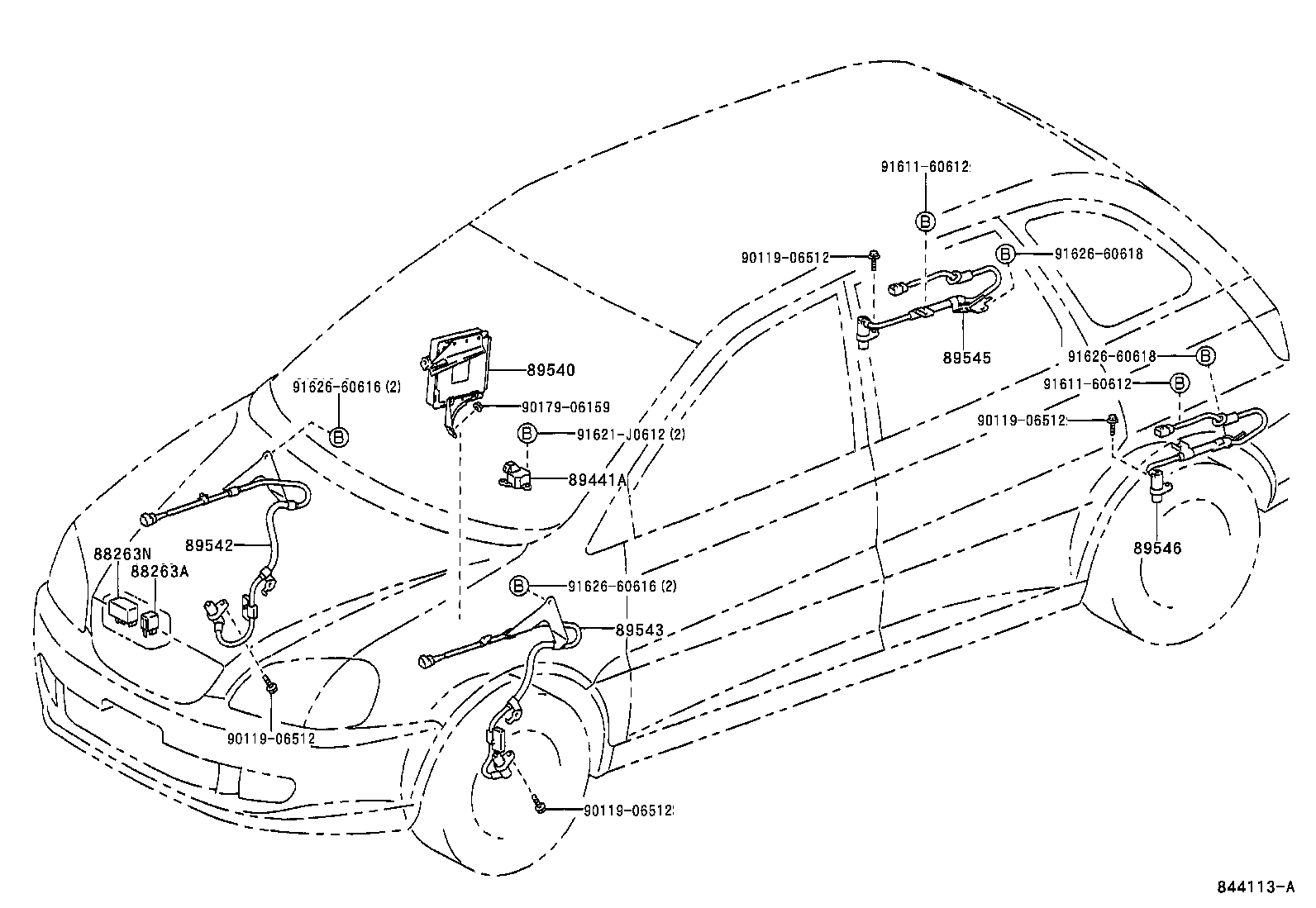

Click highlighted areas on diagram

diagram 88263A 88263N 89441A 89540 89542 89543 89545 89546 9011906512 9011906512 9011906512 9011906512 9017906159 9161160612 9161160612 91621J0612 9162660616 9162660616 9162660618 9162660618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24030

SXN1#

 1
88263-32070

ACN15,SXN15

 1
88263N - RELAY, ABS MOTOR
88263-30150

ACN15,SXN15

 1
89441A - SENSOR, DECELERATION
89441-42010

ACN15,SXN15

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-44150

SXN15..SU

 1
89541-44030

SXN15

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20130

SXN1#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20130

SXN1#

 1
Common parts
90119-06512
90179-06159
91611-60612
91621-J0612
91626-60616
91626-60618
