SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9807-0208)SXN15

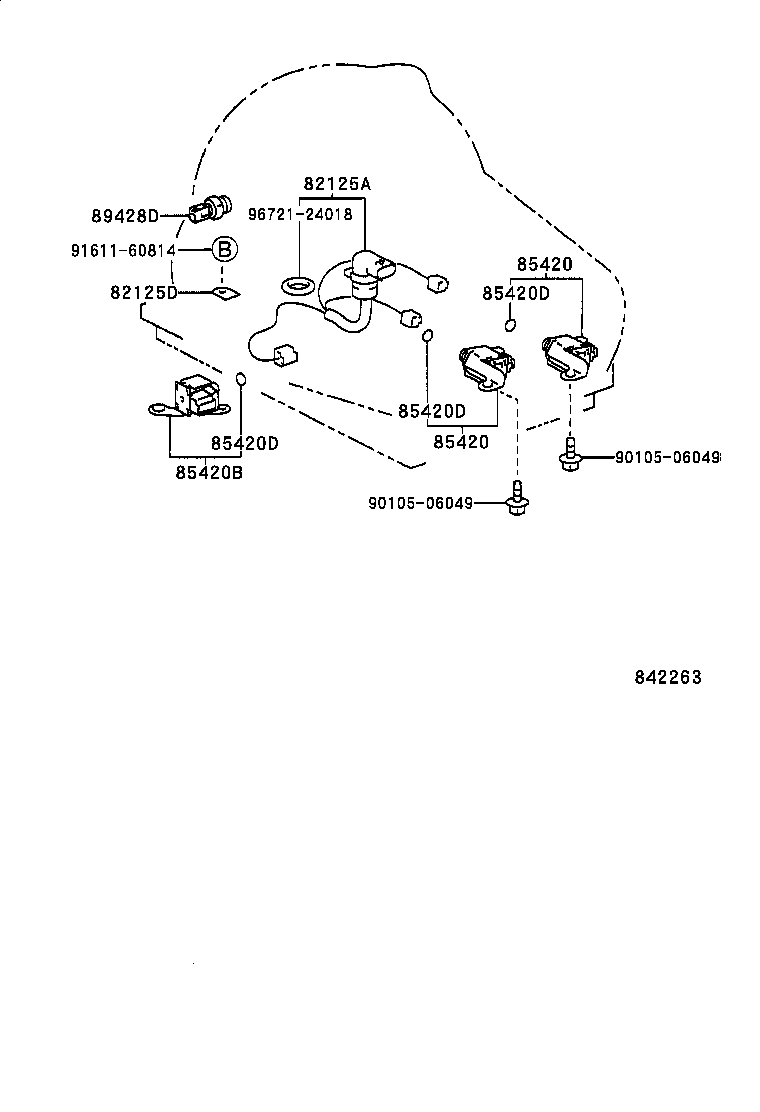

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-20220 |
SXN15 |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
SXN15 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21090 |
SXN15 DENSO |
2 | ||
| 85420-21100 |
SXN15 AISIN |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21090 |
SXN15 DENSO |
2 | ||
| 85420-21100 |
SXN15 AISIN |
2 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21070 |
SXN15 |
1 | ||
| 85420-21080 |
SXN15 AISIN |
1 | ||
| 85420-21070 |
SXN15 DENSO |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXN1#..EFI |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXN1#..EFI |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
SXN1#..EFI |
3 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-12140 |
SXN15 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 91611-60814 | ||||
| 96721-24018 | ||||
