SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0208)EFI

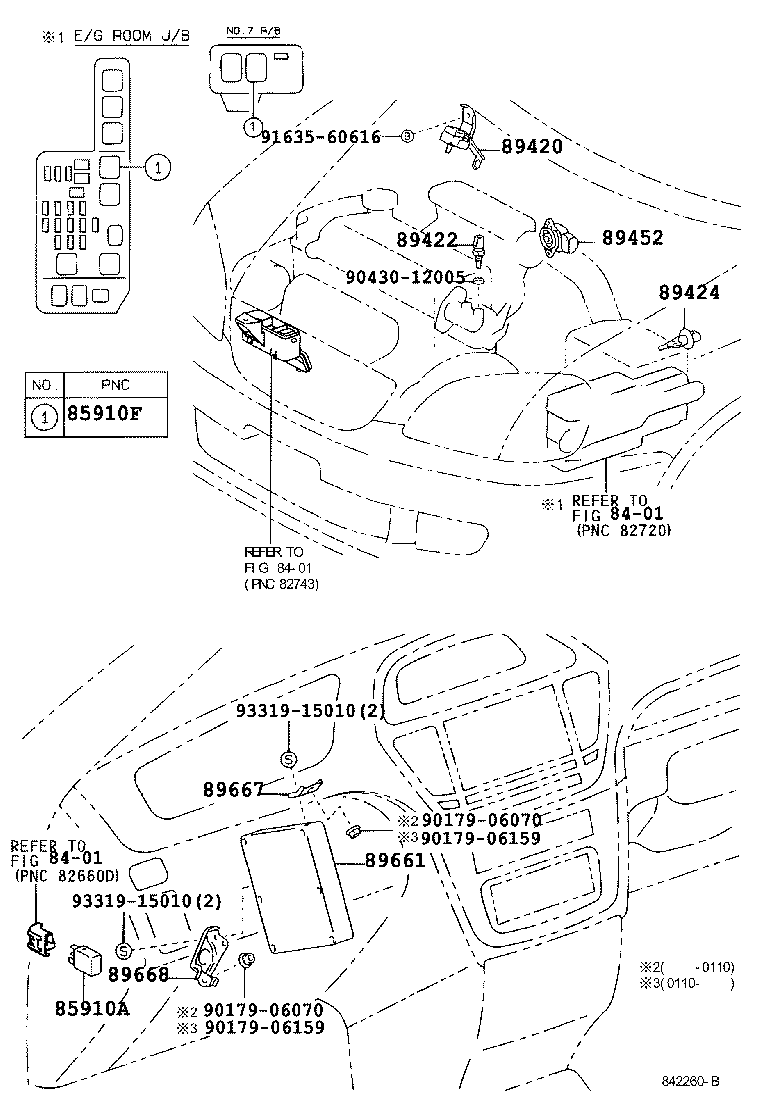

Click highlighted areas on diagram

diagram 8401 8401 8401 85910A 85910F 89420 89422 89424 89452 89661 89667 89668 9017906070 9017906070 9017906159 9017906159 9043012005 9163560616 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

ACN1#,SXN1#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

SXN10..EFI;ACN1#,SXN15

 1
89420 - SENSOR ASSY, VACUUM
89420-44020

SXN10..EFI;ACN1#,SXN15

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-16010

SXN10..EFI;ACN10,SXN15

DENSO

 1
89422-22030

SXN1#..EFI

NTC

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

ACN1#,SXN1#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

SXN1#..EFI

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-44030

SXN1#..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-44060

SXN1#..EFI

 1
Common parts
90179-06070
90179-06159
90430-12005
91635-60616
93319-15010
Linked diagrams
8401
