SXN15H-AHSQK (2001)
Toyota Nadia

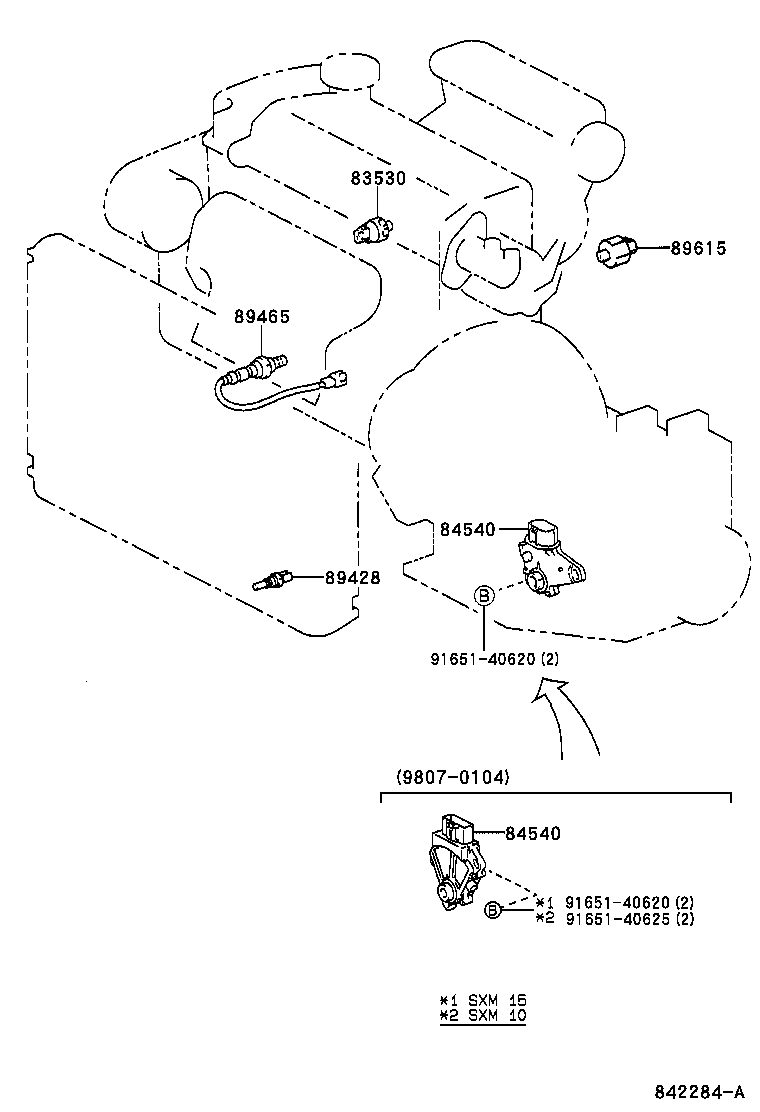

ILLUST NO. 1 OF 6(9807-0208)EFI
ｴﾝｼﾞﾝ & ﾄﾗﾝｽ ﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ACN1#,SXN1# YAZAKI |
1 | ||
| 83530-28020 |
ACN1#,SXN1# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
SXN15 |
1 | ||
| 84540-52010 |
SXN15 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
SXN15 |
1 | ||
| 84540-52010 |
SXN15 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
SXN1#..EFI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-44020 |
SXN1#..EFI |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-32030 |
SXN15 DENSO |
1 | ||
| 89615-20030 |
SXN1# TOYOTA |
1 | ||
| 89615-33020 |
SXN1# DENSO |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

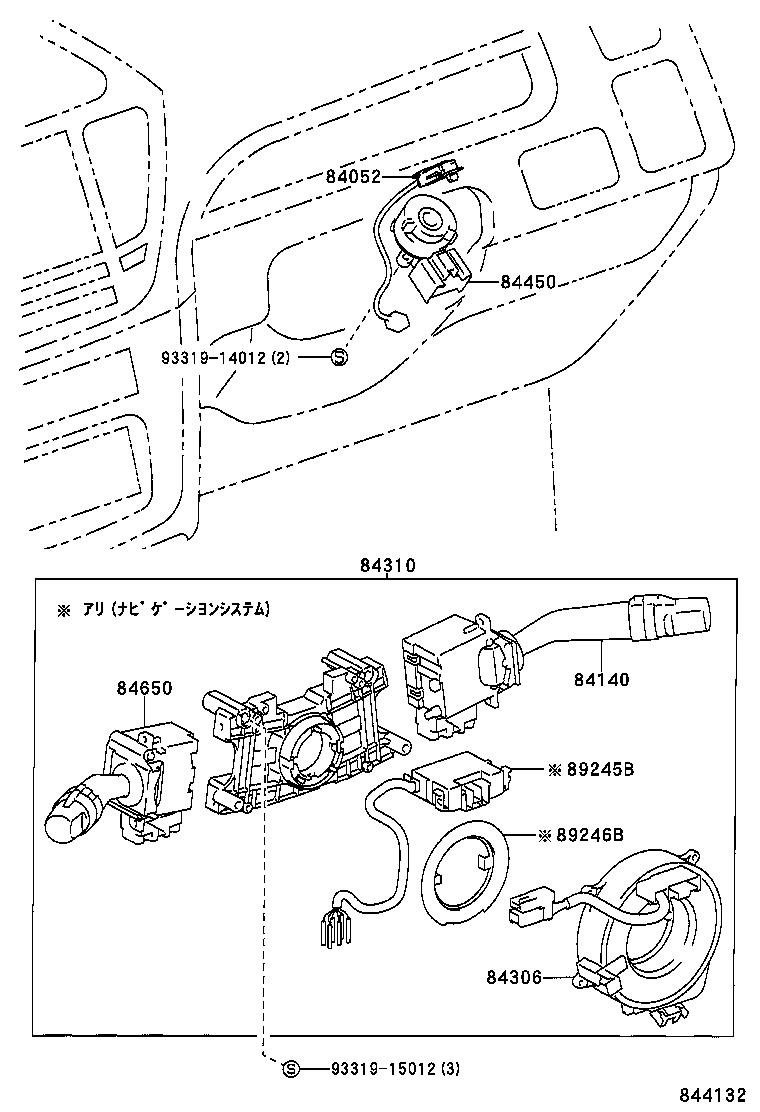

ILLUST NO. 5 OF 6(0104- )
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
ACN1#,SXN1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
ACN1#,SXN1#..NOG,S,X |
1 | ||
| 84140-20590 |
ACN1#,SXN1# ｱﾘ(ｺﾝﾗｲﾄ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33070 |
SXN15 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-44170 |
SXN15 ｱﾘ(ｺﾝﾗｲﾄ) OR ｱﾘ(ｺﾝﾗｲﾄ & ﾘﾔﾜｲﾊﾟ);ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｺﾝﾗｲﾄ) |
1 | ||
| 84310-44090 |
ACN15,SXN15..S,X |
1 | ||
| 84310-44020 |
ACN1#,SXN15 ｱﾘ(ｺﾝﾗｲﾄ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 84310-44160 |
SXN15 |
1 | ||
| 84310-44180 |
SXN15 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACN1#,SXN1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44040 |
SXN1# |
1 | ||
| 84652-44050 |
ACN1#,SXN15 |
1 | ||
| 84652-44050 |
SXN1# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-22030 |
ACN1#,SXN15 |
1 | ||
| 89246B - DISC, SENSOR STEERING | ||||
| 89246-44020 |
ACN1#,SXN15 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

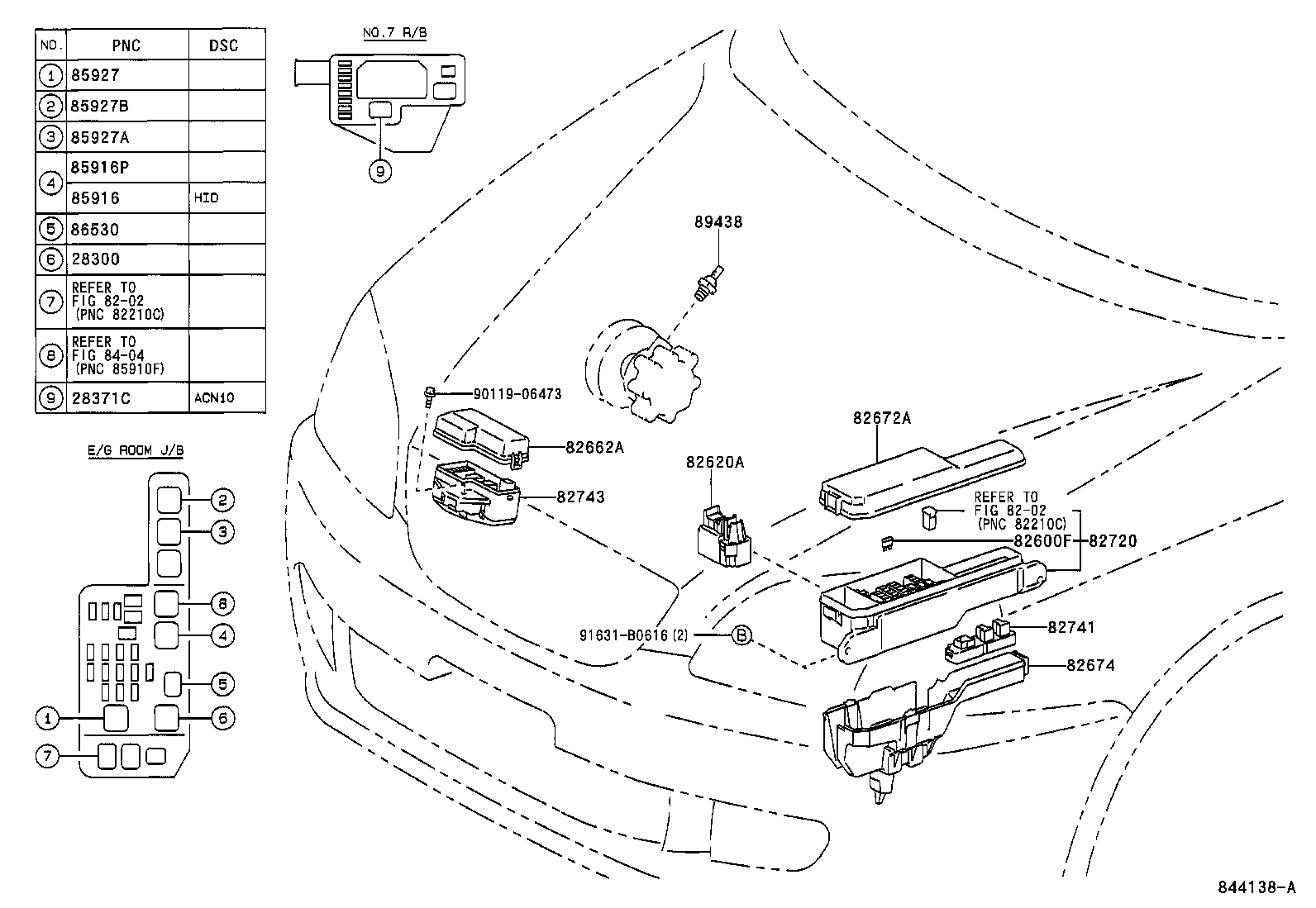

ILLUST NO. 2 OF 6(0104- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1AZFSE,3SF#..ACN1#,SXN1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ACN1#,SXN1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09012 |
ACN1#,SXN1# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACN1#,SXN1# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
ACN1#,SXN1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
ACN1#,SXN1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09013 |
ACN1#,SXN1# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACN15,SXN15 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20170 |
ACN1#,SXN1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-44070 |
SXN15;SXN10..D4 |
1 | ||
| 82662-44130 |
ACN1#,SXN15 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-44050 |
SXN15 |
1 | ||
| 82672-44040 |
SXN1# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-20040 |
ACN1#,SXN1# |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-44040 |
ACN1#,SXN1# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-44030 |
ACN10,SXN1# |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-44090 |
ACN1#,SXN15 |
1 | ||
| 82743-44060 |
SXN15;SXN10..D4 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-30060 |
ACN1#,SXN15 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
ACN1#,SXN1#..L,NOG,X |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
ACN1#,SXN1# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACN1#,SXN1# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
ACN1#,SXN1# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 90119-06473 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
