SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

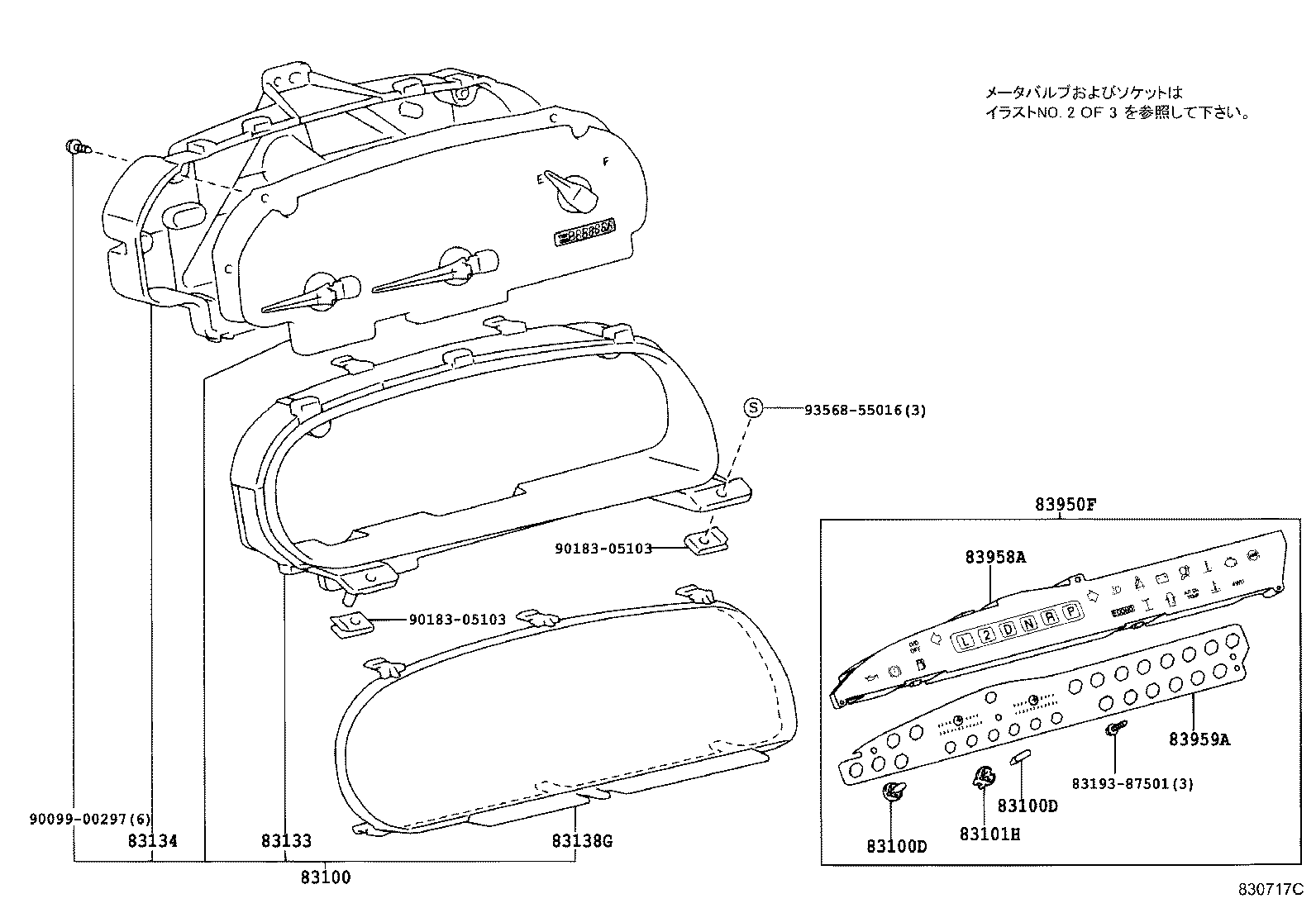

ILLUST NO. 1 OF 3(0104- )
Click highlighted areas on diagram
ｽﾋﾟｰﾄﾞﾒｰﾀ & ｲﾝｼﾞｹｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-44610 |
SXN15 DENSO |
1 | ||
| 83100D - BULB, COMBINATION METER, NO.2 | ||||
| 83119-24070 |
ACN10,SXN15 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-24010 |
ACN10,SXN1# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
ACN10,SXN1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24690 |
SXN1# 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83100D - BULB, COMBINATION METER, NO.2 | ||||
| 83119-24070 |
ACN10,SXN15 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 83109-24010 |
ACN10,SXN1# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
ACN10,SXN1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-24690 |
SXN1# 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83101H - SOCKET SUB-ASSY, COMBINATION METER BULB, NO.2 | ||||
| 83101-14040 |
ACN10,SXN1# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-44600 |
ACN1#,SXN15 |
1 | ||
| 83811-44250 |
SXN1# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44250 |
SXN1# |
1 | ||
| 83821-44600 |
ACN1#,SXN15 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-44250 |
SXN1# |
1 | ||
| 83852-44600 |
ACN1#,SXN15 |
1 | ||
| 83950F - LAMP ASSY, TELLTALE | ||||
| 83950-44050 |
SXN15 |
1 | ||
| 83950-44070 |
ACN15,SXN15 |
1 | ||
| 83958A - CASE, TELLTALE LAMP | ||||
| 83958-44040 |
ACN1#,SXN1# |
1 | ||
| 83959A - PLATE, TELLTALE LAMP CIRCUIT | ||||
| 83959-44040 |
SXN1# |
1 | ||
| 83959-44060 |
ACN1#,SXN15 |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 90099-00297 | ||||
| 90183-05103 | ||||
| 93568-55016 | ||||
