SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9807-0208)EFI

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82123 8271124420 8271137050 8271195411 8271520800 8271533140 8271544060 8271544070 8271544080 8271544140 8271544190 9011906915 9162140814 91621J0612 91621J0612 91621J0612 9162660616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-44480

SXN15..SU

 1
82123 - WIRE, ENGINE, NO.3
82123-44040

ACN1#,SXN1#

 1
Common parts
82711-24420
82711-37050
82711-95411
82715-20800
82715-33140
82715-44060
82715-44070
82715-44080
82715-44140
82715-44190
90119-06915
91621-40814
91621-J0612
91626-60616

ILLUST NO. 8 OF 9(9807-0208)SXN1#

Click highlighted areas on diagram

ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ

diagram 82001 9010510197 9011906390
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07343

SXN1#..EFI

 1
Common parts
90105-10197
90119-06390

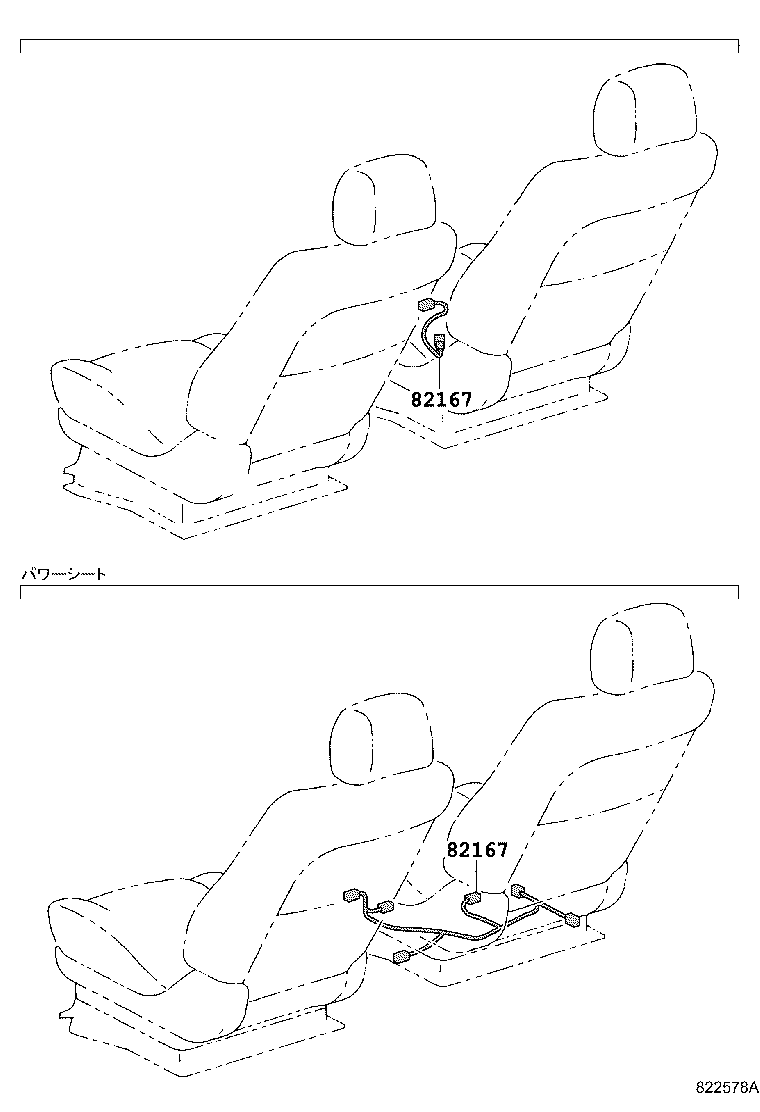

ILLUST NO. 7 OF 9(0104- )

Click highlighted areas on diagram

ｼ-ﾄ ﾜｲﾔ

diagram 82167 82167
Part # Description Qty Price
82167 - WIRE, SEAT, NO.1
82167-44070

ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X

 1
82167-44060

SXN1#

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ)

 1
82167-44090

ACN1#,SXN15..L

ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)

 1
82167 - WIRE, SEAT, NO.1
82167-44070

ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X

 1
82167-44060

SXN1#

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ)

 1
82167-44090

ACN1#,SXN15..L

ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)

 1
