SXN15H-AHSQK (2001)
Toyota Nadia

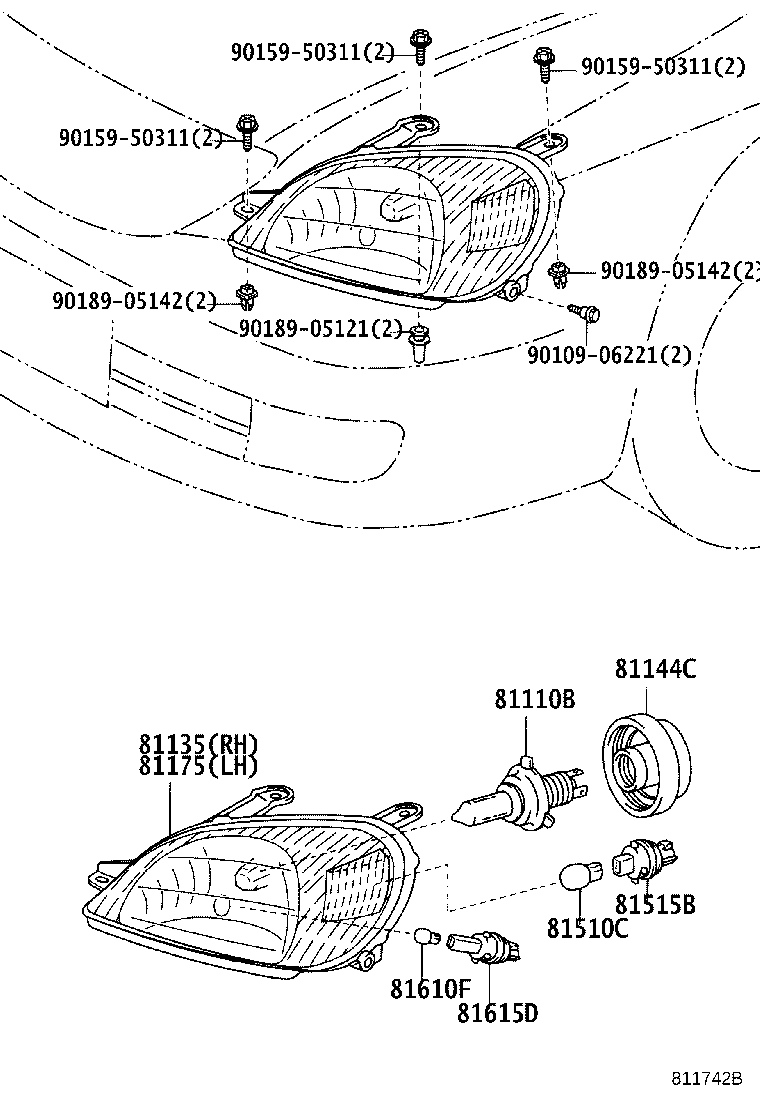

ILLUST NO. 1 OF 2(0104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22009 |
ACN1#,SXN15..L,X 12V 60/55W,*HAL |
2 | ||
| 90981-22004 |
SXN1# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-44170 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-44160 |
ACN1#,SXN15..L,X |
1 | ||
| 81130-44100 |
SXN1# |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-60053 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 90075-65002 |
ACN1#,SXN1#..L,NOG,X |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44160 |
ACN1#,SXN15..L,X |
1 | ||
| 81070-44170 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-44100 |
SXN1# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACN1#,SXN15 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACN1#,SXN15 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
SXN1# 12V 5W |
2 | ||
| 90981-12010 |
ACN1#,SXN15 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60046 |
ACN1#,SXN15 |
2 | ||
| 99159-10228 |
SXN1# |
2 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90159-50311 | ||||
| 90189-05121 | ||||
| 90189-05142 | ||||

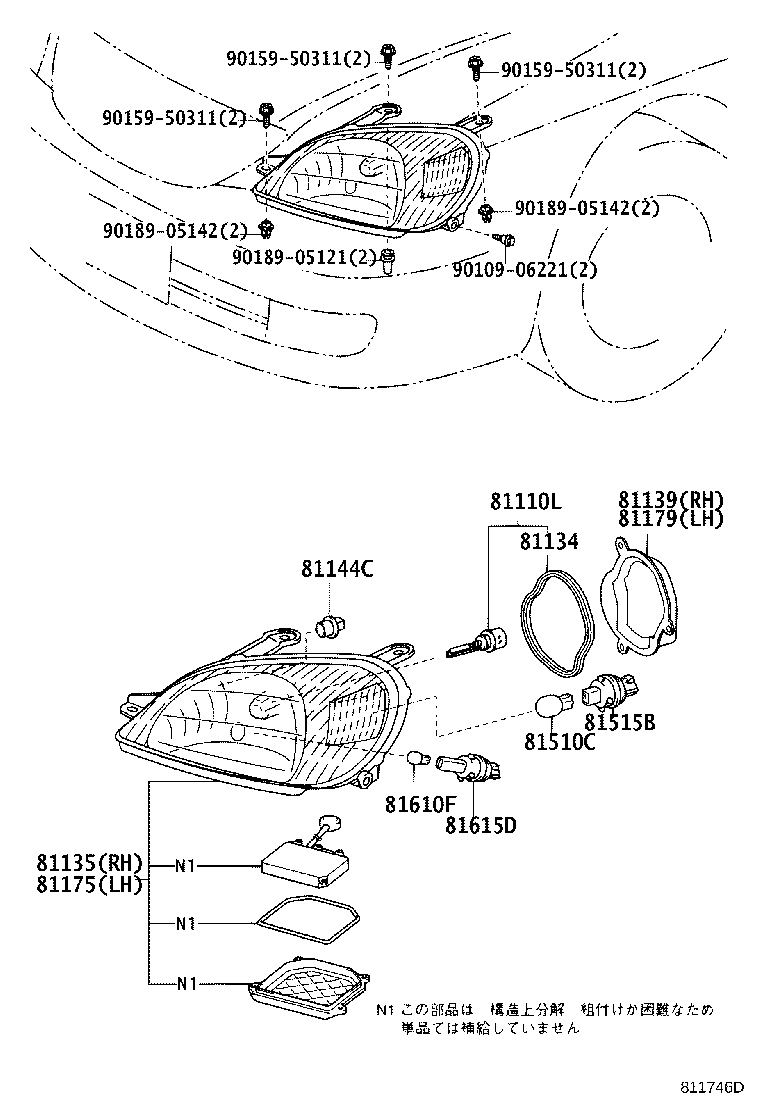

ILLUST NO. 1 OF 2(0104- )
ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 81128-44170 |
ACN1#,SXN15 12V 35W |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68002 |
ACN1#,SXN15 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-44170 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-44160 |
ACN1#,SXN15..L,X |
1 | ||
| 81130-44100 |
SXN1# |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-44170 |
ACN1#,SXN15 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-60053 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 90075-65002 |
ACN1#,SXN1#..L,NOG,X |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44160 |
ACN1#,SXN15..L,X |
1 | ||
| 81070-44170 |
ACN1#,SXN15 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-44100 |
SXN1# |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 81179-44170 |
ACN1#,SXN15 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACN1#,SXN15 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACN1#,SXN15 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
SXN1# 12V 5W |
2 | ||
| 90981-12010 |
ACN1#,SXN15 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 99159-10228 |
SXN1# |
2 | ||
| 90075-60046 |
ACN1#,SXN15 |
2 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90159-50311 | ||||
| 90189-05121 | ||||
| 90189-05142 | ||||

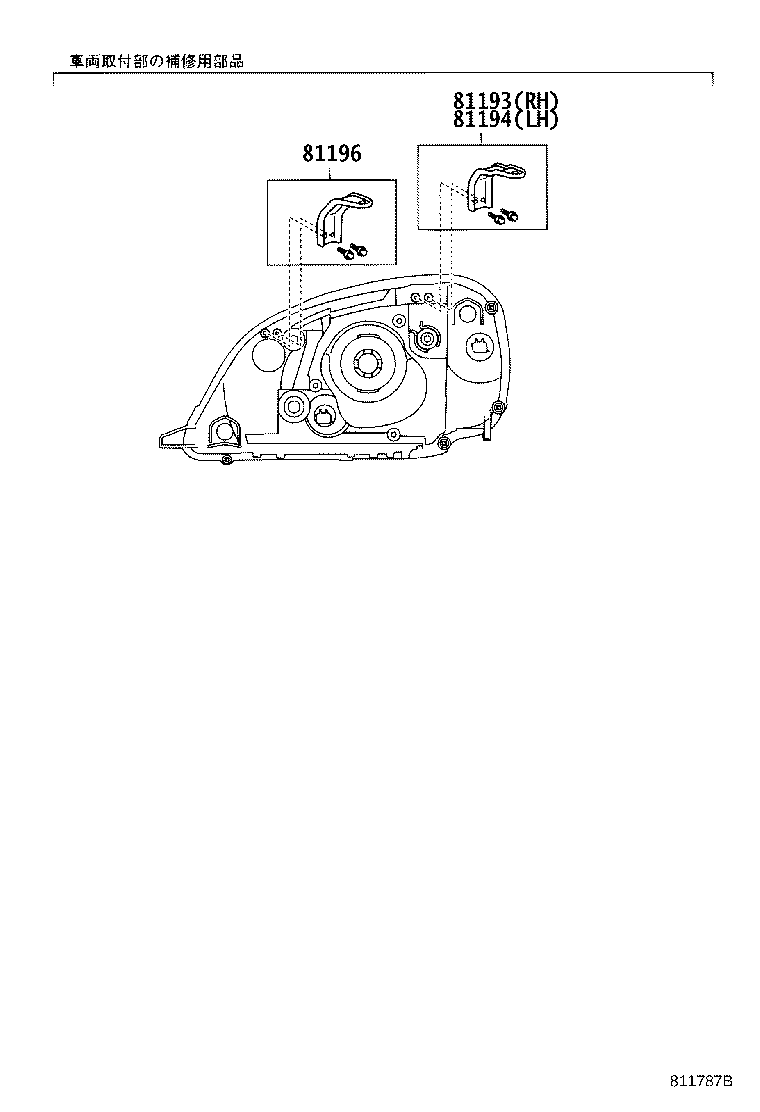

ILLUST NO. 2 OF 2(0104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44050 |
ACN1#,SXN15 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44050 |
ACN1#,SXN15 |
1 | ||
| 81196 - RETAINER, HEADLAMP | ||||
| 81196-44030 |
ACN1#,SXN15 |
2 | ||
