SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0208)EFI

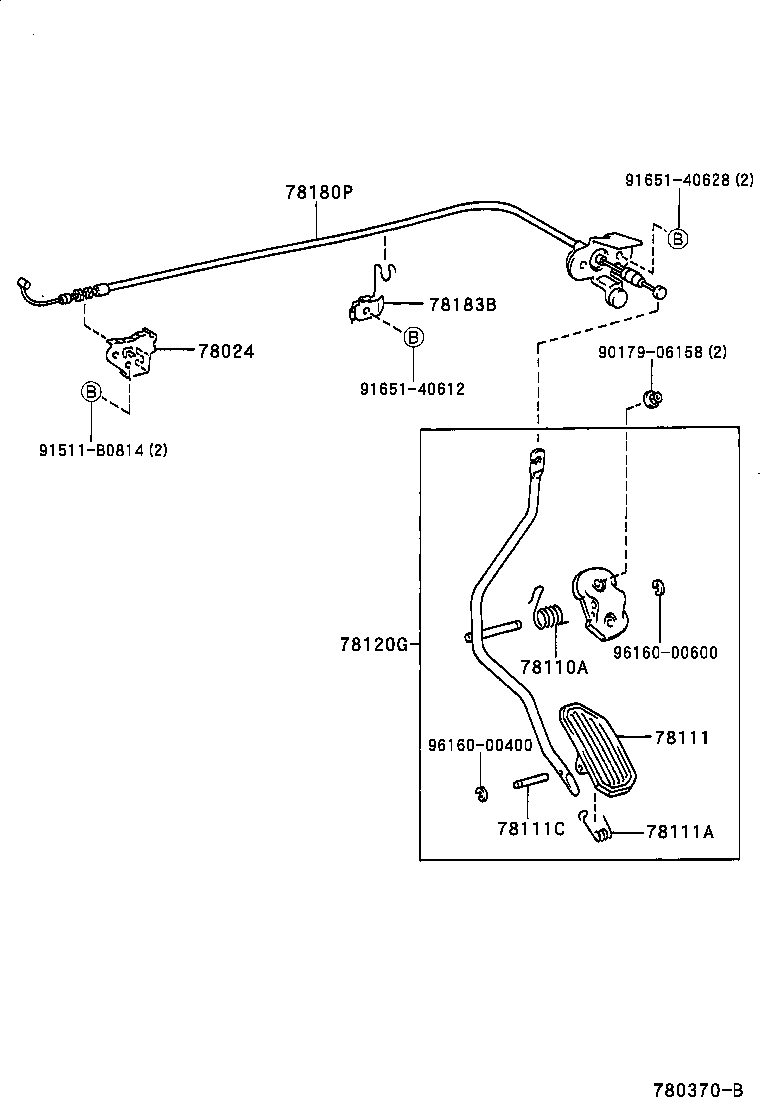

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 9017906158 91511B0814 9165140612 9165140628 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-44020

SXN1#..EFI

 1
78111 - PEDAL, ACCELERATOR
78111-20050

ACN1#,SXN1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

ACN1#,SXN1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

ACN1#,SXN1#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-44010

SXN1#..EFI

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-44010

SXN1#

 1
Common parts
90179-06158
91511-B0814
91651-40612
91651-40628
96160-00400
96160-00600
