SXN15H-AHSQK (2001)
Toyota Nadia
ILLUST NO. 2 OF 2(0104- )L,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-44030 |
ACN1#,SXN15..L,X |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-44010B0 |
ACN1#,SXN1#..NOG,S LT. GRAY,TRIM1# |
1 | ||
| 71701-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-44010 |
ACN1#,SXN15..L,X |
9 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-44350A0 |
ACN1#,SXN15..L ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44310B0 |
ACN1#,SXN15..S ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-44300A0 |
ACN1#,SXN15..X ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 72345F - PIPE, RECLINING CONNECTING, RH | ||||
| 72345-44150 |
ACN1#,SXN15..L,X |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-44050A1 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 72510G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH | ||||
| 72510-44020 |
ACN1#,SXN15..L,X |
1 | ||
| 72530C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER RH | ||||
| 72530-44030 |
ACN1#,SXN15..L,X |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-32010A1 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-44210A2 |
ACN1#,SXN15..L IVORY,TRIM0# |
1 | ||
| 72830-44200A1 |
ACN1#,SXN15..X IVORY,TRIM0# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-44010 |
ACN1#,SXN15..L,X NO.1 |
1 | ||
| 72839-44030 |
ACN1#,SXN15..L,X NO.2 |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-44010 |
ACN1#,SXN15..L,X NO.1 |
1 | ||
| 72839-44030 |
ACN1#,SXN15..L,X NO.2 |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-44430B1 |
ACN1#,SXN15..S ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-44450A1 |
ACN1#,SXN15..X ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79013-44460A1 |
ACN1#,SXN15..L ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-44430B1 |
ACN1#,SXN15..S ***,ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-44450A1 |
ACN1#,SXN15..X ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79140-44460A1 |
ACN1#,SXN15..L ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-44040 |
SXN1# |
1 | ||
| 79175-44100 |
ACN1#,SXN15..S |
1 | ||
| 79175-44110 |
ACN1#,SXN15..L,X |
1 | ||
| Common parts | ||||
| 72702-44100 | ||||
| 90386-06009 | ||||
| 91515-81020 | ||||
| 91515-C0818 | ||||
| 93530-55014 | ||||
| 94185-60600 | ||||

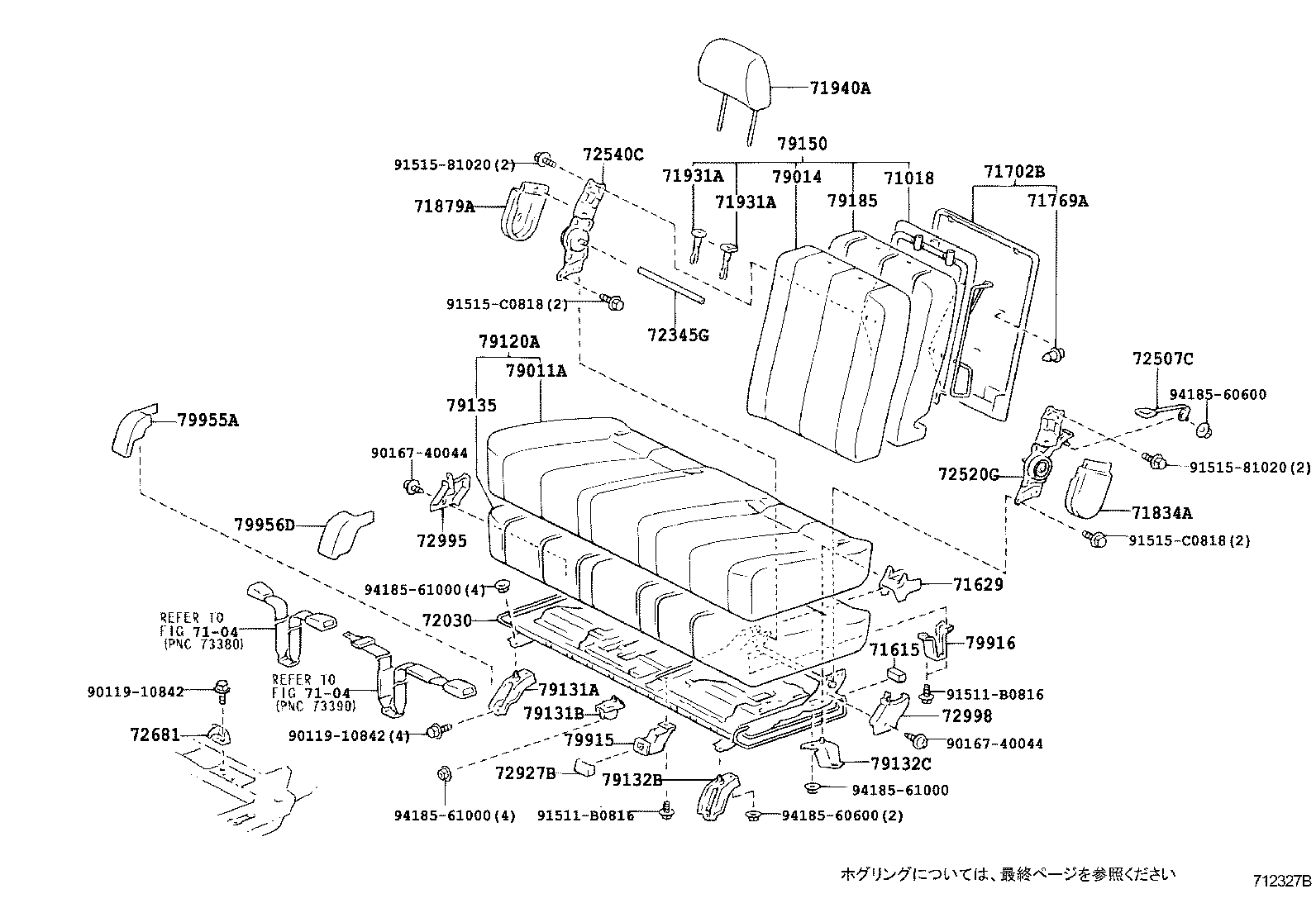

ILLUST NO. 1 OF 2(0104- )L,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-44020 |
ACN1#,SXN15..L,X |
1 | ||
| 71615 - PAD, REAR SEAT CUSHION, E | ||||
| 71615-44020 |
ACN1#,SXN15..L,X |
2 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-44020A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71702-44010B0 |
ACN1#,SXN1#..NOG,S LT. GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-44010 |
ACN1#,SXN15..L,X |
9 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-44030A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030A1 |
ACN1#,SXN15..L,X ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-44350A0 |
ACN1#,SXN15..L ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44310B0 |
ACN1#,SXN15..S ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-44300A0 |
ACN1#,SXN15..X ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-44030 |
ACN1#,SXN15..L,X |
1 | ||
| 72345G - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-44160 |
ACN1#,SXN15..L,X |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-44050A1 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 72520G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH | ||||
| 72520-44020 |
ACN1#,SXN15..L,X |
1 | ||
| 72540C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER LH | ||||
| 72540-44030 |
ACN1#,SXN15..L,X |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-44010 |
ACN1#,SXN15..L,X |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-44010A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-44020A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-44020A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-44440A0 |
ACN1#,SXN15..L IVORY,TRIM0# |
1 | ||
| 79011-44430A0 |
ACN1#,SXN15..X IVORY,TRIM0# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-44360B1 |
ACN1#,SXN15..S ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79014-44380A1 |
ACN1#,SXN15..X ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79014-44390A1 |
ACN1#,SXN15..L ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-44420A0 |
ACN1#,SXN15..X ***,IVORY,TRIM0# |
1 | ||
| 79120-44430A0 |
ACN1#,SXN15..L ***,IVORY,TRIM0# |
1 | ||
| 79131A - LEG, NO.1 SEAT, FRONT RH | ||||
| 79131-44040 |
ACN1#,SXN15..L,X |
1 | ||
| 79131B - LEG, NO.1 SEAT, REAR RH | ||||
| 79131-44050 |
ACN1#,SXN15..L,X |
1 | ||
| 79132B - LEG, NO.1 SEAT, FRONT LH | ||||
| 79132-44040 |
ACN1#,SXN15..L,X |
1 | ||
| 79132C - LEG, NO.1 SEAT, REAR LH | ||||
| 79132-44050 |
ACN1#,SXN15..L,X |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-44080 |
ACN1#,SXN15..L,X |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-44360B1 |
ACN1#,SXN15..S ***,ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-44380A1 |
ACN1#,SXN15..X ***,ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79150-44390A1 |
ACN1#,SXN15..L ***,ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-44060 |
ACN1#,SXN15..S |
1 | ||
| 79185-44070 |
ACN1#,SXN15..L,X |
1 | ||
| 79185-44030 |
SXN1# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-44020 |
ACN1#,SXN15..L,X |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 79916-44020 |
ACN1#,SXN15..L,X |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-44060A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 79955-44040B0 |
ACN1#,SXN1#..NOG,S LT.GRAY,TRIM1# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-44050A0 |
ACN1#,SXN15..L,X IVORY,TRIM0# |
1 | ||
| 79956-44040B0 |
ACN1#,SXN1#..NOG,S LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10842 | ||||
| 90167-40044 | ||||
| 91511-B0816 | ||||
| 91515-81020 | ||||
| 91515-C0818 | ||||
| 94185-60600 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
