SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )

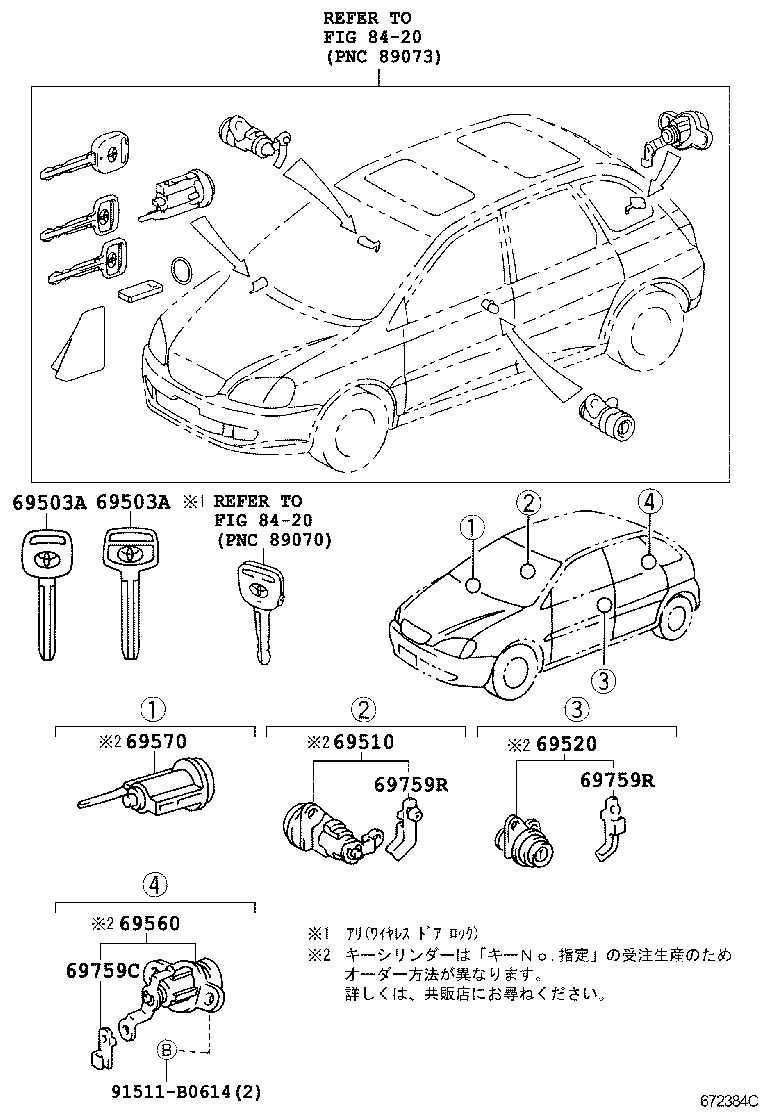

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
SXN1# ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
SXN1# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00186 |
ACN1#,SXN15 ﾏｽﾀｰｷｰ |
3 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
SXN1# ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
SXN1# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00186 |
ACN1#,SXN15 ﾏｽﾀｰｷｰ |
3 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-44010 |
ACN1#,SXN15 |
1 | ||
| 69510-44010 |
SXN1# |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-44020 |
ACN1#,SXN15 |
1 | ||
| 69520-44020 |
SXN1# |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-44040 |
SXN1#..SU |
1 | ||
| 69560-44040 |
ACN1#,SXN15 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-44030 |
SXN1# |
1 | ||
| 69570-44030 |
ACN1#,SXN15 |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24090 |
SXN1# |
1 | ||
| 69759-24090 |
ACN1#,SXN15 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-44020 |
SXN1# 左側 |
1 | ||
| 69759-44010 |
SXN1# 右側 |
1 | ||
| 69759-44020 |
ACN1#,SXN15 左側 |
1 | ||
| 69759-44010 |
ACN1#,SXN15 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-44020 |
SXN1# 左側 |
1 | ||
| 69759-44010 |
SXN1# 右側 |
1 | ||
| 69759-44020 |
ACN1#,SXN15 左側 |
1 | ||
| 69759-44010 |
ACN1#,SXN15 右側 |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8420 | ||||
