SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0104- )

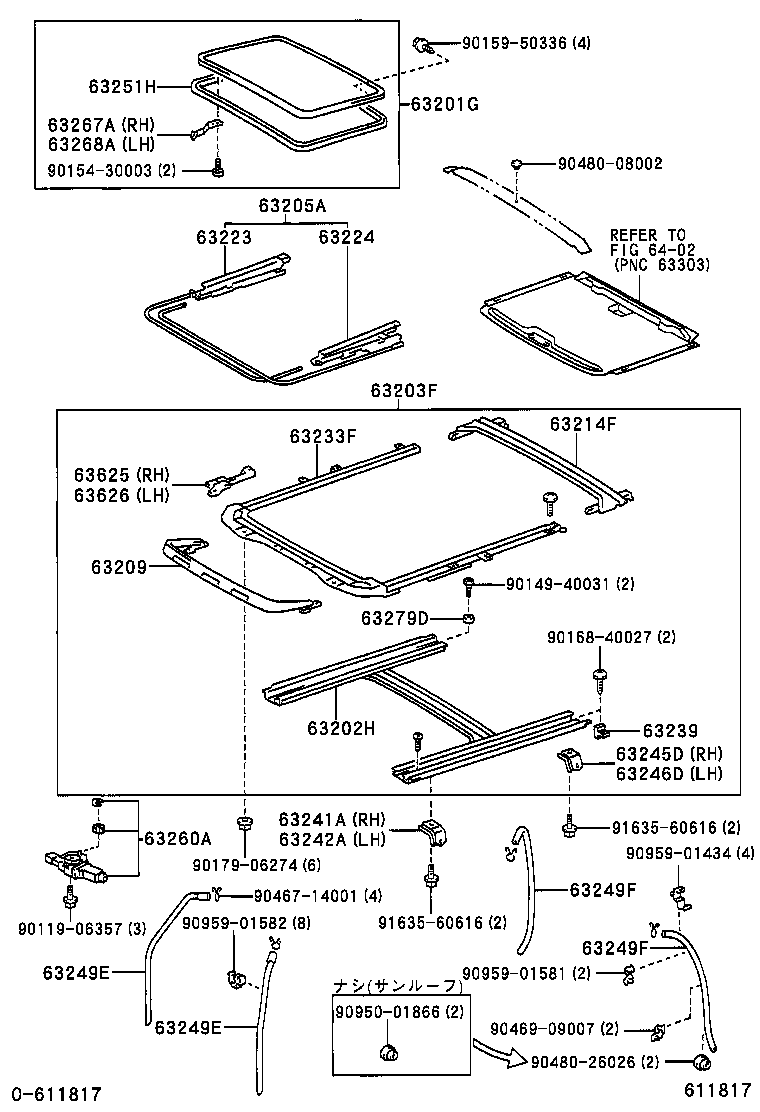

Click highlighted areas on diagram

ﾑ-ﾝﾙ-ﾌ

diagram 63201G 63202H 63203F 63205A 63209 63214F 63223 63224 63233F 63239 63241A 63242A 63245D 63246D 63249E 63249E 63249F 63249F 63251H 63260A 63267A 63268A 63279D 63625 63626 6402 9011906357 9014940031 9015430003 9015950336 9016840027 9017906274 9046714001 9046909007 9048008002 9048026026 9095001866 9095901434 9095901581 9095901582 9163560616 9163560616
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-44050

ACN1#,SXN1#

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
63202H - RAIL SUB-ASSY, SLIDE ROOF
63202-44010

ACN1#,SXN1#

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-44040

ACN1#,SXN15

 1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-44010

ACN1#,SXN15

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-44030

ACN1#,SXN1#

 1
63214F - CHANNEL, ROOF DRIP, REAR
63214-33020

ACN1#,SXN1#

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-33020

ACN1#,SXN1#

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-33020

ACN1#,SXN1#

 1
63233F - FRAME, REMOVABLE ROOF HOUSING
63233-33031

ACN1#,SXN1#

 1
63239 - STOPPER, SLIDING ROOF PANEL
63239-12030

ACN1#,SXN1#

 2
63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63241-44030

ACN1#,SXN1#

 1
63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63241-44030

ACN1#,SXN1#

 1
63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63245-44020

ACN1#,SXN1#

 1
63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63246-44010

ACN1#,SXN1#

 1
63249E - HOSE, SLIDING ROOF DRAIN
63249-44080

ACN1#,SXN1#

 2
63249E - HOSE, SLIDING ROOF DRAIN
63249-44080

ACN1#,SXN1#

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-44090

ACN1#,SXN1#

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-44090

ACN1#,SXN1#

 2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-44030

ACN1#,SXN1#

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-44020

ACN1#,SXN1#

 1
63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH
63267-12040

SXN1#

 1
63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH
63268-12040

SXN1#

 1
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-12030

ACN1#,SXN1#

 2
63625 - BLOCK, SLIDING ROOF GUIDE, RH
63625-33030

ACN1#,SXN1#

 1
63626 - BLOCK, SLIDING ROOF GUIDE, LH
63626-33030

ACN1#,SXN1#

 1
Common parts
90119-06357
90149-40031
90154-30003
90159-50336
90168-40027
90179-06274
90467-14001
90469-09007
90480-08002
90480-26026
90950-01866
90959-01434
90959-01581
90959-01582
91635-60616
Linked diagrams
6402
