SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

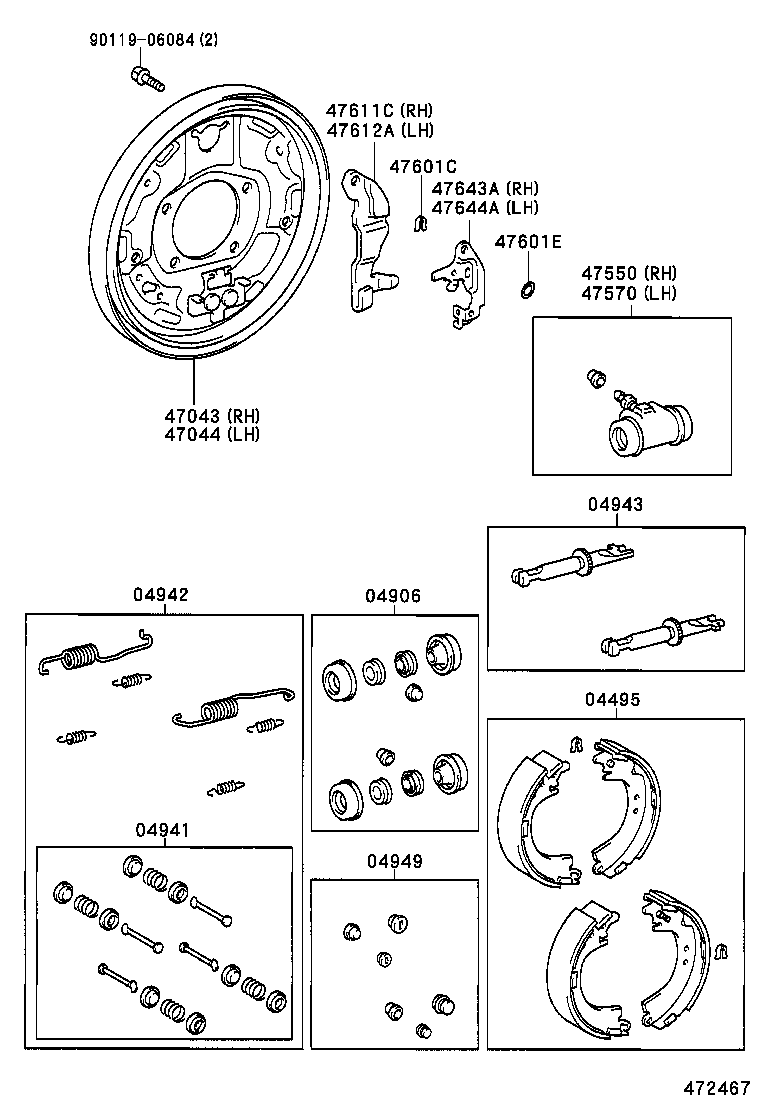

Click highlighted areas on diagram

diagram 04495 04906 04941 04942 04943 04949 47043 47044 47550 47570 47601C 47601E 47611C 47612A 47643A 47644A 9011906084
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-44010

ACN1#,SXN1#

ﾏｰｸ NBK LN512

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-33010

ACN1#,SXN1#

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-28010

ACN1#,SXN15

 1
04942 - SPRING KIT, REAR BRAKE
04942-44020

ACN1#,SXN15

 1
04943 - STRUT KIT, REAR BRAKE, RH
04943-44010

ACN1#,SXN15

 1
04949 - PLUG KIT, REAR BRAKE
04949-44010

ACN1#,SXN15

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-44010

ACN1#,SXN1#

 1
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-44010

ACN1#,SXN1#

 1
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-44010

ACN1#,SXN1#

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-44010

ACN1#,SXN1#

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

ACN1#,SXN1#

厚さ=1.2

 2
47601E - RING, E(FOR REAR BRAKE)
96160-00500

ACN1#,SXN1#

 2
47611C - LEVER, PARKING BRAKE SHOE, RH
47611-33010

ACN1#,SXN1#

 1
47612A - LEVER, PARKING BRAKE SHOE, LH
47612-33010

ACN1#,SXN1#

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-33010

ACN1#,SXN1#

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-33010

ACN1#,SXN1#

 1
Common parts
90119-06084
