SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

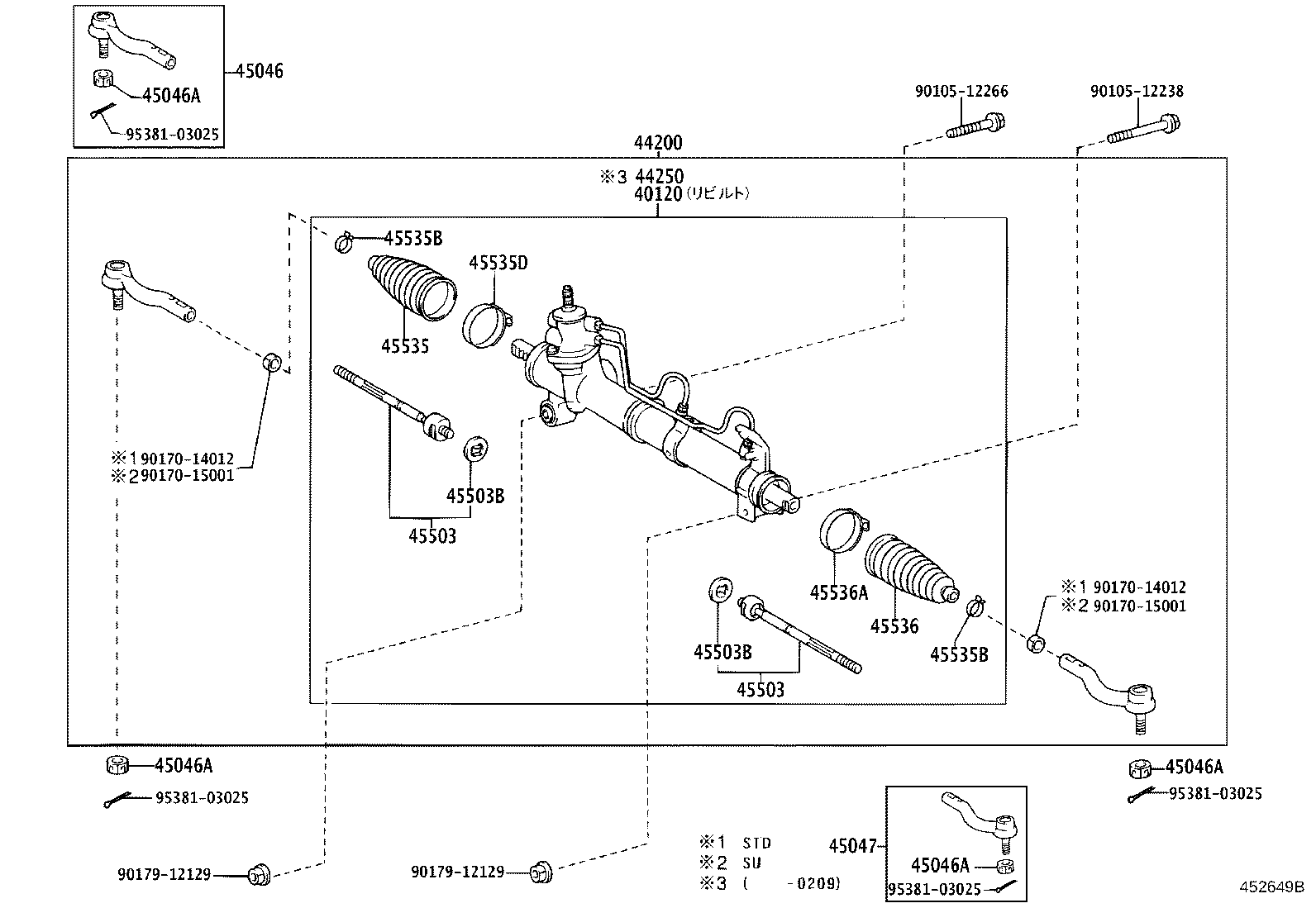

ILLUST NO. 1 OF 2(0104- )ACN15,SXN15

Click highlighted areas on diagram

diagram 40120 44200 44250 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 9010512238 9010512266 9017014012 9017014012 9017015001 9017015001 9017912129 9017912129 9538103025 9538103025 9538103025 9538103025
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-44130

ACN15,SXN15..SU

TOYODA KOKI

 1
44200 - LINK ASSY, POWER STEERING
44200-44130

ACN15,SXN15..SU

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACN1#,SXN1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACN1#,SXN1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACN1#,SXN1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACN1#,SXN1#

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14002

ACN1#,SXN1#

外径=37

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14002

ACN1#,SXN1#

外径=37

 2
45535 - BOOT, STEERING RACK, NO.1
45535-20290

ACN15,SXN15

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012

SXN15

 2
90467-19019

ACN15,SXN15

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012

SXN15

 2
90467-19019

ACN15,SXN15

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49004

ACN1#,SXN1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-20290

ACN15,SXN15

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-49004

ACN1#,SXN1#

 1
Common parts
90105-12238
90105-12266
90170-14012
90170-15001
90179-12129
95381-03025

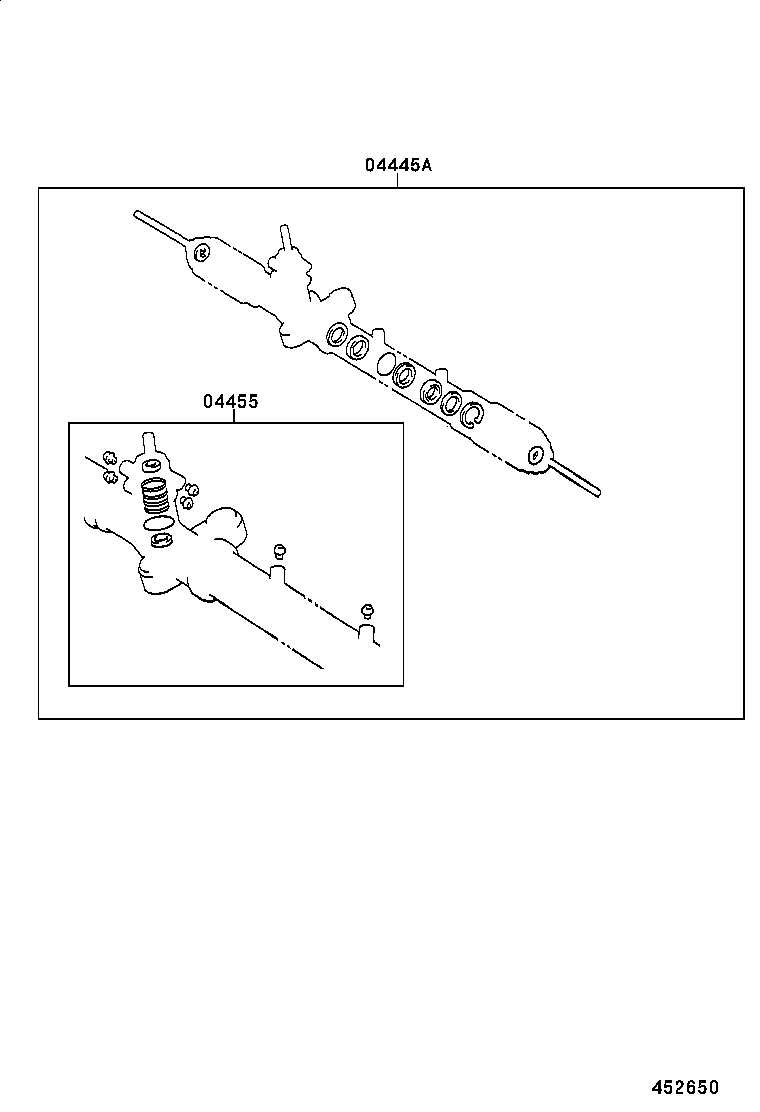

ILLUST NO. 2 OF 2(0104- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-20161

ACN1#,SXN1#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-20120

ACN1#,SXN1#

 1
