SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )S

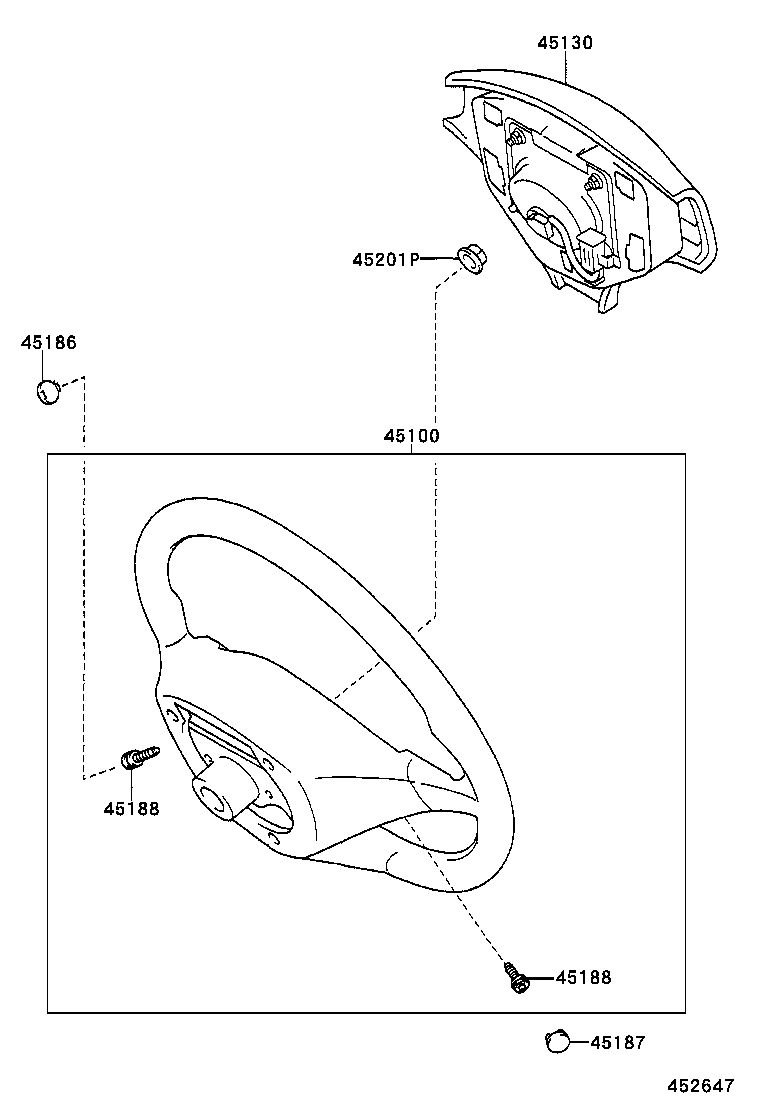

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-44180E0

ACN1#,SXN15..L,X

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,SANDAL WOOD,TRIM0#

 1
45100-44170E0

ACN1#,SXN15..L,X

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SANDAL WOOD,TRIM0#

 1
45100-44150B0

ACN1#,SXN15..S

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-44040B0

SXN1#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-44050B0

SXN1#..SU;SXN10..D4

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLUISH GRAY,TRIM1#

 1
45100-44160E0

ACN1#,SXN15..X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SANDAL WOOD,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-44040B0

SXN1#

BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050B0

ACN1#,SXN1#..NOG,S

BLUISH GRAY,TRIM1#

 1
45186-33050E3

ACN1#,SXN15..L,X

SANDAL WOOD,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-33050B0

ACN1#,SXN1#..NOG,S

BLUISH GRAY,TRIM1#

 1
45186-33050E3

ACN1#,SXN15..L,X

SANDAL WOOD,TRIM0#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ACN1#,SXN15..S

長さ=18

 2
45188-60010

ACN1#,SXN15..L,X

長さ=18

 2
90148-60031

SXN1#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ACN1#,SXN15..S

長さ=18

 2
45188-60010

ACN1#,SXN15..L,X

長さ=18

 2
90148-60031

SXN1#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ACN1#,SXN1#

 1
