SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104-0208)SXN15

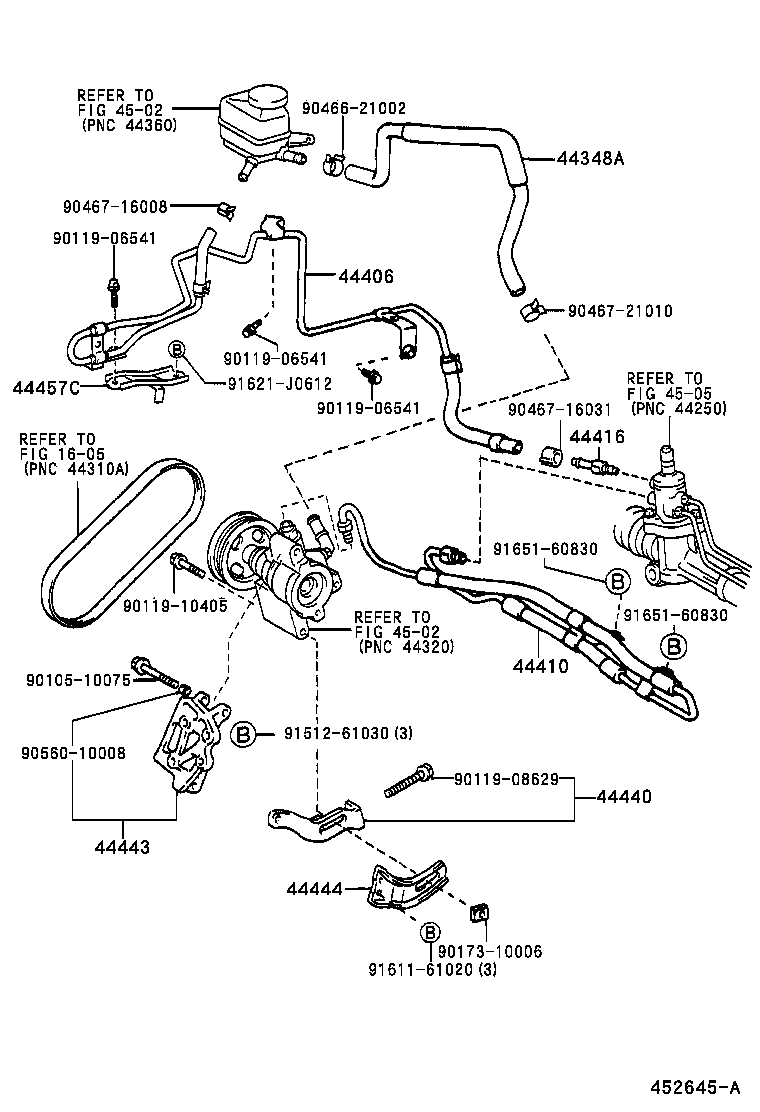

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-44101 |
SXN15..SU |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-44020 |
SXN15 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
ACN1#,SXN1# |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-20040 |
SXN15 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
SXN1# |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
SXN1# |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-44020 |
ACN1#,SXN15 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06541 | ||||
| 90119-08629 | ||||
| 90119-10405 | ||||
| 90173-10006 | ||||
| 90466-21002 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 90560-10008 | ||||
| 91512-61030 | ||||
| 91611-61020 | ||||
| 91621-J0612 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
