SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104-0208)SXN15

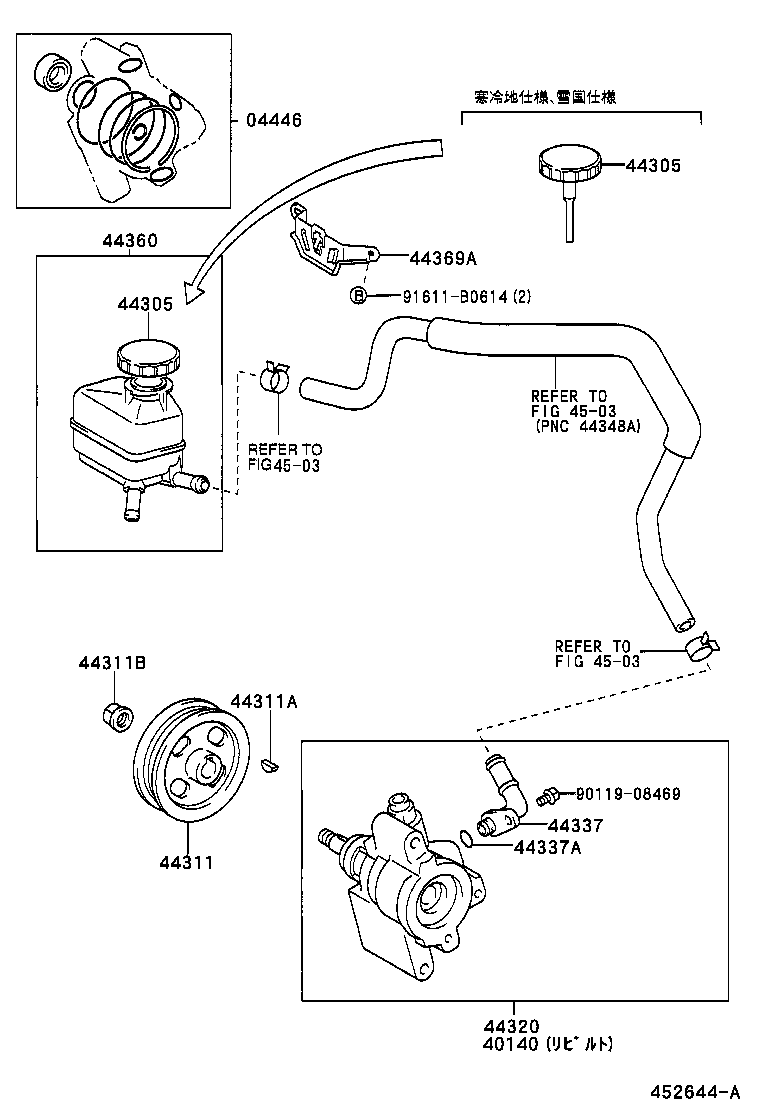

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-44010 |
SXN1#..EFI |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-44070 |
SXN15..SU ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,TOYODA KOKI |
1 | ||
| 40140-44060 |
SXN15..SU TOYODA KOKI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44305-20041 |
SXN15 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 44305-12030 |
SXN1#..EFI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44305-20041 |
SXN15 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 44305-12030 |
SXN1#..EFI |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-42010 |
SXN1# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
SXN1# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
SXN1#..SU;SXN10..D4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-44070 |
SXN15..SU ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-20040 |
SXN1# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
SXN1# |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20150 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44360-20190 |
SXN1#..EFI |
1 | ||
| 44360-20150 |
SXN15 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20020 |
SXN1# |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
