SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

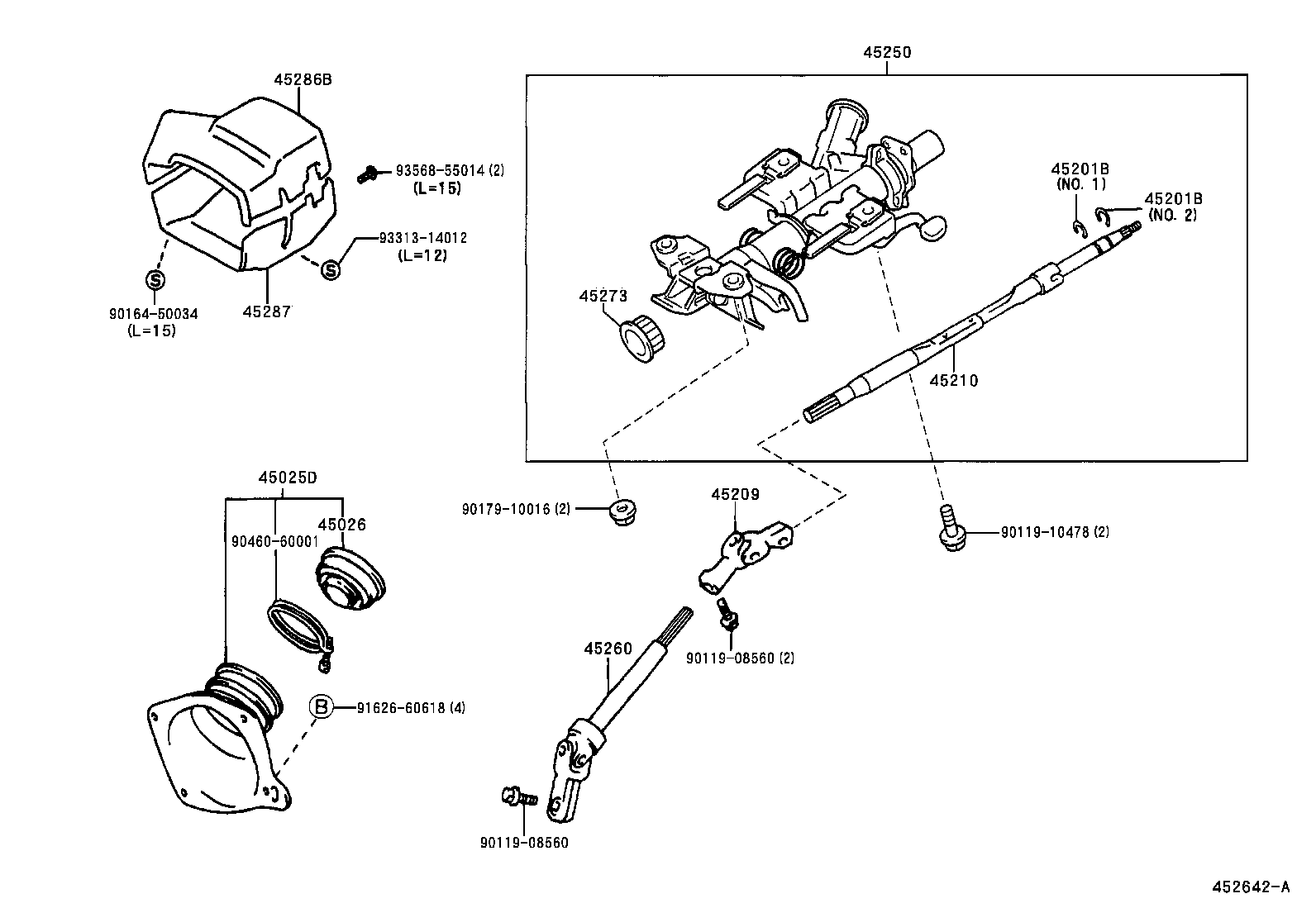

Click highlighted areas on diagram

diagram 45025D 45026 45201B 45201B 45209 45210 45250 45260 45273 45286B 45287 9011908560 9011908560 9011910478 9016450034 9017910016 9046060001 9162660618 9331314012 9356855014
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-44020

ACN1#,SXN1#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ACN1#,SXN1#

厚さ=1.20,NO.1

 1
90520-17269

ACN1#,SXN1#

厚さ=1.20,NO.2

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ACN1#,SXN1#

厚さ=1.20,NO.1

 1
90520-17269

ACN1#,SXN1#

厚さ=1.20,NO.2

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-44010

ACN1#,SXN1#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-44010

ACN1#,SXN1#

 1
45250 - COLUMN ASSY, STEERING
45250-44090

ACN1#,SXN15

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-12020

ACN1#,SXN1#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-44050E0

ACN1#,SXN15..L,X

SANDAL WOOD,TRIM0#

 1
45286-44050B2

ACN1#,SXN1#..NOG,S

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-44050B2

ACN1#,SXN1#..NOG,S

BLUISH GRAY,TRIM1#

 1
45287-44050E0

ACN1#,SXN15..L,X

SANDAL WOOD,TRIM0#

 1
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-60001
91626-60618
93313-14012
93568-55014
