SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

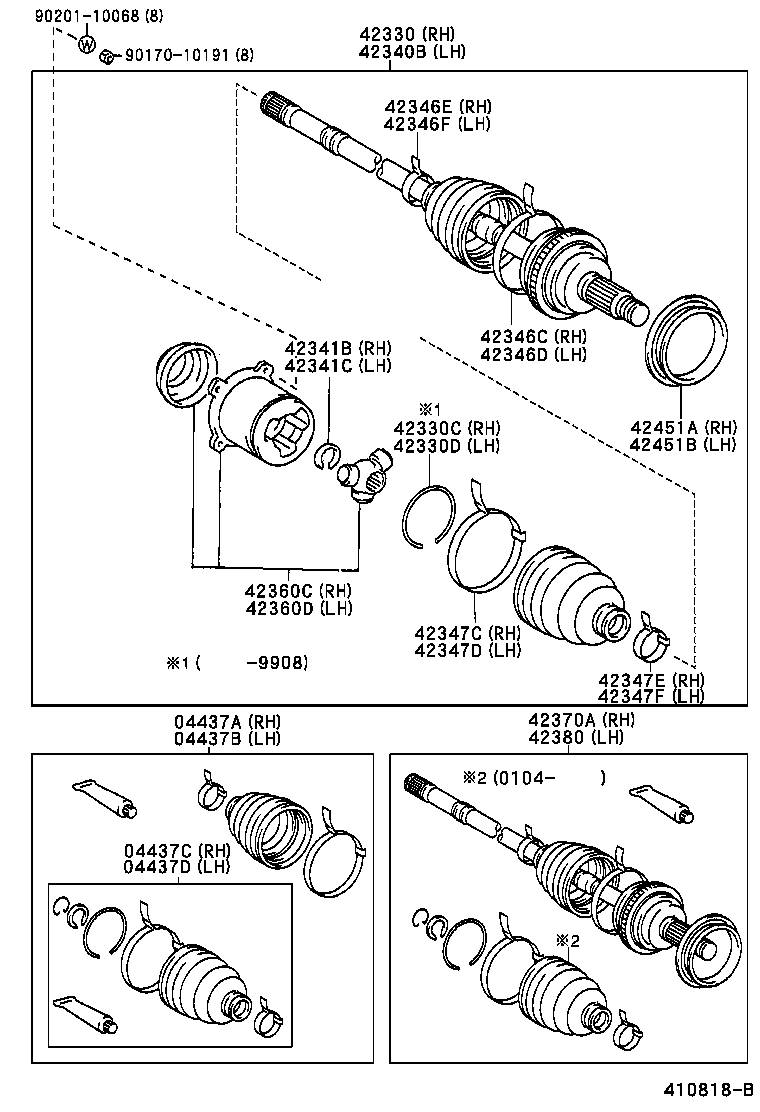

ILLUST NO. 1 OF 2(9807-0208)SXN15 ; (0208- )ACN15

Click highlighted areas on diagram

diagram 04437A 04437B 04437C 04437D 42330 42330C 42330D 42340B 42341B 42341C 42346C 42346D 42346E 42346F 42347C 42347D 42347E 42347F 42360C 42360D 42370A 42380 42451A 42451B 9017010191 9020110068
Part # Description Qty Price
04437A - BOOT KIT, REAR DRIVE SHAFT, RH
04437-44020

SXN15

 1
04437B - BOOT KIT, REAR DRIVE SHAFT, LH
04437-44020

SXN15

 1
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04437-44010

SXN15

 1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04437-44010

SXN15

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42340-44010

ACN15,SXN15

 1
42330C - RING, HOLE SNAP(FOR REAR DRIVE SHAFT)
90521-64001

SXN15

 1
42330D - RING, SHAFT SNAP(FOR REAR DRIVE SHAFT)
90521-64001

SXN15

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-44010

ACN15,SXN15

 1
42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH)
90520-21020

ACN15,SXN15

 1
42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH)
90520-21020

ACN15,SXN15

 1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12120

SXN15

 1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12120

SXN15

 1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
42345-33020

SXN15

 1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
42345-33020

SXN15

 1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120

SXN15

 1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120

SXN15

 1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
42345-33020

SXN15

 1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42345-33020

SXN15

 1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-44010

SXN15

 1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-44010

SXN15

 1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-49067

ACN15,SXN15

 1
42370-49065

SXN15

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42370-49067

ACN15,SXN15

 1
42370-49065

SXN15

 1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
43247-12010

ACN15,SXN15

 1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
43247-12010

ACN15,SXN15

 1
Common parts
90170-10191
90201-10068

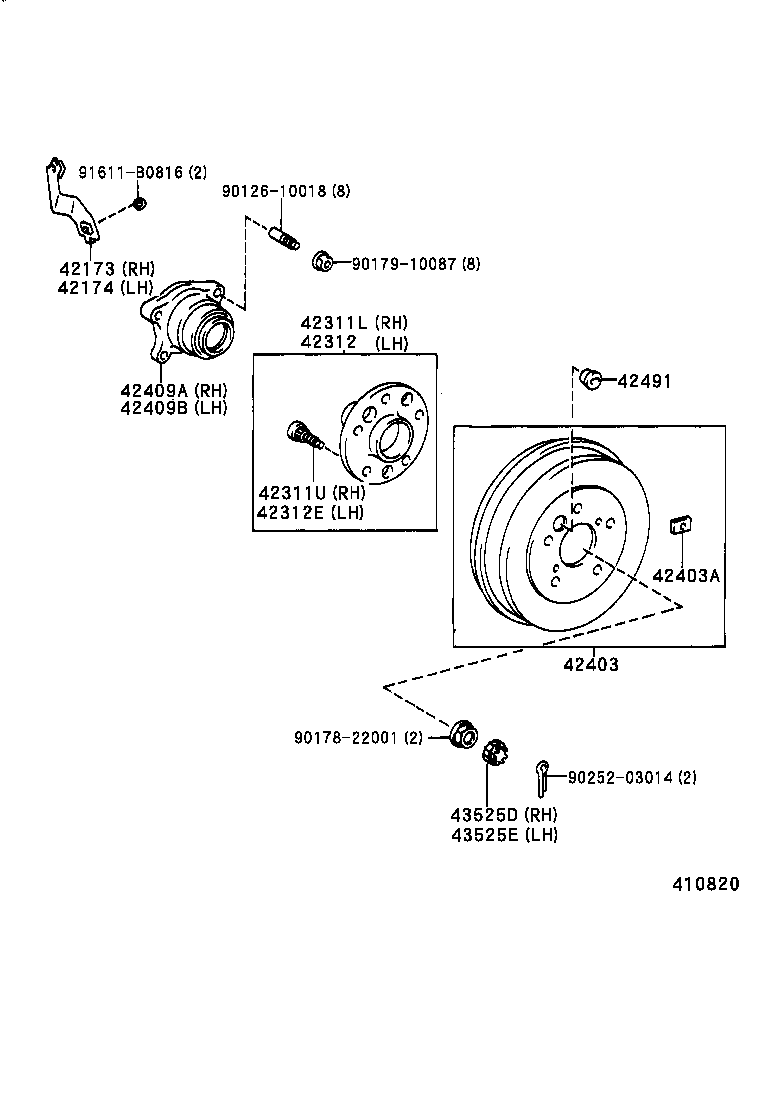

ILLUST NO. 2 OF 2(9807-0208)SXN15 ; (0208- )ACN15

Click highlighted areas on diagram

diagram 42173 42174 42311L 42311U 42312 42312E 42403 42403A 42409A 42409B 42491 43525D 43525E 9012610018 9017822001 9017910087 9025203014 91611B0816
Part # Description Qty Price
42173 - BRACKET, REAR AXLE HARNESS, RH
42173-44020

ACN15,SXN15

 1
42174 - BRACKET, REAR AXLE HARNESS, LH
42174-44020

ACN15,SXN15

 1
42311L - SHAFT, REAR AXLE, RH
42301-44020

ACN15,SXN15

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

ACN1#,SXN1#

 5
42312 - SHAFT, REAR AXLE, LH
42301-44020

ACN15,SXN15

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02070

ACN1#,SXN1#

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-44010

ACN1#,SXN1#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01289

ACN1#,SXN1#

30G

 1
90937-01287

ACN1#,SXN1#

10G

 1
90937-01288

ACN1#,SXN1#

20G

 1
42409A - BEARING SUB-ASSY, REAR AXLE, RH
42409-42010

ACN15,SXN15

 1
42409B - BEARING SUB-ASSY, REAR AXLE, LH
42409-42010

ACN15,SXN15

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

ACN1#,SXN1#

 2
43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH
42428-42010

ACN15,SXN15

 1
43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH
42428-42010

ACN15,SXN15

 1
Common parts
90126-10018
90178-22001
90179-10087
90252-03014
91611-B0816
