SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0208)SXN15

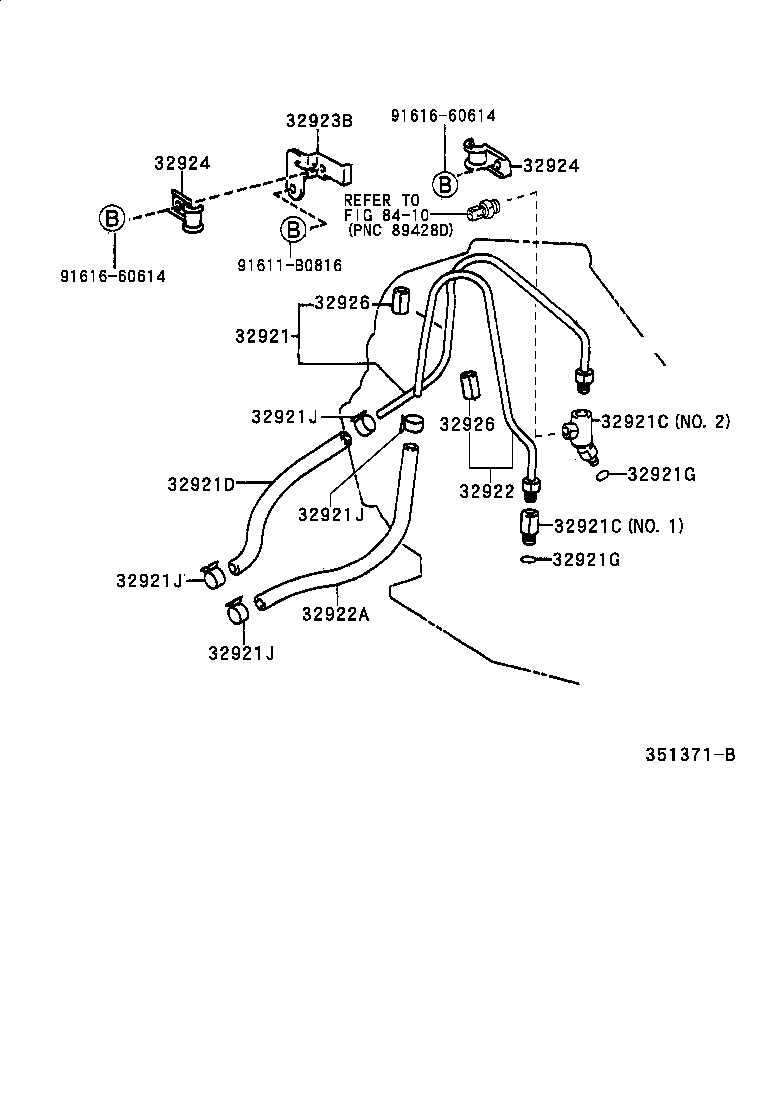

Click highlighted areas on diagram

A243F

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923B 32924 32924 32926 32926 8410 91611B0816 9161660614 9161660614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-44050

SXN15

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16036

SXN15

NO.2

 1
90404-16031

SXN15

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16036

SXN15

NO.2

 1
90404-16031

SXN15

NO.1

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17115

SXN15

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

SXN15;SXN10..D4

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

SXN15;SXN10..D4

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ACN10,SXN1#

 4
90467-16022

ACN1#,SXN15

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ACN10,SXN1#

 4
90467-16022

ACN1#,SXN15

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ACN10,SXN1#

 4
90467-16022

ACN1#,SXN15

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ACN10,SXN1#

 4
90467-16022

ACN1#,SXN15

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-44010

SXN15

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17106

SXN15;SXN10..D4

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-44010

SXN15

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-20090

SXN15

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-20090

SXN15

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

ACN1#,SXN1#

長さ=25,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

ACN1#,SXN1#

長さ=25,内径=10

 2
Common parts
91611-B0816
91616-60614
Linked diagrams
8410
