SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

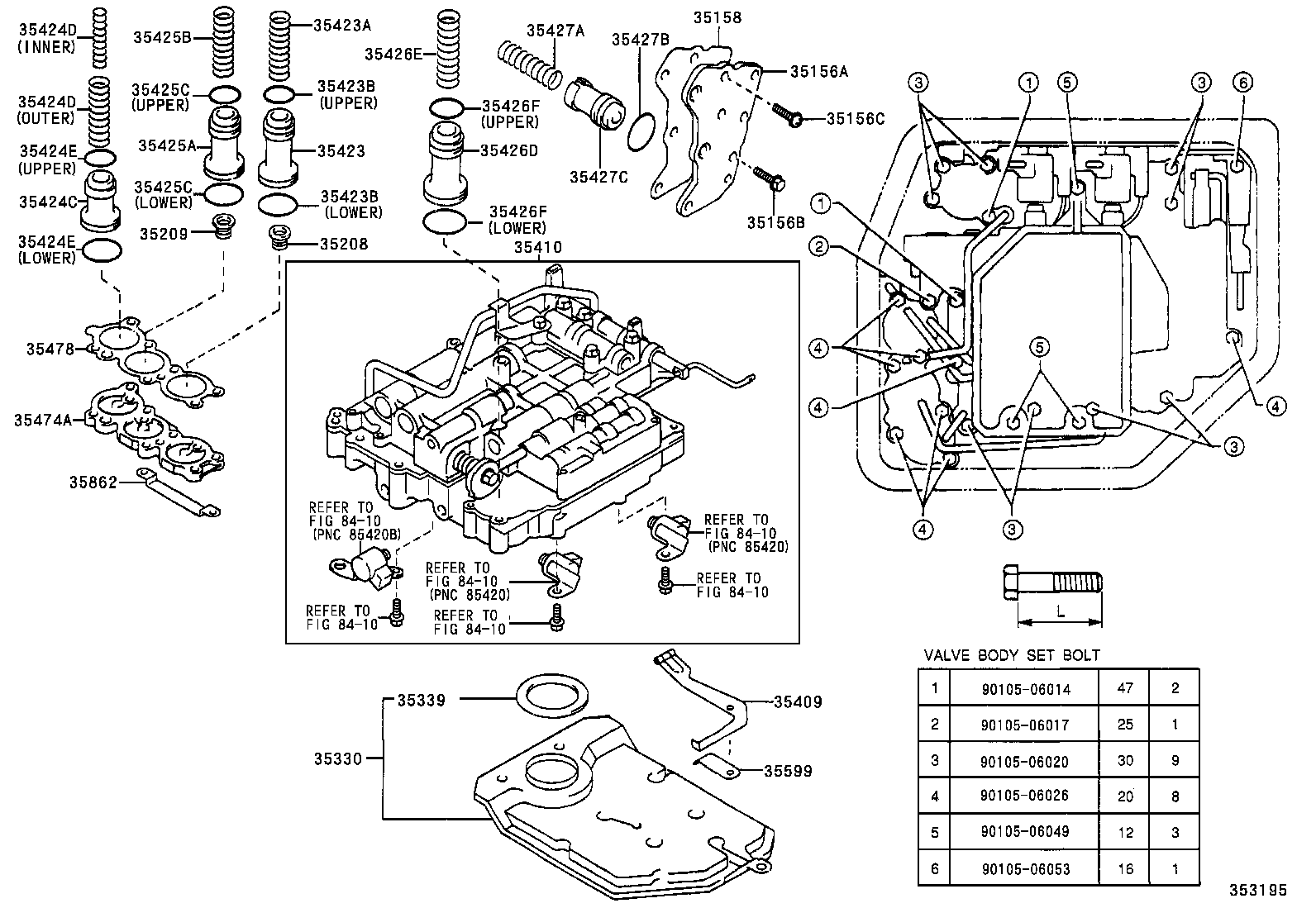

ILLUST NO. 1 OF 2(0104-0208)SXN15
Click highlighted areas on diagram
A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35108-20070 |
SXN15 |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
SXN1#..EFI |
3 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
SXN1#..EFI |
6 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
SXN1#..EFI |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-16020 |
SXN15 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-20010 |
SXN15 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
SXN15 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
SXN15 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-20010 |
SXN15 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-21040 |
SXN15 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-20030 |
SXN15 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-23102 |
SXN15 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-22185 |
SXN1#..EFI 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-22185 |
SXN1#..EFI 上側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-20030 |
SXN15 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23127 |
SXN15 内側 |
1 | ||
| 90501-19026 |
SXN15 外側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23127 |
SXN15 内側 |
1 | ||
| 90501-19026 |
SXN15 外側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-23194 |
SXN1#..EFI 上側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-23194 |
SXN1#..EFI 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-20020 |
SXN15 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22018 |
SXN15 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
SXN15 上側 |
1 | ||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
SXN15 上側 |
1 | ||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-20040 |
SXN15 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-29003 |
SXN15 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-20002 |
SXN15 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
SXN1#..EFI 下側 |
1 | ||
| 90301-20002 |
SXN15 上側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26040 |
SXN15 |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
SXN1#..EFI |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
SXN15 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-12010 |
SXN15 |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
SXN15 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12010 |
SXN15 |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-12020 |
SXN15 |
1 | ||
| Common parts | ||||
| 90105-06014 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06026 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| Linked diagrams | ||||
| 8410 | ||||

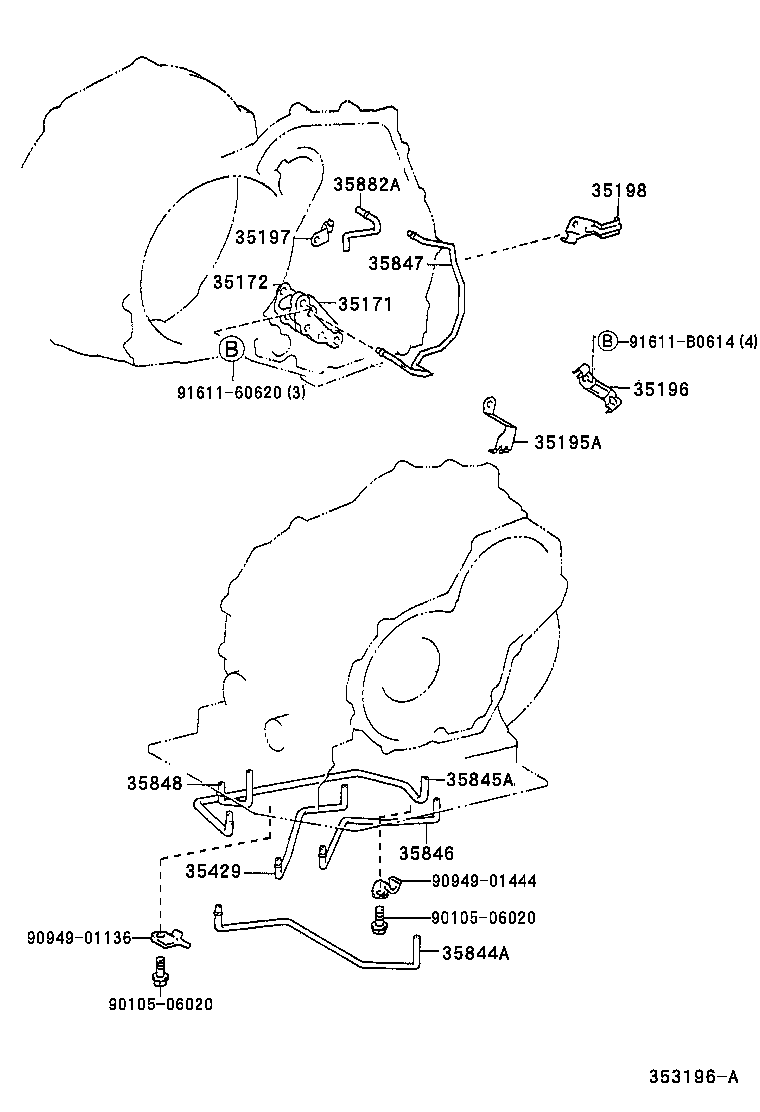

ILLUST NO. 2 OF 2(0104-0208)SXN15
Click highlighted areas on diagram
A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35171 - COVER, TRANSAXLE HOUSING | ||||
| 35171-12010 |
SXN15 |
1 | ||
| 35172 - GASKET, TRANSAXLE HOUSING COVER | ||||
| 35172-12010 |
SXN15 |
1 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12010 |
SXN15 |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21020 |
SXN15 |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12010 |
SXN15 |
1 | ||
| 35198 - CLAMP, TRANSAXLE APPLY TUBE, NO.4 | ||||
| 35198-20010 |
SXN15 |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-12030 |
SXN15 |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-12030 |
SXN15 |
1 | ||
| 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR | ||||
| 35845-12030 |
SXN15 |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-12040 |
SXN15 |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-21030 |
SXN15 |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-12030 |
SXN15 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-21020 |
SXN15 |
1 | ||
| Common parts | ||||
| 90105-06020 | ||||
| 90949-01136 | ||||
| 90949-01444 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
