SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

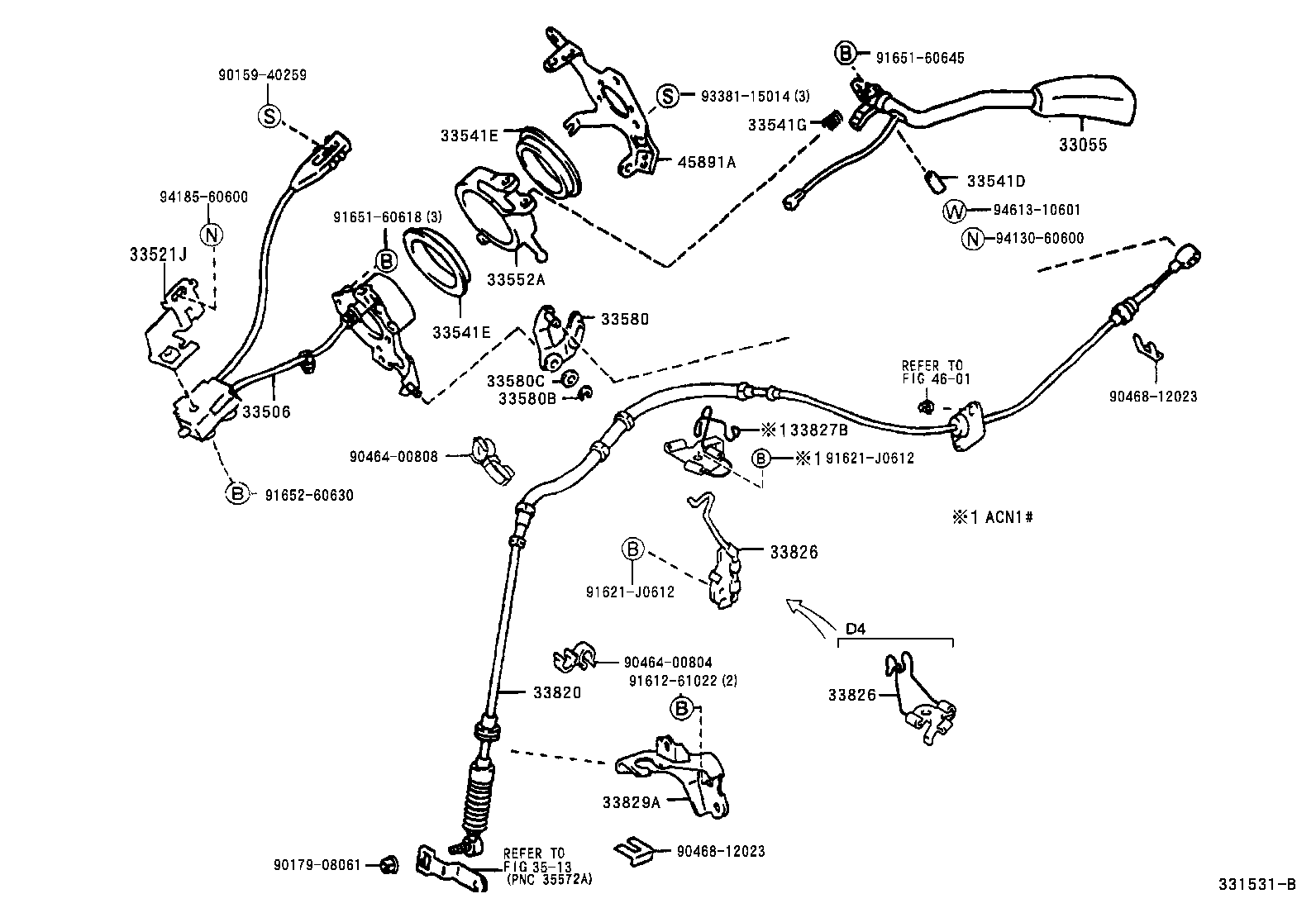

Click highlighted areas on diagram

diagram 33055 33506 33521J 33541D 33541E 33541E 33541G 33552A 33580 33580B 33580C 33820 33826 33826 33827B 33829A 3513 45891A 4601 9015940259 9017908061 9046400804 9046400808 9046812023 9046812023 9161261022 91621J0612 91621J0612 9165160618 9165160645 9165260630 9338115014 9413060600 9418560600 9461310601
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-44040

SXN1#

 1
33055-44030

ACN1#,SXN15

 1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-44040

ACN1#,SXN1#

 1
33506-44050

SXN1#

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ)

 1
33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33521-44010

ACN1#,SXN1#

 1
33541D - COLLAR (FOR COLUMN SHIFT LEVER)
90387-06062

ACN1#,SXN1#

 1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90387-49001

ACN1#,SXN1#

 2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90387-49001

ACN1#,SXN1#

 2
33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
90501-16150

ACN1#,SXN1#

 1
33552A - ARM, SHIFT LEVER
33552-44011

ACN1#,SXN1#

 1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-44010

ACN1#,SXN1#

 1
33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
96160-01000

ACN1#,SXN1#

 1
33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK)
90560-11028

ACN1#,SXN1#

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-44050

SXN1#..EFI

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-44050

SXN1#..EFI

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-44030

SXN10..EFI;ACN1#,SXN15

 1
45891A - BRACKET, TURN SIGNAL
45891-44020

ACN1#,SXN1#

 1
Common parts
90159-40259
90179-08061
90464-00804
90464-00808
90468-12023
91612-61022
91621-J0612
91651-60618
91651-60645
91652-60630
93381-15014
94130-60600
94185-60600
94613-10601
Linked diagrams
3513
4601
