SXN15H-AHSQK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )

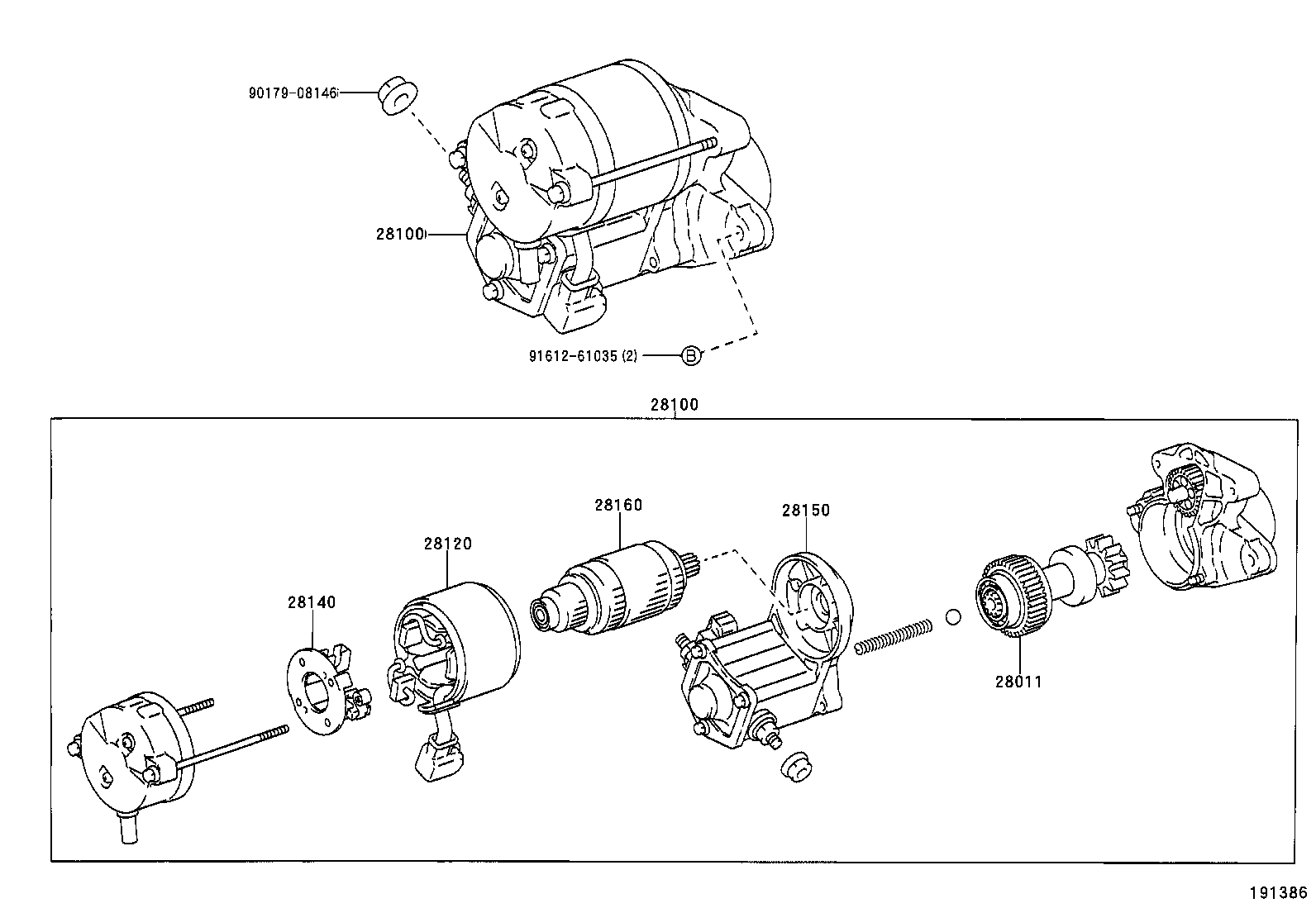

Click highlighted areas on diagram
12V 1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74060 |
3SF#..SXN1# |
1 | ||
| 28011-74070 |
1AZFSE,3SFE..ACN1#,SXN15 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74250 |
3SF#..SXN1# 12V 1.0KW |
1 | ||
| 28100-74130 |
1AZFSE,3SFE..ACN1#,SXN15 12V 1.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74250 |
3SF#..SXN1# 12V 1.0KW |
1 | ||
| 28100-74130 |
1AZFSE,3SFE..ACN1#,SXN15 12V 1.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3SF#..SXN1# |
1 | ||
| 28120-16180 |
1AZFSE,3SFE..ACN1#,SXN15 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74010 |
3SF#..SXN1# |
1 | ||
| 28140-74120 |
1AZFSE,3SFE..ACN1#,SXN15 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74140 |
1AZFSE,3SFE..ACN1#,SXN15 |
1 | ||
| 28150-74250 |
3SF#..SXN1# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
1AZFSE,3SFE..ACN1#,SXN15 |
1 | ||
| 28160-26071 |
3SF#..SXN1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91612-61035 | ||||
