SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104-0208)3SFE

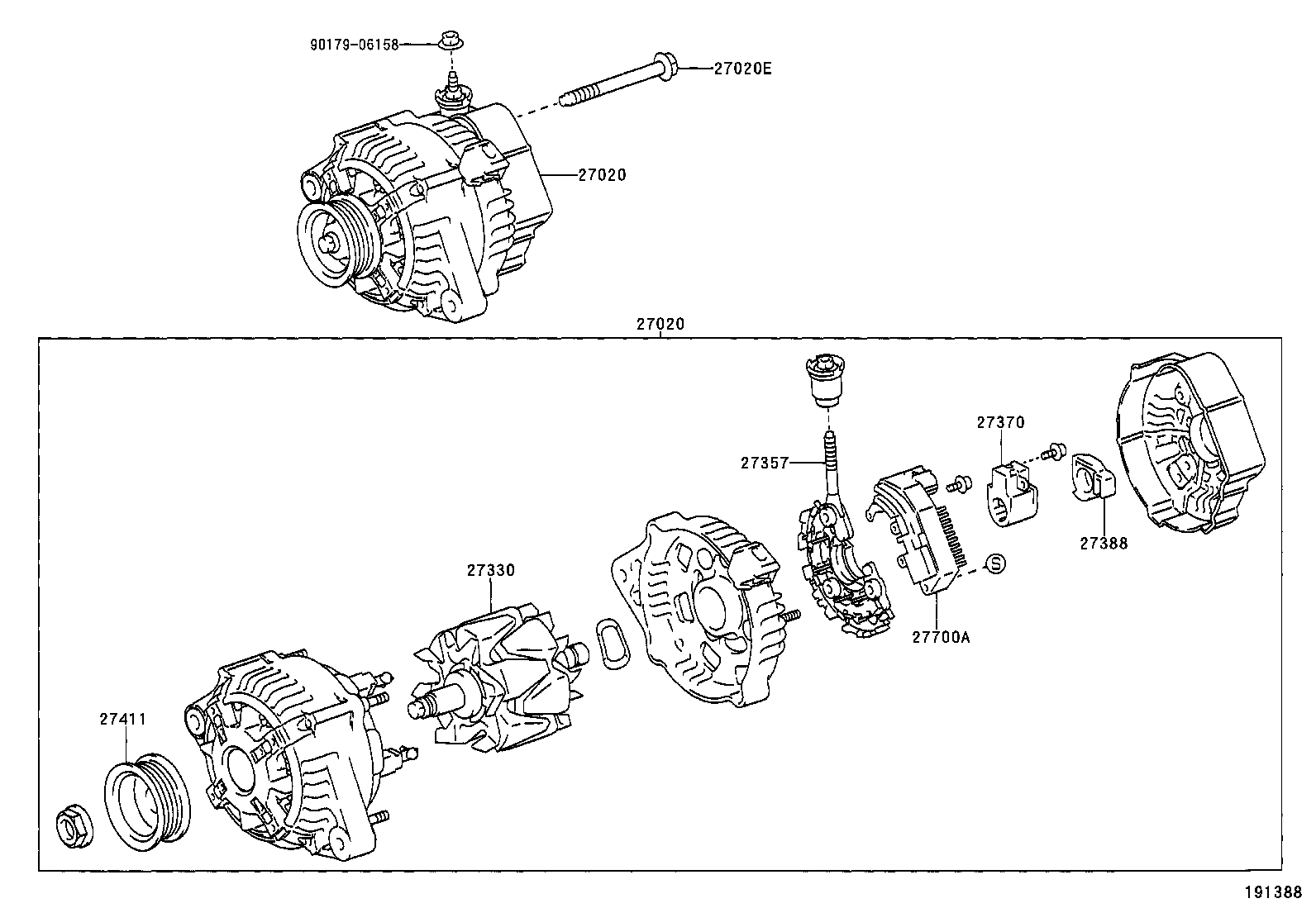

Click highlighted areas on diagram

12V 80A

diagram 27020 27020 27020E 27330 27357 27370 27388 27411 27700A 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74590

3SFE..SXN1#

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-74590

3SFE..SXN1#

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10249

3SF#..SXN1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

3SFE..SXN1#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

3SFE..SXN1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1AZFSE,3SF#..ACN1#,SXN1#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1AZFSE,3SF#..ACN1#,SXN1#

 1
27411 - PULLEY, ALTERNATOR
27411-42030

3SF#..SXN1#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

3SFE..SXN1#

 1
Common parts
90179-06158
