SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )3SFE

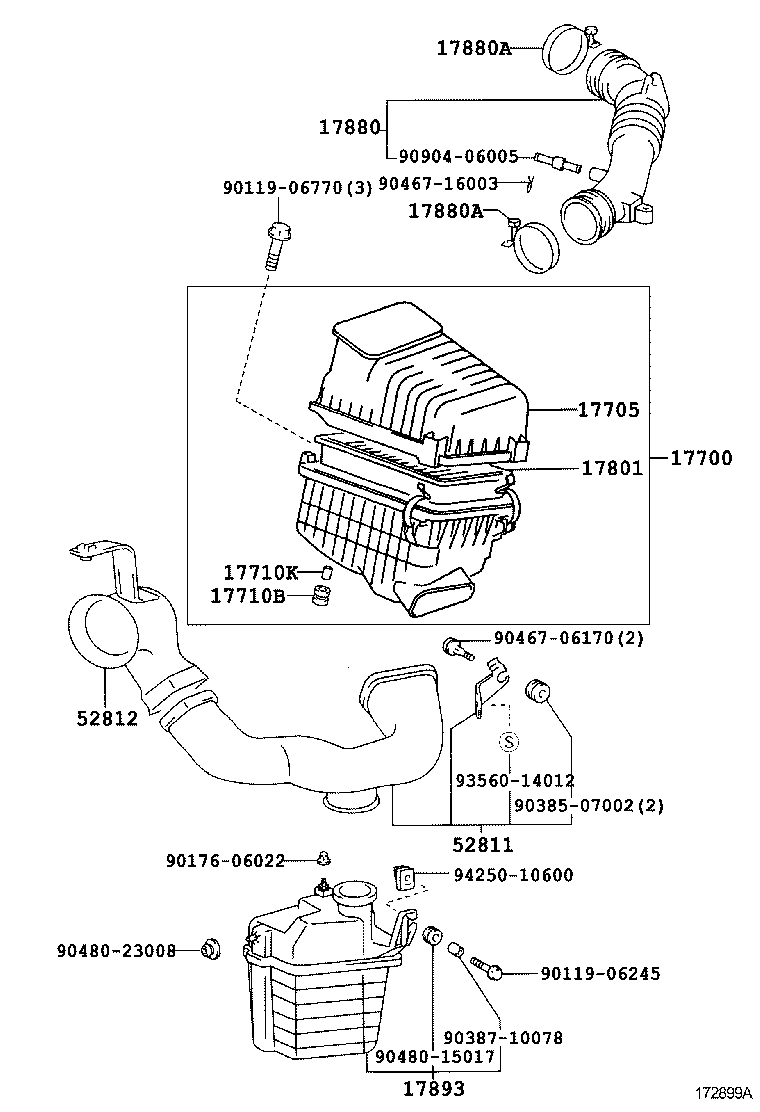

Click highlighted areas on diagram

diagram 17700 17705 17710B 17710K 17801 17880 17880A 17880A 17893 52811 52812 9011906245 9011906770 9017606022 9038507002 9038710078 9046706170 9046716003 9048015017 9048023008 9090406005 9356014012 9425010600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74581

3SFE..SXN1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74411

3SFE..SXN1#

 1
17710B - GROMMET
90480-11014

3SFE..SXN1#

 3
17710K - COLLAR(FOR AIR CLEANER)
90387-09064

3SFE..SXN1#

 3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SF#..SXN1#

 1
17880A - CLAMP, HOSE
96111-10710

3SFE..SXN1#

 2
17880A - CLAMP, HOSE
96111-10710

3SFE..SXN1#

 2
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-44110

SXN15

 1
52811-44070

SXN1#..EFI

 1
52812 - DUCT, COOL AIR INTAKE, NO.2
52812-44040

SXN15

 1
52812-44020

SXN1#..EFI

 1
Common parts
90119-06245
90119-06770
90176-06022
90385-07002
90387-10078
90467-06170
90467-16003
90480-15017
90480-23008
90904-06005
93560-14012
94250-10600
