SXN15H-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )3SFE

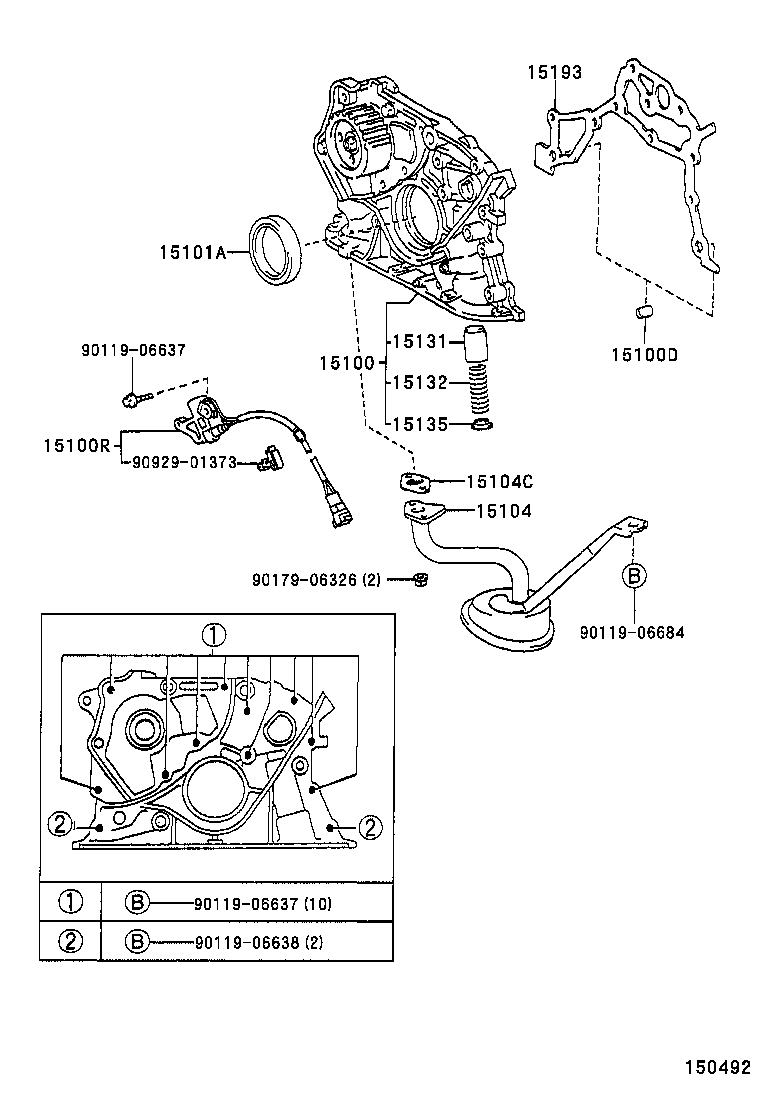

Click highlighted areas on diagram

diagram 15100 15100D 15100R 15101A 15104 15104C 15131 15132 15135 15193 9011906637 9011906637 9011906638 9011906684 9017906326 9092901373
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-74050

3SFE..SXN1#

 1
15100D - PIN(FOR OIL PUMP SET)
90253-09001

3SF#..SXN1#

 2
15100R - SENSOR, CRANK POSITION
90919-05017

3SFE..SXN1#

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42034

3SFE..SXN1#

 1
90311-42035

3SFE..SXN15

 1
15104 - STRAINER SUB-ASSY, OIL
15104-74090

3SF#..SXN1#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-74030

3SF#..SXN1#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3SFE..SXN1#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

3SFE..SXN1#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

3SF#..SXN1#

 1
15193 - GASKET, OIL PUMP
15197-74040

3SF#..SXN1#

 1
Common parts
90119-06637
90119-06638
90119-06684
90179-06326
90929-01373
