SXN15H-AHSGK (1999)

Toyota Nadia

Production Jun 1999 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0104)

Click highlighted areas on diagram

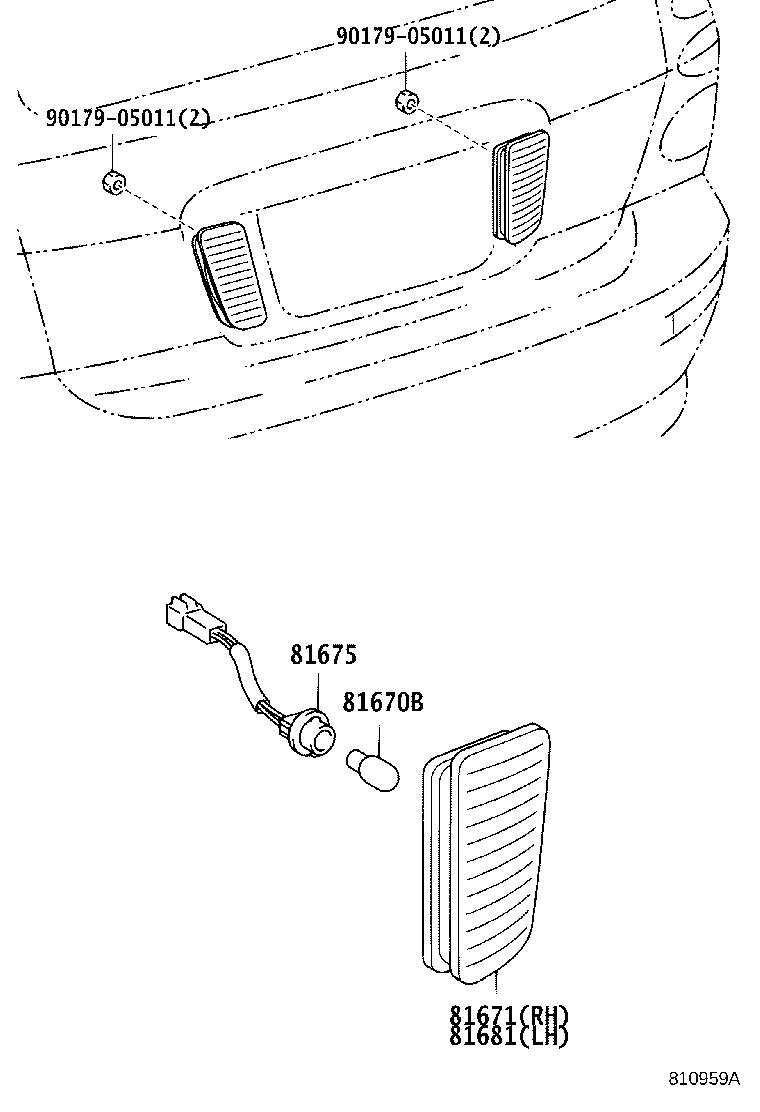

diagram 81670B 81671 81675 81681 9017905011 9017905011
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-11039

ACN1#,SXN1#

12V 16W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-44010

ACN1#,SXN1#

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-44010

SXN1#

 2
81681 - LENS, BACK-UP LAMP, LH
81681-44010

ACN1#,SXN1#

 1
Common parts
90179-05011
