SXN15H-AHSGK (1999)

Toyota Nadia

Production Jun 1999 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0104)SU

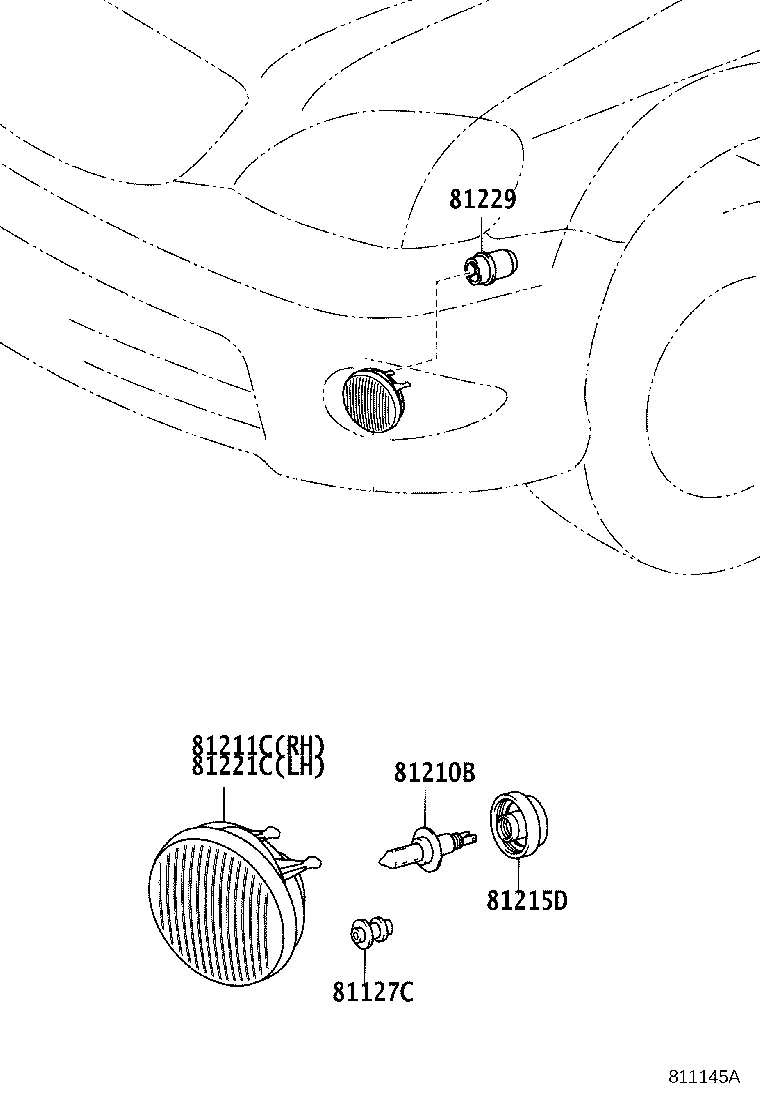

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81215D 81221C 81229
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

ACN1#,SXN1#..SU

 2
81210B - BULB, FOG LAMP
90981-13057

ACN1#,SXN1#..SU

12V 35W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12140

ACN1#,SXN1#..SU

 1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-65003

ACN1#,SXN1#..SU

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-12130

ACN1#,SXN1#..SU

 1
81229 - BRACKET, FOG LAMP
81481-10030

ACN1#,SXN1#..SU

 4
