SXN15H-AHSGK (1999)
Toyota Nadia

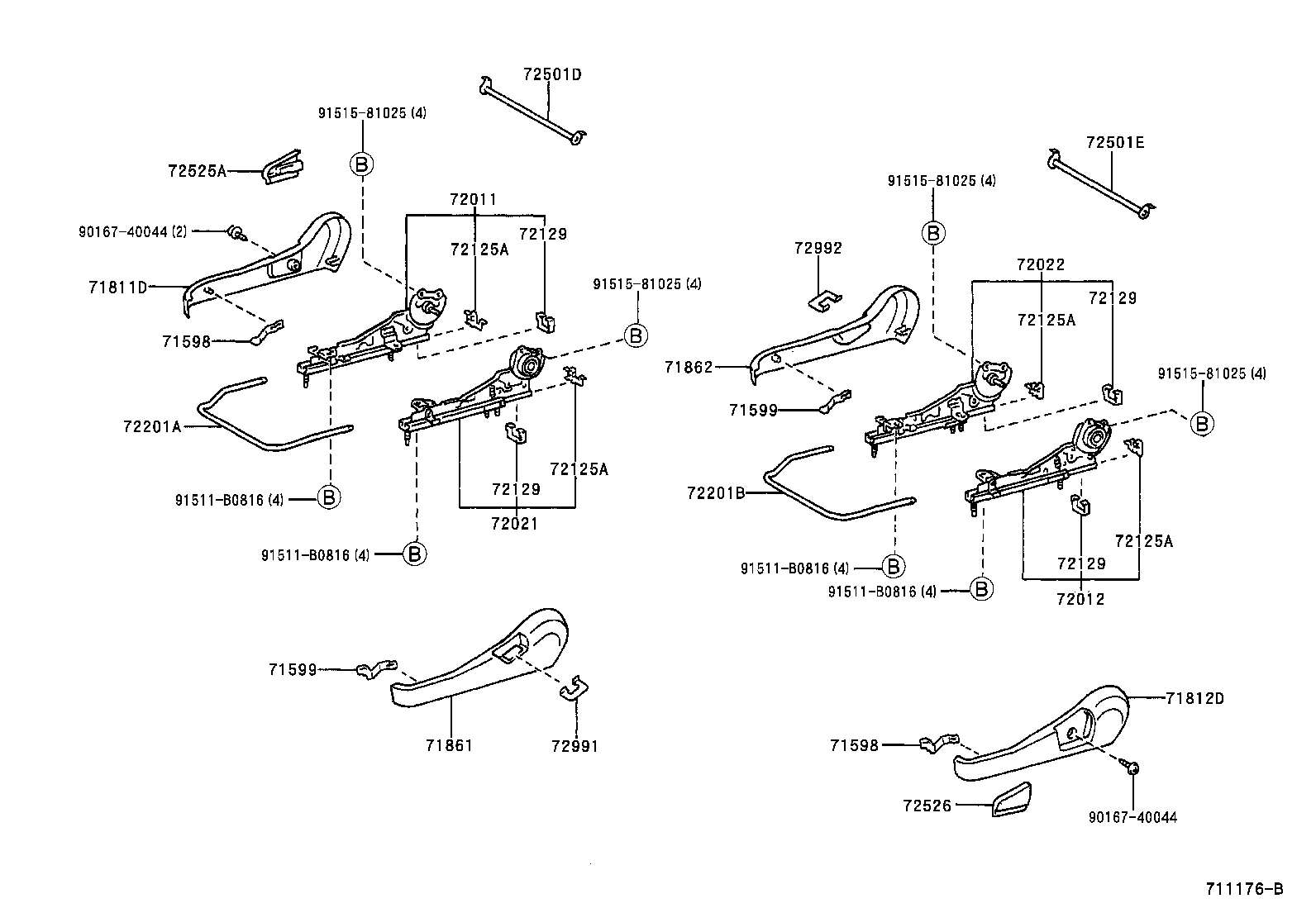

ILLUST NO. 2 OF 3(9807-0104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71598 - PLATE, SEAT COVER | ||||
| 71598-44020 |
SXN1# |
2 | ||
| 71598 - PLATE, SEAT COVER | ||||
| 71598-44020 |
SXN1# |
2 | ||
| 71599 - PLATE, SEAT COVER, NO.2 | ||||
| 71599-44020 |
SXN1# |
2 | ||
| 71599 - PLATE, SEAT COVER, NO.2 | ||||
| 71599-44020 |
SXN1# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-44030B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 71811-44040B1 |
SXN1#..SU ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-44040B1 |
SXN1#..SU ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71812-44030B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-44030B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 71861-44040B1 |
SXN1#..SU ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-44030B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 71862-44040B1 |
SXN1#..SU ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-44090 |
SXN1# |
1 | ||
| 72011-44080 |
SXN1# |
1 | ||
| 72011-44030 |
SXN1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-44090 |
SXN1# |
1 | ||
| 72012-44030 |
SXN1# |
1 | ||
| 72012-44080 |
SXN1# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-44030 |
SXN1# |
1 | ||
| 72021-44080 |
SXN1# |
1 | ||
| 72021-44090 |
SXN1# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-44080 |
SXN1# |
1 | ||
| 72022-44090 |
SXN1# |
1 | ||
| 72022-44030 |
SXN1# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
ACN1#,SXN1#..NOG,S,X |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
ACN1#,SXN1#..NOG,S,X |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
ACN1#,SXN1#..NOG,S,X |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
ACN1#,SXN1#..NOG,S,X |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
SXN1# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
SXN1# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
SXN1# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-44010 |
SXN1# |
4 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-44010 |
ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-44010 |
ACN1#,SXN1#..NOG,S,X |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-44050 |
ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-44050 |
ACN1#,SXN1#..NOG,S,X |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-44010B2 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-44010B2 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-44010B2 |
ACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S) BLUISH GRAY,TRIM1# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72992-44010B2 |
ACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S) BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||

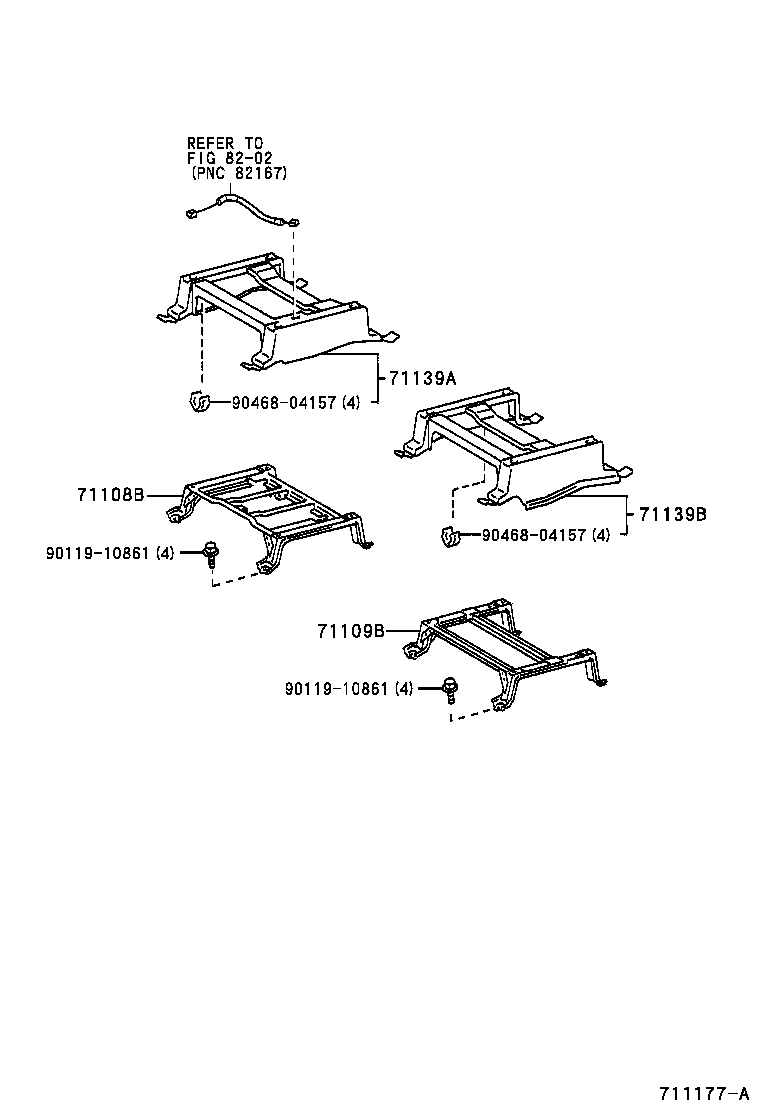

ILLUST NO. 3 OF 3(9807-0104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-44020 |
SXN1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-44010 |
SXN1# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-44010B1 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 71139-44050B0 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),LT.GRAY,TRIM1# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-44060B0 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),LT.GRAY,TRIM1# |
1 | ||
| 71139-44030B1 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10861 | ||||
| 90468-04157 | ||||
| Linked diagrams | ||||
| 8202 | ||||

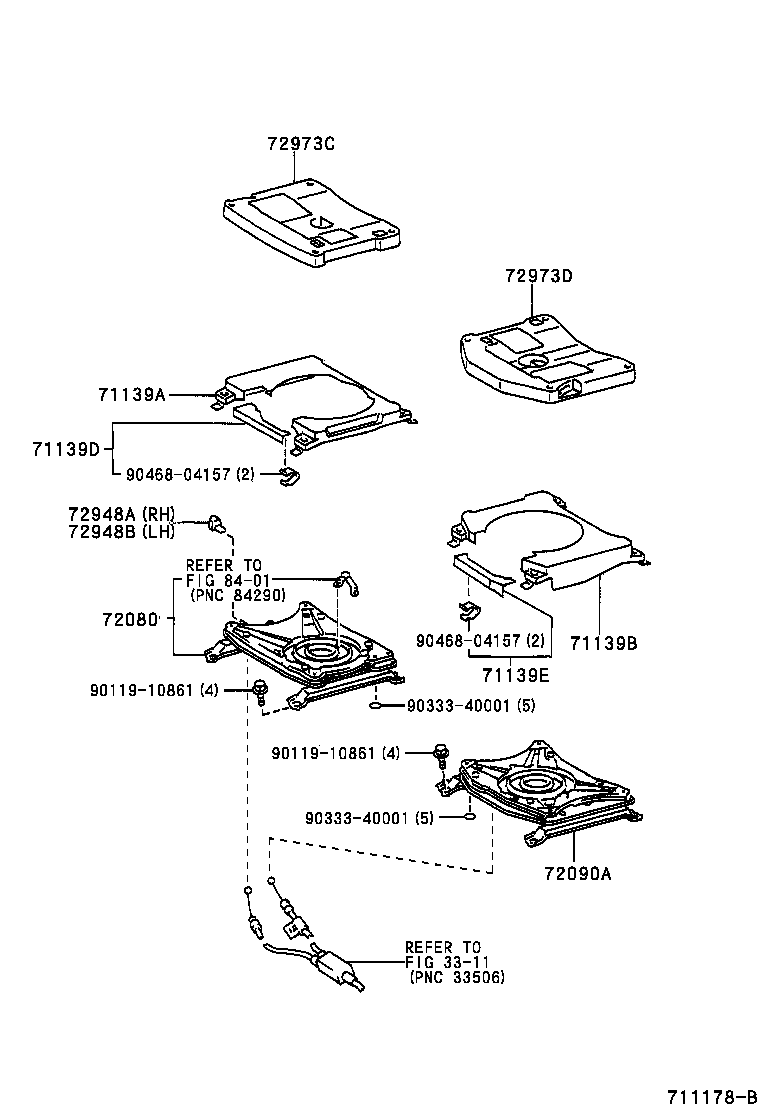

ILLUST NO. 3 OF 3(9807-0104)
ｶｲﾃﾝｼｷ ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-44010B1 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 71139-44050B0 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),LT.GRAY,TRIM1# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-44060B0 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),LT.GRAY,TRIM1# |
1 | ||
| 71139-44030B1 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 71139D - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-44070B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 71139E - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-44080B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 72080 - TABLE ASSY, FRONT SEAT TURN, RH | ||||
| 72080-44010 |
SXN1# |
1 | ||
| 72090A - TABLE ASSY, FRONT SEAT TURN, LH | ||||
| 72090-44010 |
SXN1# |
1 | ||
| 72948A - KNOB, SEAT TURN LOCK | ||||
| 72948-44010B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 72948B - KNOB, SEAT TURN LOCK | ||||
| 72948-44020B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 72973C - COVER, FRONT SEAT TURN TABLE,NO.1 | ||||
| 72973-44010B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| 72973D - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-44030B0 |
SXN1# LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10861 | ||||
| 90333-40001 | ||||
| 90468-04157 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||

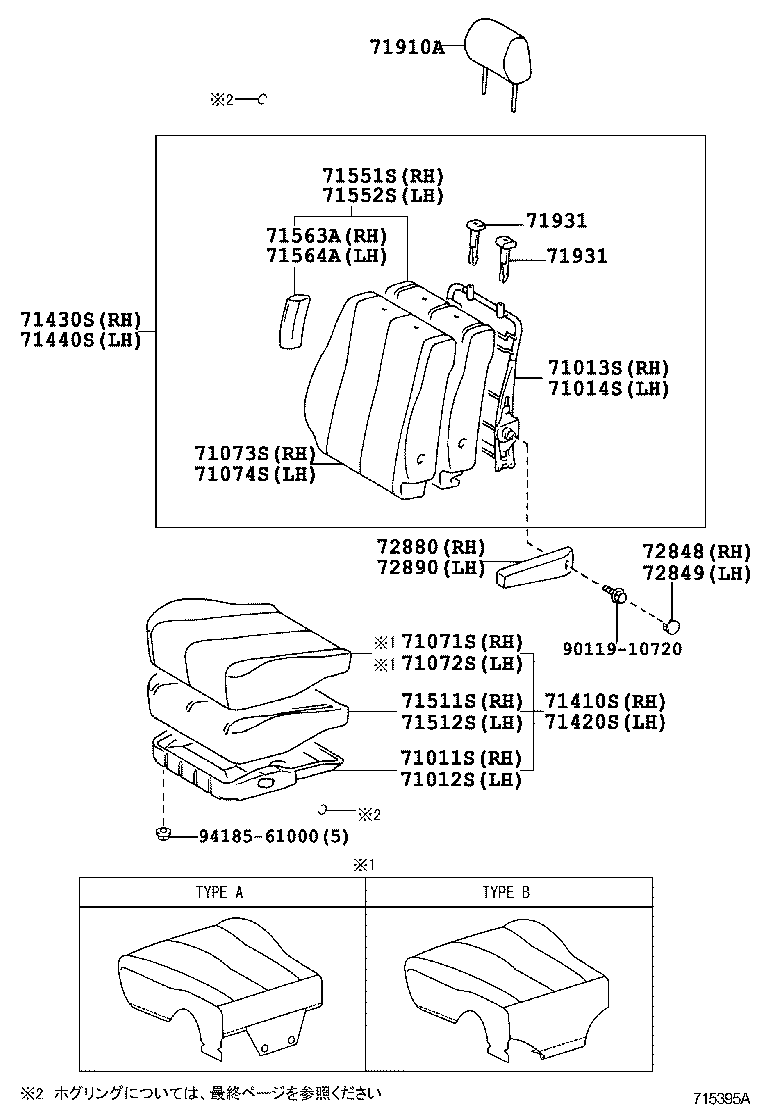

ILLUST NO. 1 OF 3(9807-0104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-44010 |
SXN1# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-44010 |
ACN1#,SXN1#..NOG,X |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-44030 |
SXN1# |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-44010 |
SXN1# |
1 | ||
| 71014-44020 |
SXN1# ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-44100B0 |
SXN1# ｼ-ﾄ = TYPE A-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44210B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44110B0 |
SXN1# ｼ-ﾄ = TYPE C-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44120B1 |
SXN1# ｼ-ﾄ = TYPE B-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44220B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44220B1 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44210B1 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-44220B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44120B1 |
SXN1# ｼ-ﾄ = TYPE B-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44110B0 |
SXN1# ｼ-ﾄ = TYPE C-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44210B1 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44100B0 |
SXN1# ｼ-ﾄ = TYPE A-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 71071-44220B1 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-44210B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-44230B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-44220B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-44140B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-44240B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-44250B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-44260B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-44130B0 |
SXN1# ***,ｼ-ﾄ = TYPE B-*104,LT. GRAY,TRIM1# |
1 | ||
| 71410-44110B0 |
SXN1# ***,ｼ-ﾄ = TYPE A-*104,LT. GRAY,TRIM1# |
1 | ||
| 71410-44220B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-44210B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-44120B0 |
SXN1# ***,ｼ-ﾄ = TYPE C-*104,LT. GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-44100B0 |
SXN1# ***,ｼ-ﾄ = TYPE A-*104,LT. GRAY,TRIM1# |
1 | ||
| 71420-44200B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-44210B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-44120B0 |
SXN1# ***,ｼ-ﾄ = TYPE B-*104,LT. GRAY,TRIM1# |
1 | ||
| 71420-44110B0 |
SXN1# ***,ｼ-ﾄ = TYPE C-*104,LT. GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-44230B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-44240B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-44160B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-44250B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE D-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-44260B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-44270B0 |
SXN1#..SU ***,ｼ-ﾄ = TYPE E-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-44030 |
SXN1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-44030 |
SXN1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-44040 |
ACN1#,SXN1#..NOG,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-44030 |
ACN1#,SXN1#..NOG,X |
1 | ||
| 71552-44040 |
ACN1#,SXN1#..NOG,X ｱﾘ(ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-44010 |
ACN1#,SXN1#..NOG,S |
1 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-44010 |
ACN1#,SXN1#..NOG,X |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-44190B0 |
SXN1#..SU ｼ-ﾄ = TYPE E-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-44180B0 |
SXN1#..SU ｼ-ﾄ = TYPE D-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B9 |
SXN1#..SU ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-28030B9 |
SXN1#..SU ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28030B6 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-28030B5 |
ACN1#,SXN15..S;SXN1#..STD..NOG ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B9 |
SXN1#..SU ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-28030B9 |
SXN1#..SU ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 72848 - CAP, NO.3 SEAT ARMREST | ||||
| 72848-44020B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-44030B1 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-44100B0 |
SXN1#..SU ｼ-ﾄ = TYPE D OR TYPE E-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-44030B0 |
SXN1#..SU BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10720 | ||||
| 94185-61000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
