SXN15H-AHSGK (1999)
Toyota Nadia
(9807-0104)EFI

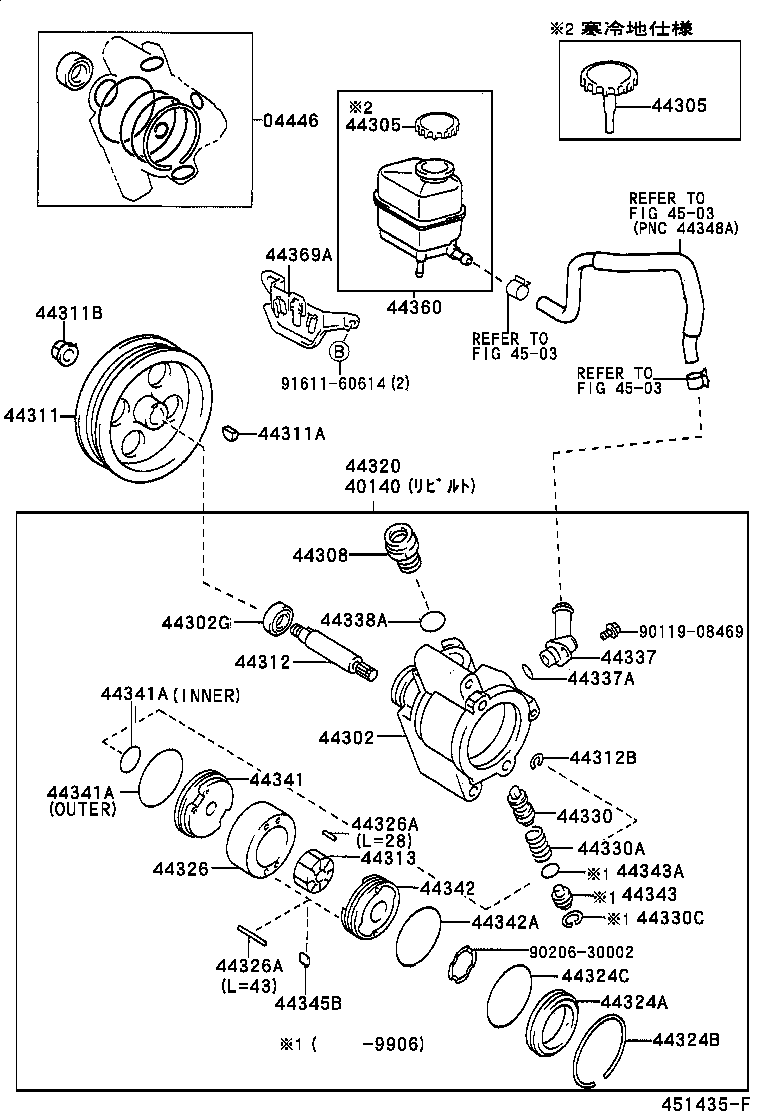

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-44010 |
SXN1#..EFI |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-44060 |
SXN1#..SU TOYODA KOKI |
1 | ||
| 40140-44070 |
SXN1#..SU TOYODA KOKI,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32030 |
SXN1#..EFI |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
SXN1# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44305-12030 |
SXN1#..EFI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-20041 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44305-12030 |
SXN1#..EFI |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-22050 |
SXN1# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-42010 |
SXN1# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
SXN1# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
SXN1#..SU;SXN10..D4 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
SXN1# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
SXN1# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
SXN1# ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
SXN1# ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
SXN1# ﾏｰｸ 1 |
1 | ||
| 44313-22080 |
SXN1# ﾏｰｸ 4 |
1 | ||
| 44313-22040 |
SXN1# ﾏｰｸ無し |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-44070 |
SXN1#..SU ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
SXN1# |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
SXN1# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
SXN1# |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30120 |
SXN1# ﾏｰｸ 2 |
1 | ||
| 44325-30130 |
SXN1# ﾏｰｸ 3 |
1 | ||
| 44325-30110 |
SXN1# ﾏｰｸ 1 |
1 | ||
| 44325-30140 |
SXN1# ﾏｰｸ 4 |
1 | ||
| 44325-30100 |
SXN1# ﾏｰｸ無し |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
SXN1# 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
SXN1# 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
SXN1# 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
SXN1# 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-20140 |
SXN1#..SU ﾏｰｸ B |
1 | ||
| 44330-20170 |
SXN1#..SU ﾏｰｸ E |
1 | ||
| 44330-20160 |
SXN1#..SU ﾏｰｸ D |
1 | ||
| 44330-20310 |
SXN1#..SU ﾏｰｸ A,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330-20180 |
SXN1#..SU ﾏｰｸ F |
1 | ||
| 44330-20130 |
SXN1#..SU ﾏｰｸ A |
1 | ||
| 44330-20330 |
SXN1#..SU ﾏｰｸ C,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330-20150 |
SXN1#..SU ﾏｰｸ C |
1 | ||
| 44330-20340 |
SXN1#..SU ﾏｰｸ D,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330-20360 |
SXN1#..SU ﾏｰｸ F,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330-20350 |
SXN1#..SU ﾏｰｸ E,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330-20320 |
SXN1#..SU ﾏｰｸ B,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
SXN1# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
SXN1#..EFI |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-20040 |
SXN1# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
SXN1# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
SXN1# 内径=19.2,外径=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-20010 |
SXN1#..SU |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25008 |
SXN1#..SU 内側 |
1 | ||
| 90301-53004 |
SXN1#..SU 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25008 |
SXN1#..SU 内側 |
1 | ||
| 90301-53004 |
SXN1#..SU 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-20010 |
SXN1#..SU |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53004 |
SXN1#..SU |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
SXN1#..EFI |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 90301-13012 |
SXN1#..EFI |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12030 |
SXN1# 長さ=14.993 |
10 | ||
| 44345-12020 |
SXN1# 長さ=14.995 |
10 | ||
| 44345-12010 |
SXN1# 長さ=14.997 |
10 | ||
| 44345-12050 |
SXN1# 長さ=14.989 |
10 | ||
| 44345-12040 |
SXN1# 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-20150 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 44360-20190 |
SXN1#..EFI |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-20020 |
SXN1# |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90206-30002 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
