SXN15H-AHSEK (2001)
Toyota Nadia
Production
Apr 2001
-
Aug 2002
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )

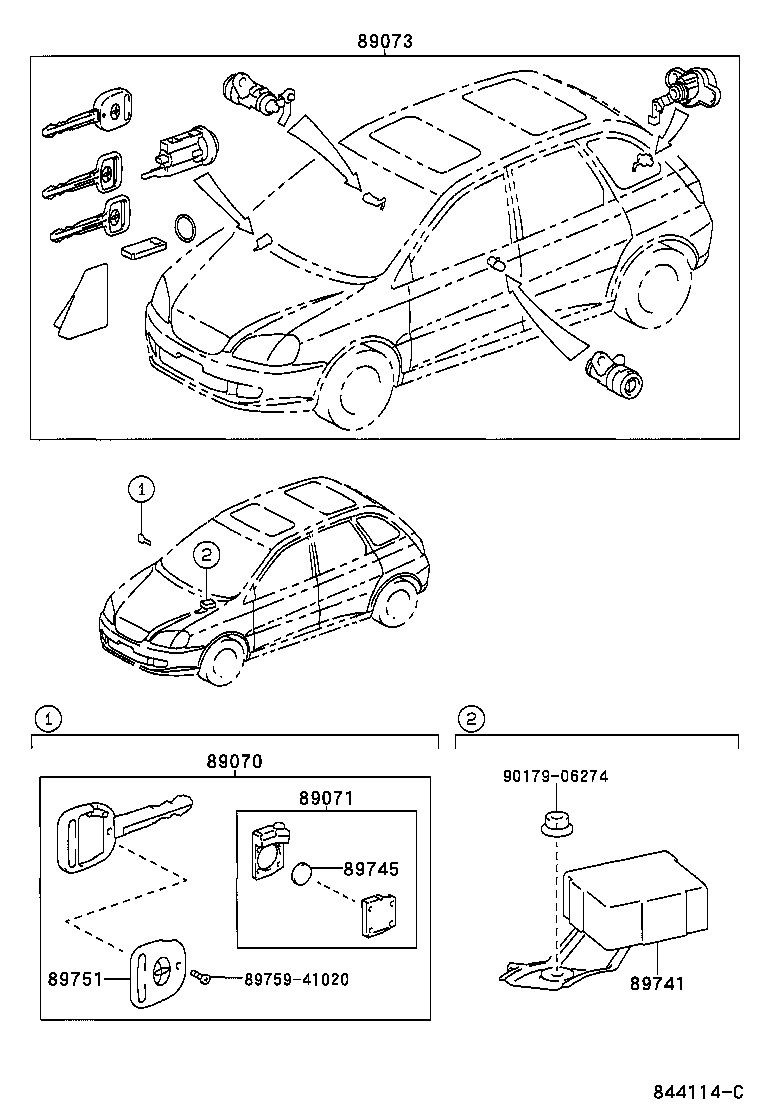

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-12011 |
ACN1#,SXN15 |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-12021 |
ACN1#,SXN15 |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-44010 |
ACN1#,SXN15 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-44090 |
ACN1#,SXN15 |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-26010 |
ACN1#,SXN15 |
1 | ||
| 89745-50010 |
SXN1# |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-44050 |
SXN1# |
1 | ||
| 89751-44010 |
ACN1#,SXN15 |
1 | ||
| Common parts | ||||
| 89759-41020 | ||||
| 90179-06274 | ||||
