SXN15H-AHSEK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

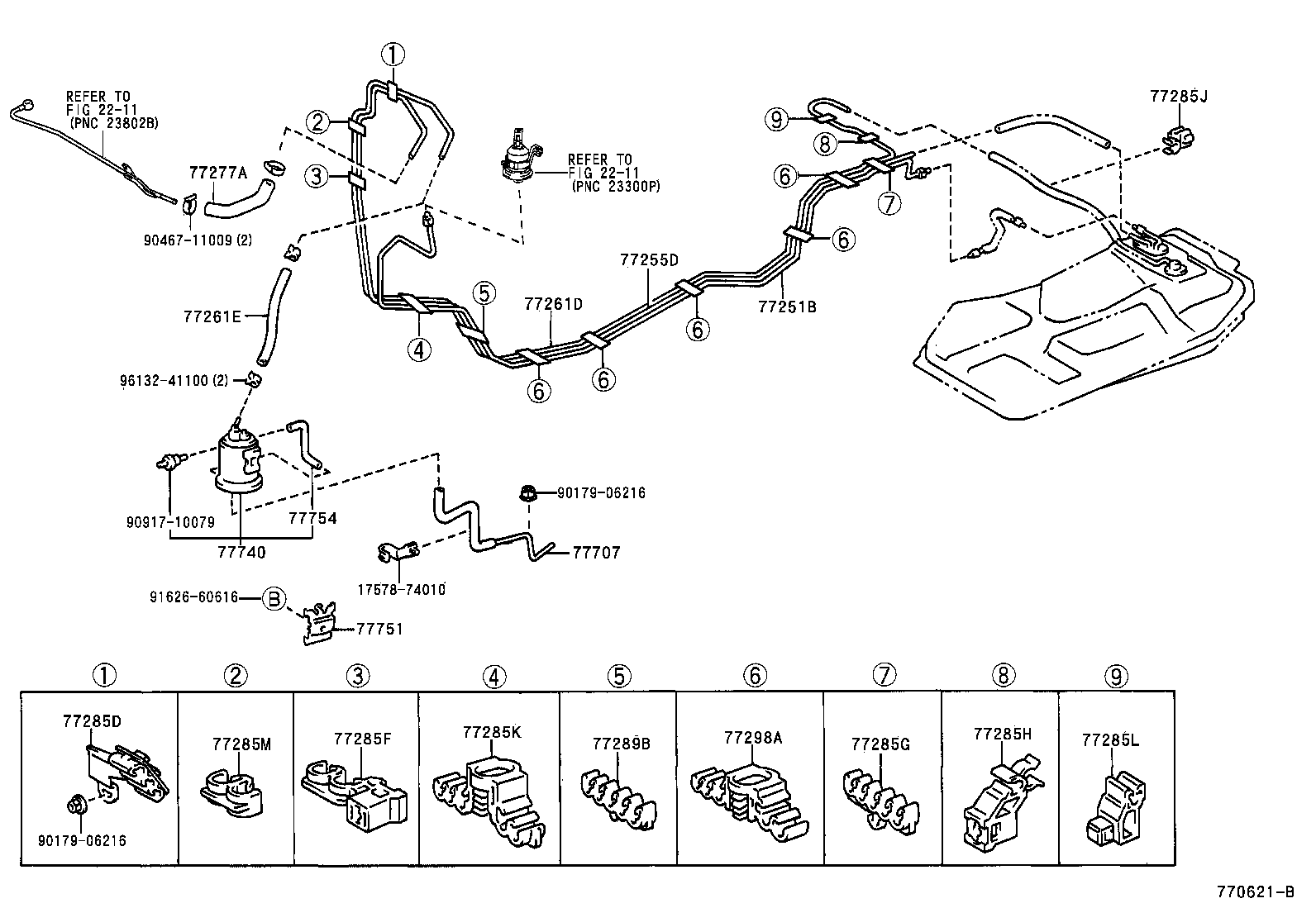

ILLUST NO. 2 OF 2(9807-0208)SXN1#

Click highlighted areas on diagram

diagram 1757874010 2211 2211 77251B 77255D 77261D 77261E 77277A 77285D 77285F 77285G 77285H 77285J 77285K 77285L 77285M 77289B 77298A 77707 77740 77751 77754 9017906216 9017906216 9046711009 9091710079 9162660616 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-44010

SXN10..EFI;ACN1#,SXN15

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-44010

ACN1#,SXN1#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

SXN1#

*H,L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12084

SXN1#

長さ=280

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-44100

ACN1#,SXN1#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-44110

ACN1#,SXN1#

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-44120

ACN1#,SXN1#

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-44130

ACN1#,SXN1#

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-44140

ACN1#,SXN1#

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-44150

ACN1#,SXN1#

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-44070

ACN1#,SXN1#

 1
77285M - CLAMP, FUEL TUBE, NO.1
77285-44080

ACN1#,SXN1#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-44010

ACN1#,SXN1#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-44020

ACN1#,SXN1#

 5
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-44020

SXN1#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-44010

SXN1#..EFI

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44010

SXN1#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-20370

SXN1#

 1
Common parts
17578-74010
90179-06216
90467-11009
90917-10079
91626-60616
96132-41100
Linked diagrams
2211
