SXN15-AHSQK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

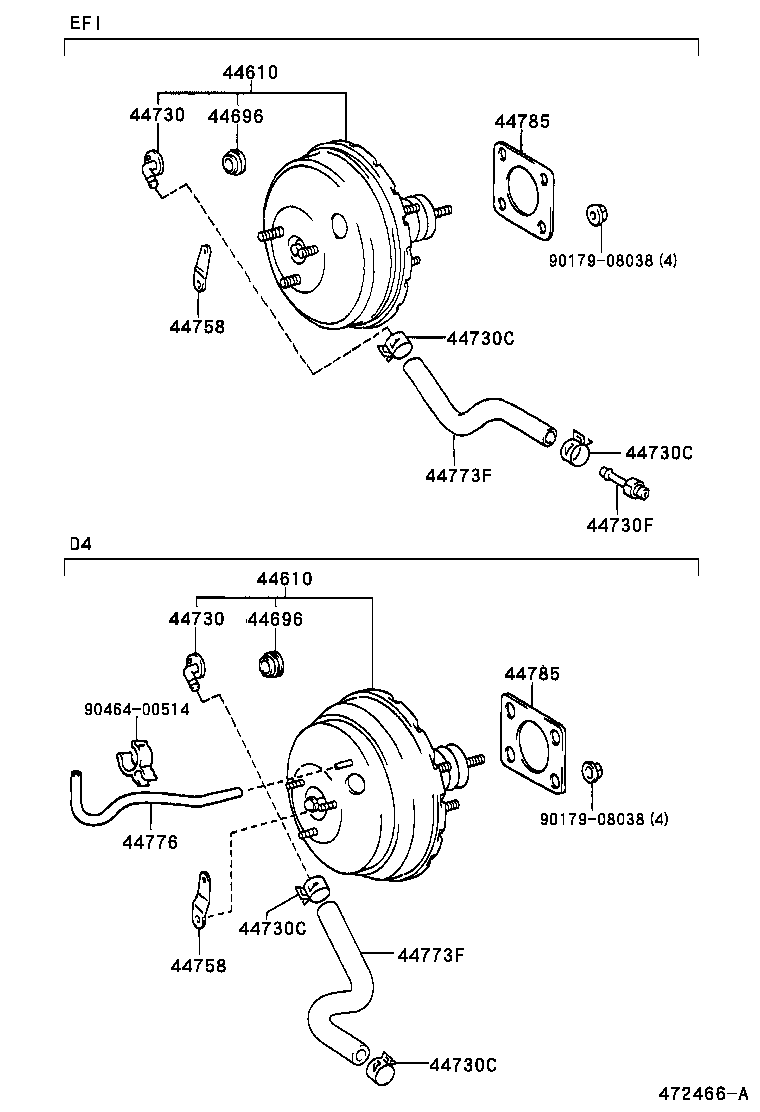

Click highlighted areas on diagram

diagram 44610 44610 44696 44696 44730 44730 44730C 44730C 44730C 44730C 44730F 44758 44758 44773F 44773F 44776 44785 44785 9017908038 9017908038 9046400514
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-44120

SXN1#..STD..EFI

 1
44610 - BOOSTER ASSY, BRAKE
44610-44120

SXN1#..STD..EFI

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACN1#,SXN1#

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACN1#,SXN1#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

ACN1#,SXN1#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

ACN1#,SXN1#

 1
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACN1#,SXN1#

 2
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACN1#,SXN1#

 2
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACN1#,SXN1#

 2
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

ACN1#,SXN1#

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SXN1#..EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-44020

SXN10..EFI;ACN1#,SXN15

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-44020

SXN10..EFI;ACN1#,SXN15

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-44010

SXN1#..STD..EFI

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-44010

SXN1#..STD..EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ACN1#,SXN1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ACN1#,SXN1#

 1
Common parts
90179-08038
90464-00514
