SXN15-AHSEK (1998)

Toyota Nadia

Production Jul 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

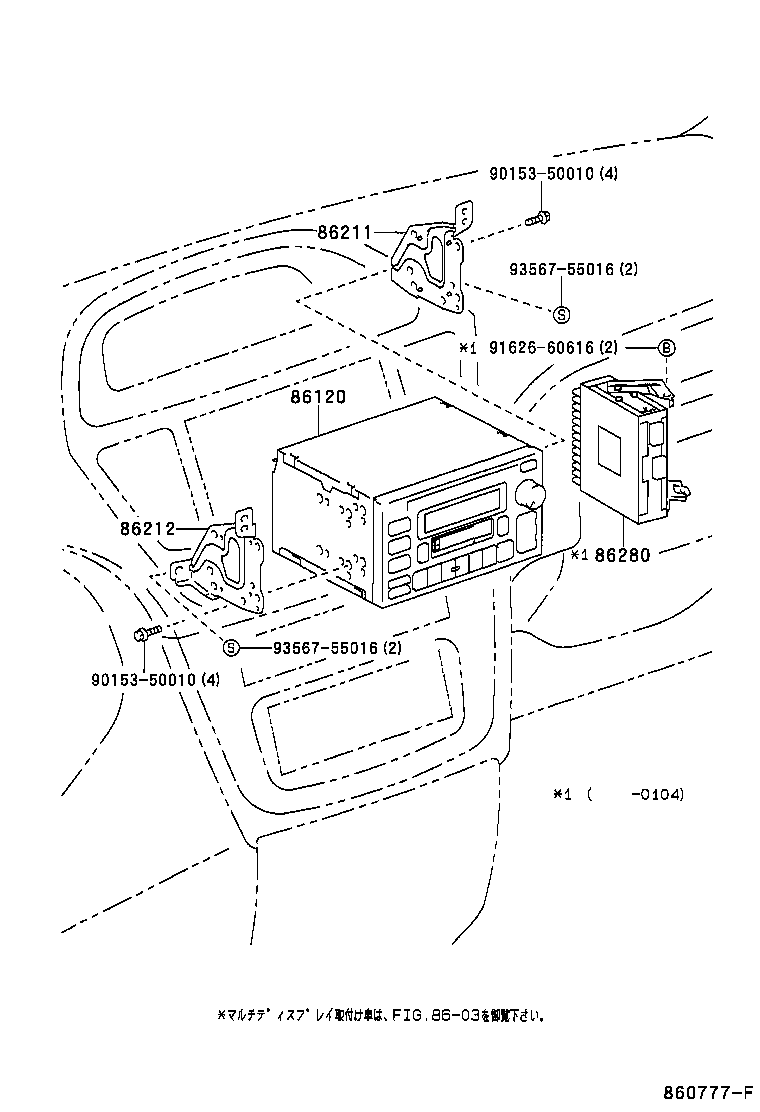

ILLUST NO. 1 OF 3(9807- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86280 9015350010 9015350010 9162660616 9356755016 9356755016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2A340

SXN1#

MATSUSHITA,ID=55823,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-2B530

SXN1#..STD..NOG

MATSUSHITA,ID=55403,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-26120

SXN1#

FUJITSU TEN,ID=15423,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-44030

SXN1#

 1
86212 - BRACKET, RADIO, NO.2
86212-44030

SXN1#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-44040

SXN1#

 1
Common parts
90153-50010
91626-60616
93567-55016

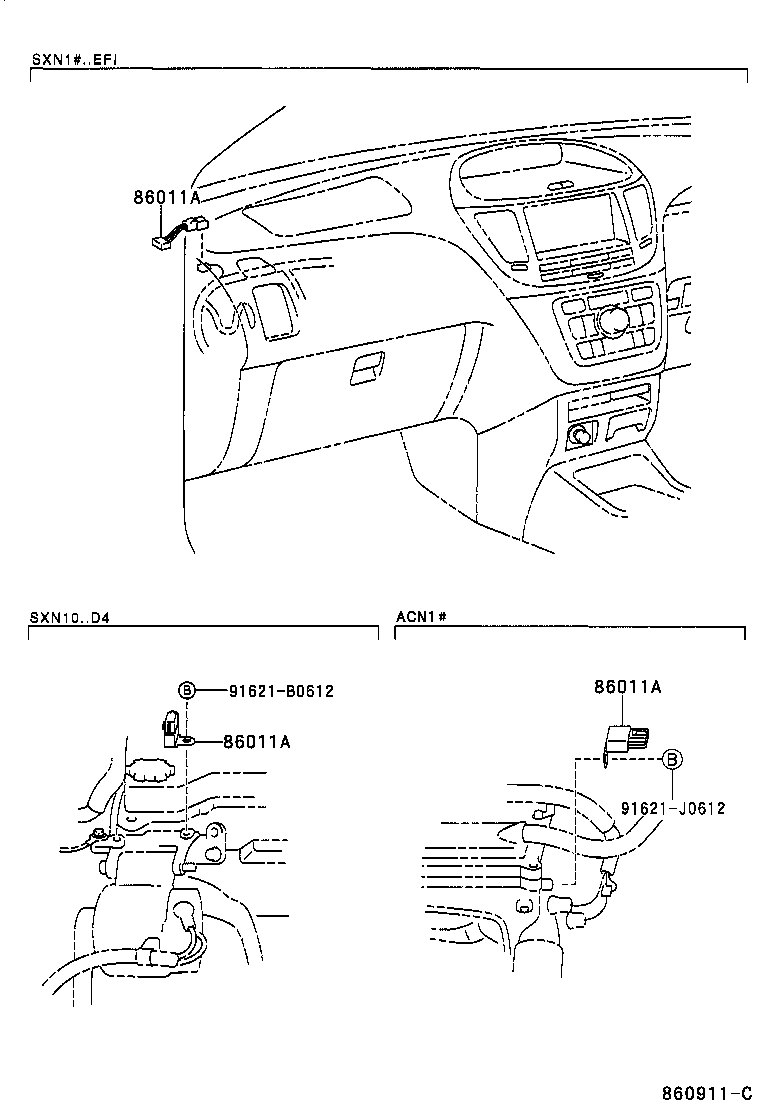

ILLUST NO. 3 OF 3(9807- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ-

diagram 86011A 86011A 86011A 91621B0612 91621J0612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04116

SXN1#..EFI

 1
86011A - CONDENSER, RADIO SETTING
90980-04116

SXN1#..EFI

 1
86011A - CONDENSER, RADIO SETTING
90980-04116

SXN1#..EFI

 1
Common parts
91621-B0612
91621-J0612

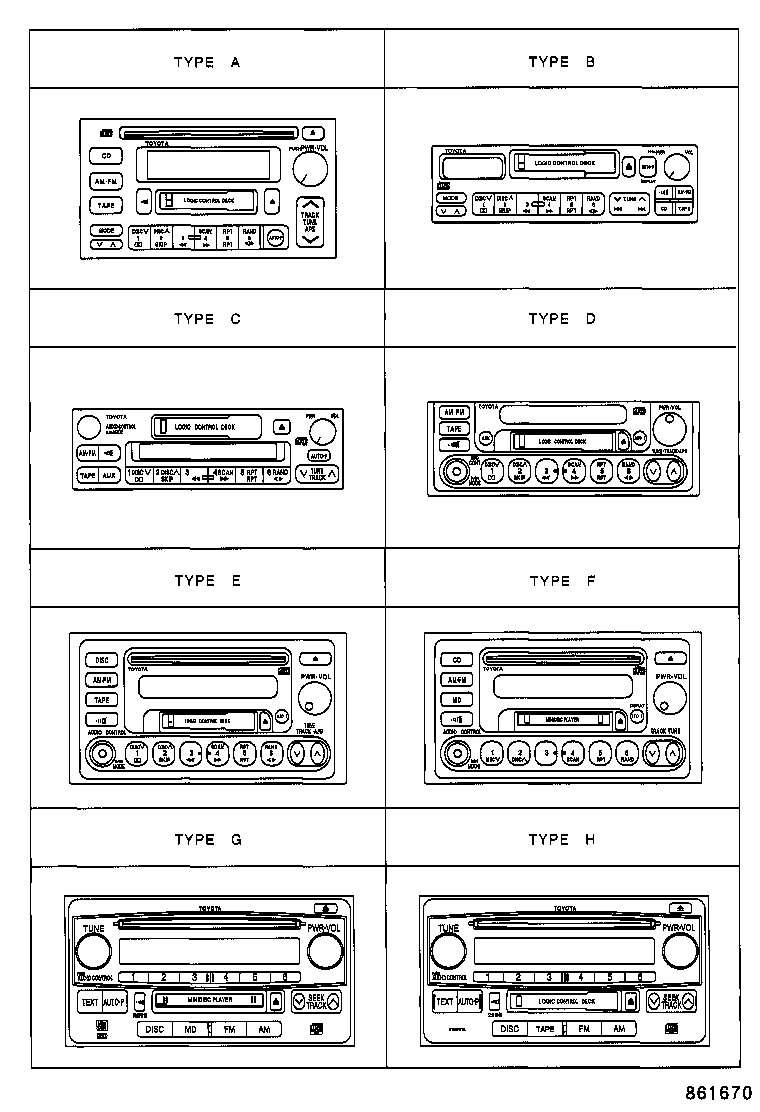

ILLUST NO. 2 OF 3(9807- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
