SXN15-AHSEK (1998)
Toyota Nadia

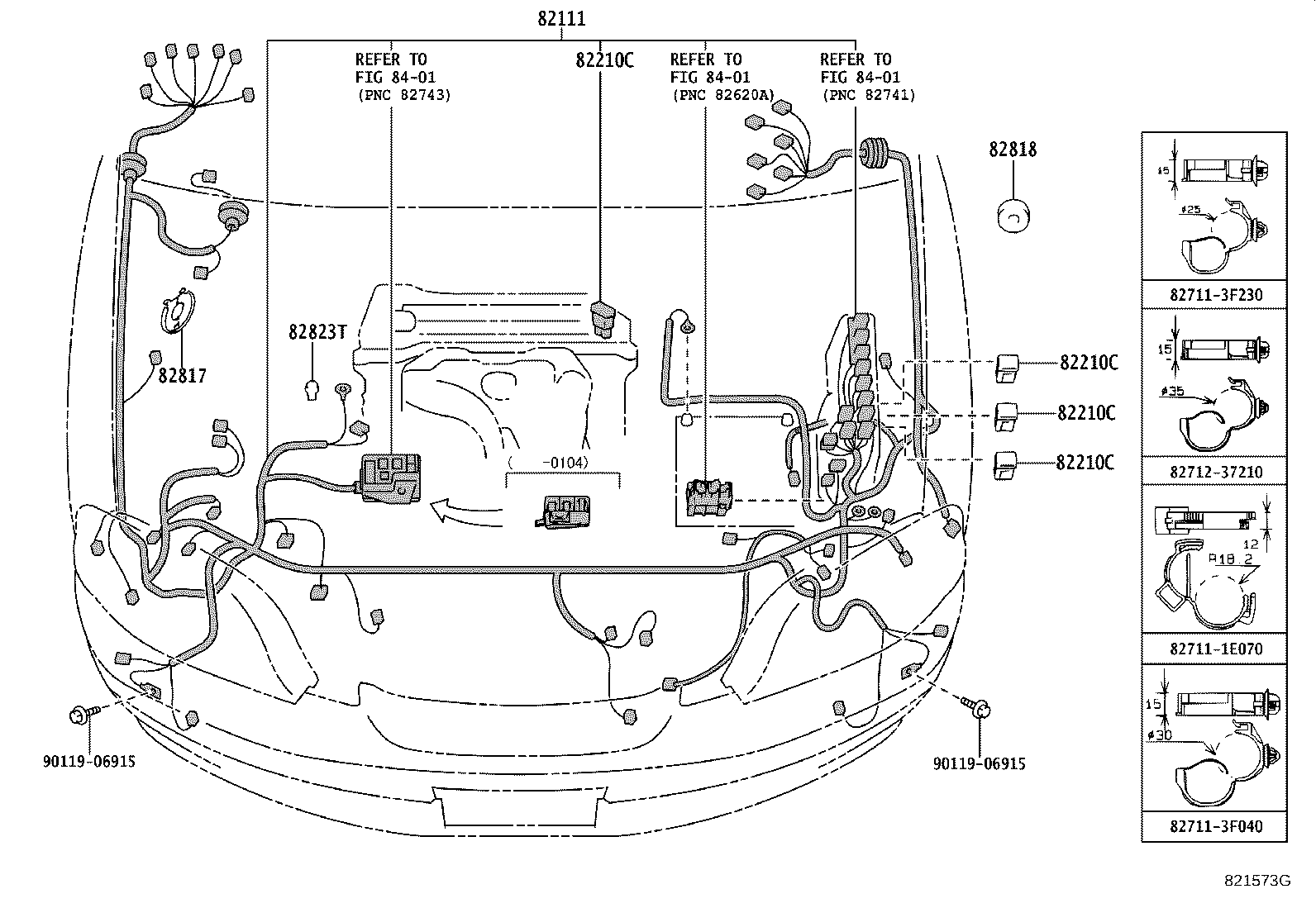

ILLUST NO. 1 OF 9(9807- )
ｴﾝｼﾞﾝﾙｰﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-44520 |
SXN15..STD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
SXN1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
ACN1#,SXN1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
SXN1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
ACN1#,SXN1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
ACN1#,SXN1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
ACN10,SXN1# 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
SXN1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
ACN1#,SXN1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
SXN1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
ACN1#,SXN1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
ACN1#,SXN1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
ACN10,SXN1# 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
SXN1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
ACN1#,SXN1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
SXN1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
ACN1#,SXN1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
ACN1#,SXN1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
ACN10,SXN1# 60A,ｵｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
SXN1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
ACN1#,SXN1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
SXN1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
ACN1#,SXN1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
ACN1#,SXN1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
ACN10,SXN1# 60A,ｵｽ端子,黄 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95702 |
ACN1#,SXN1# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-44010 |
ACN1#,SXN1# |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82712-37210 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

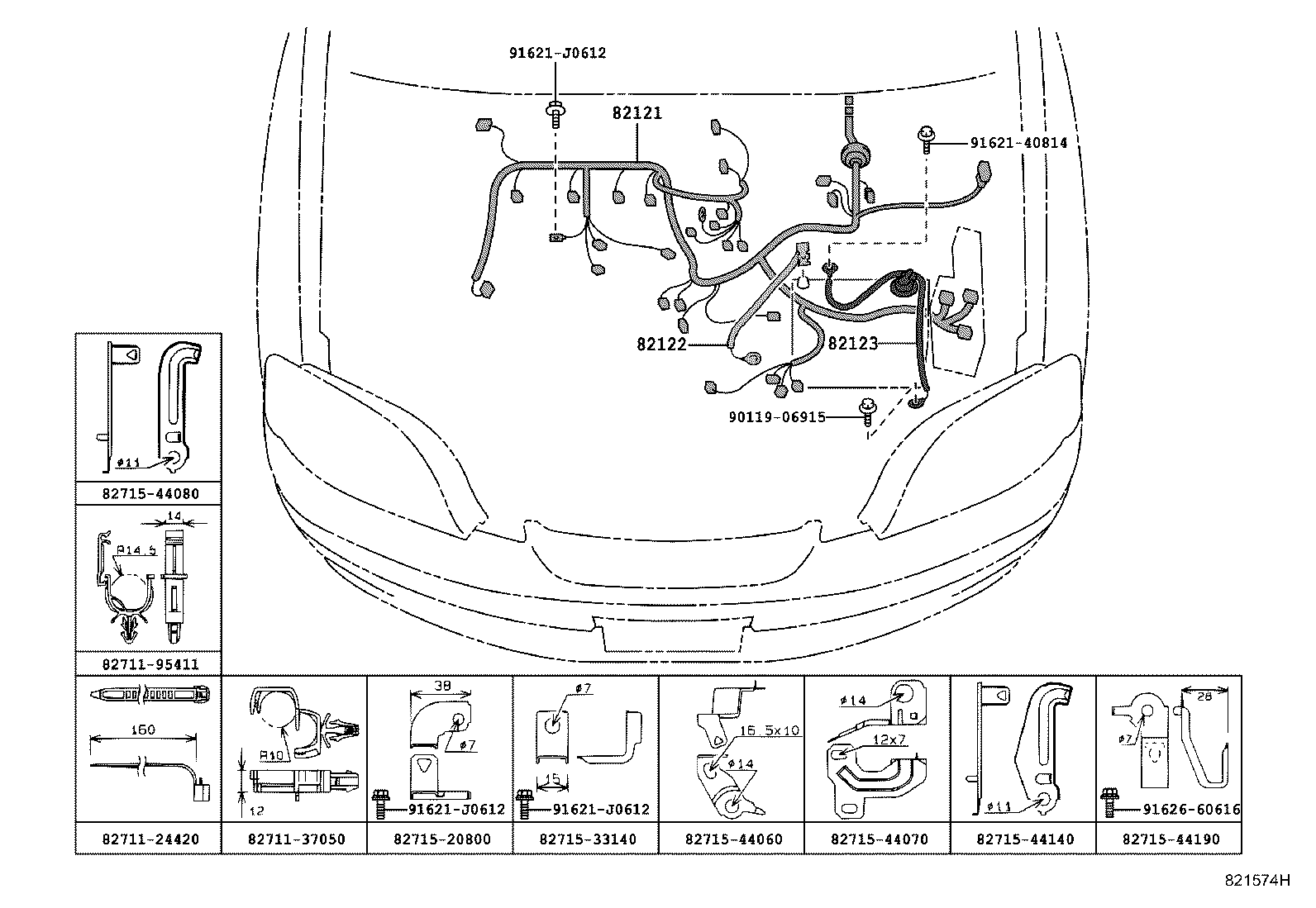

ILLUST NO. 2 OF 9(9807-0208)EFI
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-44260 |
SXN15..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-44030 |
SXN1#..STD |
1 | ||
| 82122-44040 |
ACN1#;SXN1#..SU;SXN15..STD..(L,S,X) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-44040 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-37050 | ||||
| 82711-95411 | ||||
| 82715-20800 | ||||
| 82715-33140 | ||||
| 82715-44060 | ||||
| 82715-44070 | ||||
| 82715-44080 | ||||
| 82715-44140 | ||||
| 82715-44190 | ||||
| 90119-06915 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||
| 91626-60616 | ||||
ILLUST NO. 3 OF 9(9807- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-44710 |
SXN15 L ｾﾚｸｼﾖﾝ |
1 | ||
| 82131-44700 |
SXN15 |
1 | ||
| 82131-44760 |
SXN15 L ｾﾚｸｼﾖﾝ & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82131-44750 |
SXN15 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82131-44701 |
SXN15 |
1 | ||
| 82131-44751 |
SXN15..STD ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82131-44761 |
SXN15..STD L ｾﾚｸｼﾖﾝ & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82131-44711 |
SXN15..STD L ｾﾚｸｼﾖﾝ |
1 | ||
| 82135-44030 |
SXN15..STD ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ 2 ﾅﾋﾞﾊﾞ-ｼﾞﾖﾝ *(D) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-44290 |
SXN1#..STD ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ 2 ﾅﾋﾞﾊﾞ-ｼﾞﾖﾝ *(D) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82132-44170 |
SXN1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82132-44180 |
SXN1# ｱﾘ(ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82132-44160 |
SXN1# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
SXN1# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
ACN1#,SXN1# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
SXN1# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
ACN1#,SXN1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
ACN1#,SXN1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
ACN10,SXN1# 60A,ｵｽ端子,黄 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-44060 |
ACN1#,SXN1# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-44130 |
SXN1# |
2 | ||
| 82666-44130 |
ACN1#,SXN1# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-44140 |
SXN1# |
2 | ||
| 82666-44140 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82712-44020 | ||||
| 82712-44170 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

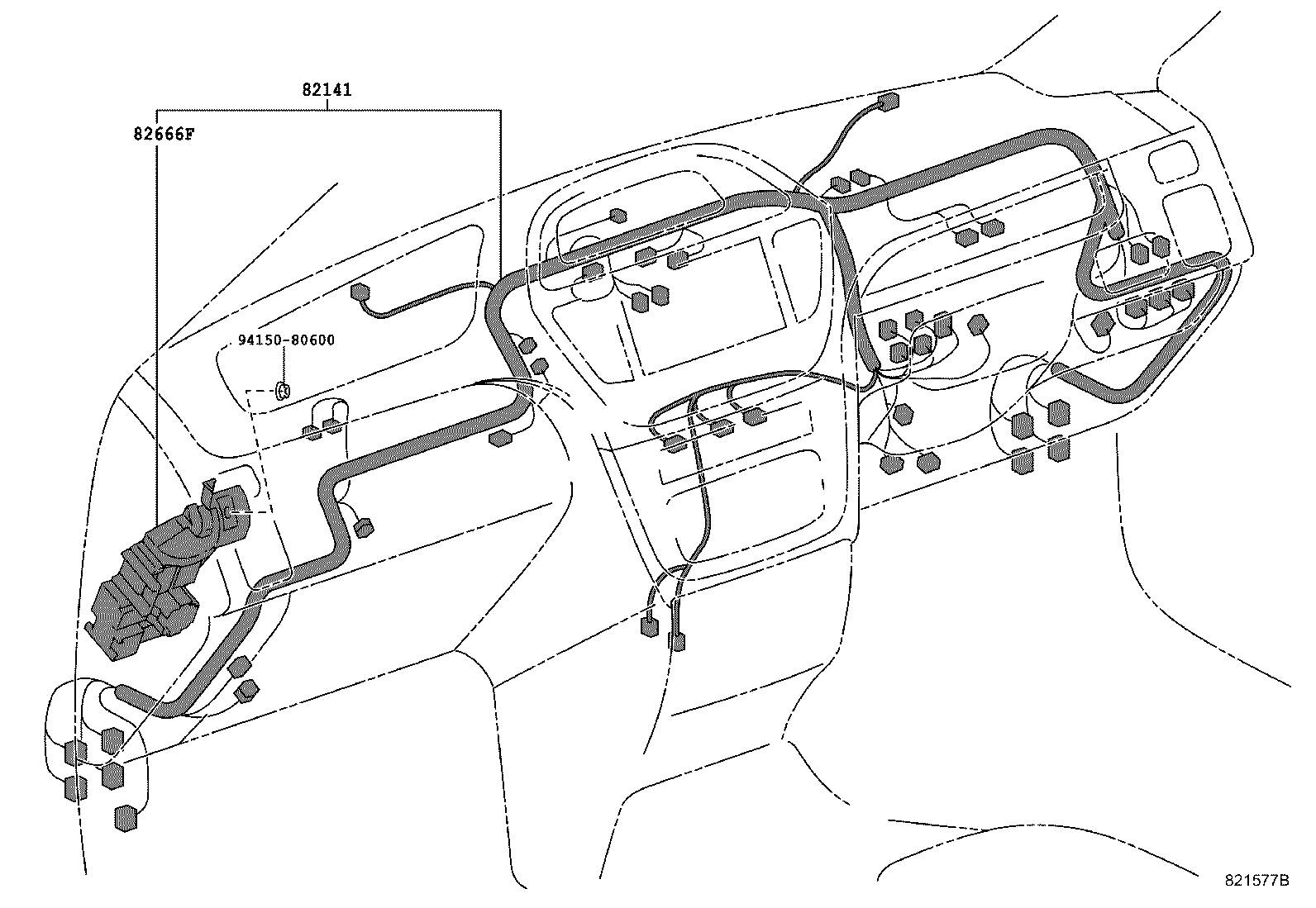

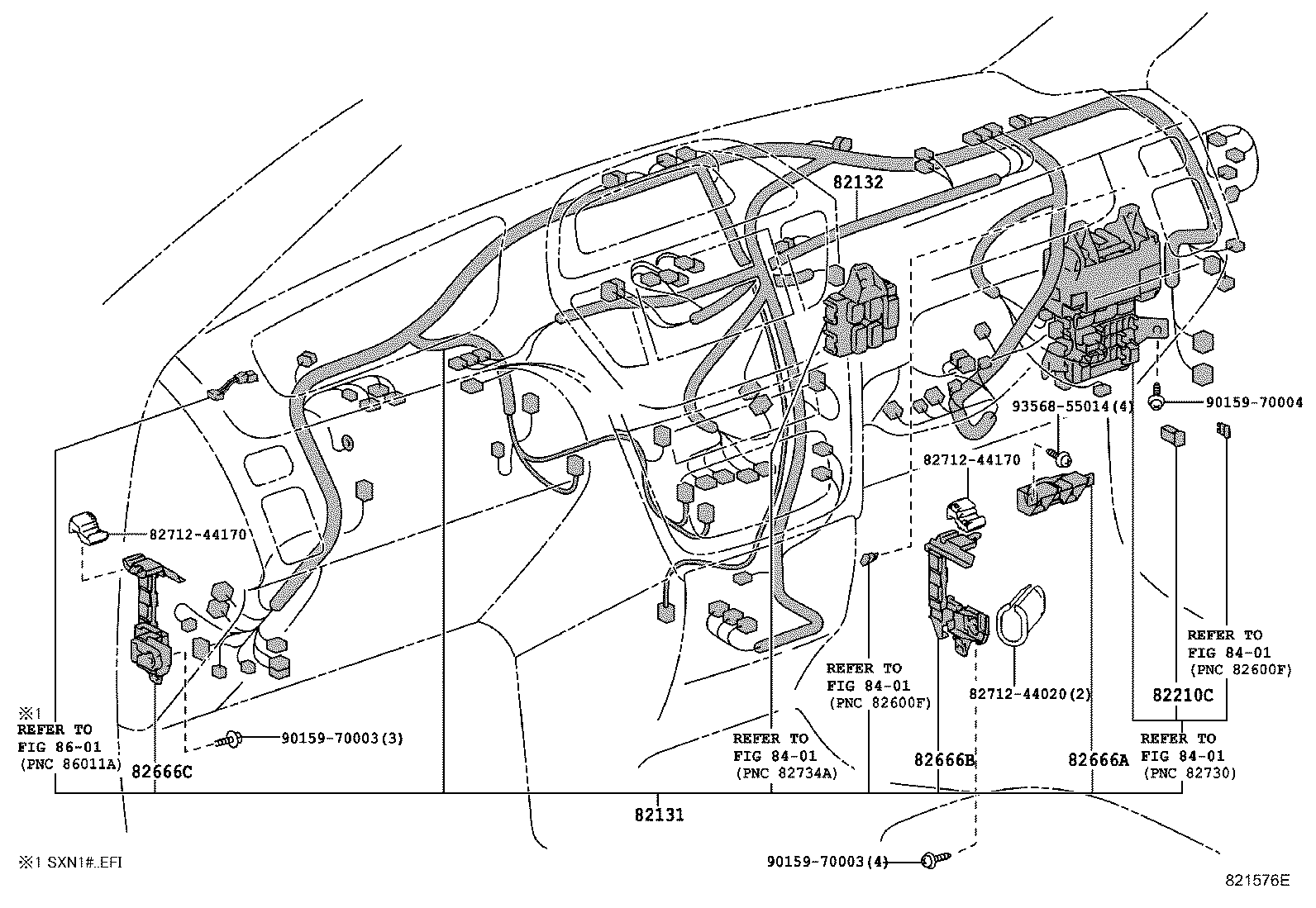

ILLUST NO. 4 OF 9(9807- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-44520 |
SXN1#..STD..EFI ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82141-44500 |
SXN15..STD ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-44150 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||

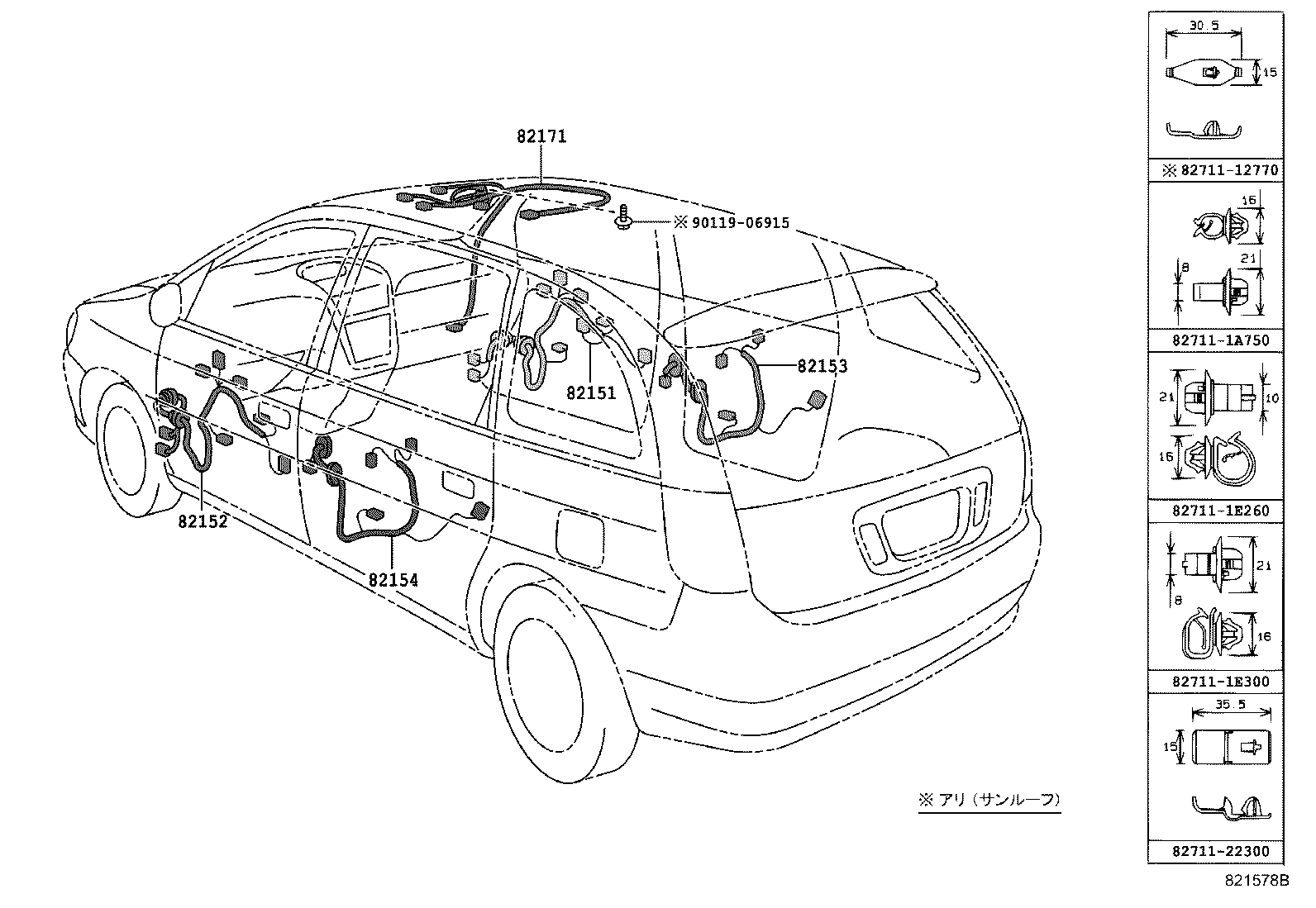

ILLUST NO. 5 OF 9(9807- )
ﾄﾞｱ & ﾙｰﾌ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-44100 |
SXN1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151-44090 |
SXN1# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-44090 |
SXN1# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152-44080 |
SXN1# |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-44040 |
SXN1# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-44040 |
SXN1# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-44090 |
ACN1#,SXN1# ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-44080 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 82711-1A750 | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-22300 | ||||
| 90119-06915 | ||||

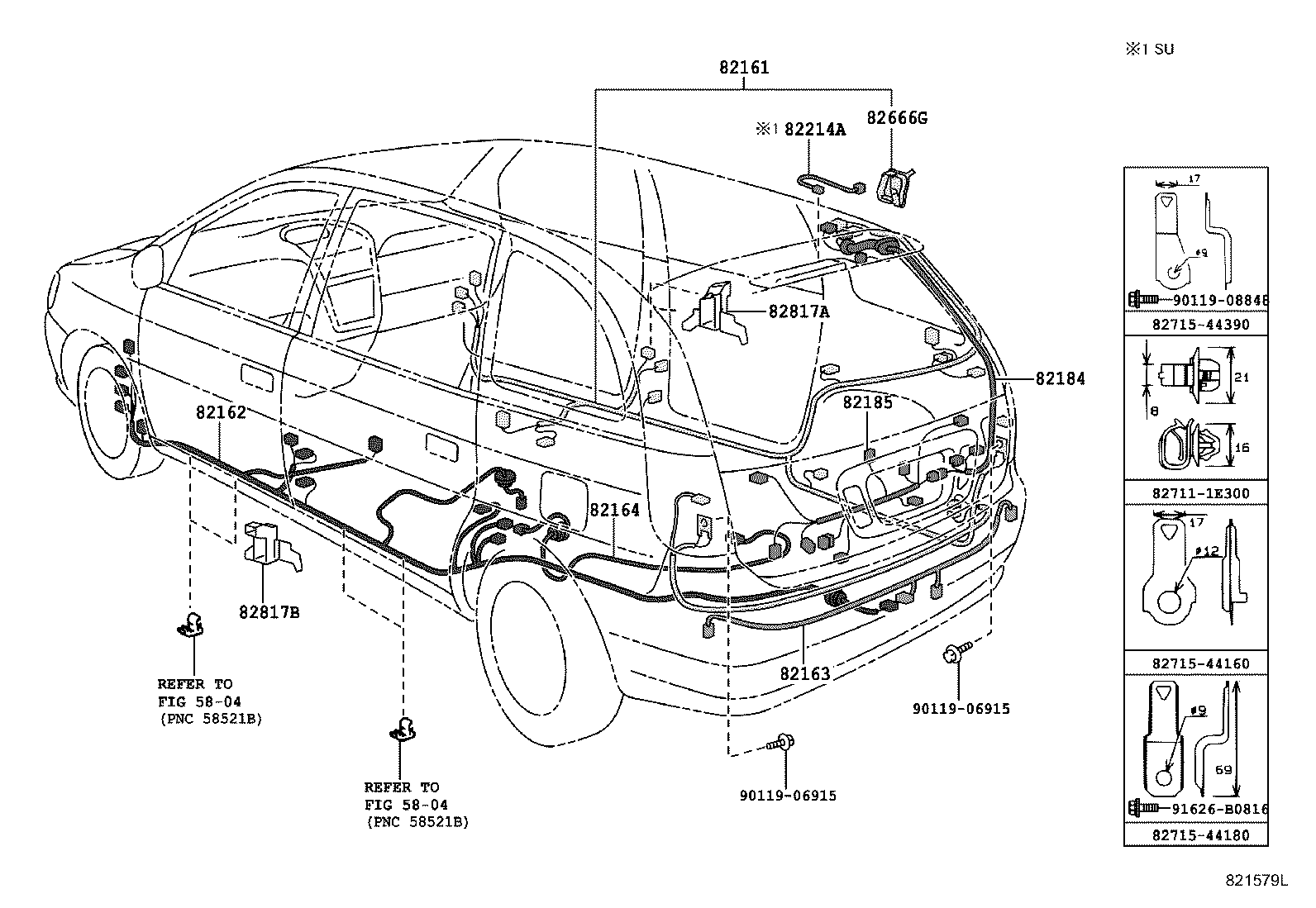

ILLUST NO. 6 OF 9(9807- )
ﾌﾛｱ & ﾗﾂｹｰｼﾞ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-44150 |
SXN15..STD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-44180 |
SXN15..STD |
1 | ||
| 82162-44190 |
SXN15..STD ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-44030 |
ACN1#,SXN1#..STD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-44011 |
ACN15,SXN15..STD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-44060 |
SXN1# |
1 | ||
| 82184-44080 |
SXN1#..STD ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82184-44070 |
SXN1#..STD ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82184-44070 |
SXN1#..STD ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ 2 ﾅﾋﾞﾊﾞ-ｼﾞﾖﾝ *(D) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-44060 |
ACN1#,SXN1# |
1 | ||
| 82185-44070 |
SXN1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82185-44080 |
SXN1# ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82185-44080 |
SXN1#..STD ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ 2 ﾅﾋﾞﾊﾞ-ｼﾞﾖﾝ *(D) & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-44160 |
ACN10..S,X;ACN15,SXN1#;ACN10..STD..L |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-44030 |
ACN10..S,X;ACN15,SXN1#;ACN10..STD..L |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-44060 |
ACN1#,SXN1# |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 82715-44160 | ||||
| 82715-44180 | ||||
| 82715-44390 | ||||
| 90119-06915 | ||||
| 90119-08848 | ||||
| 91626-B0816 | ||||
| Linked diagrams | ||||
| 5804 | ||||

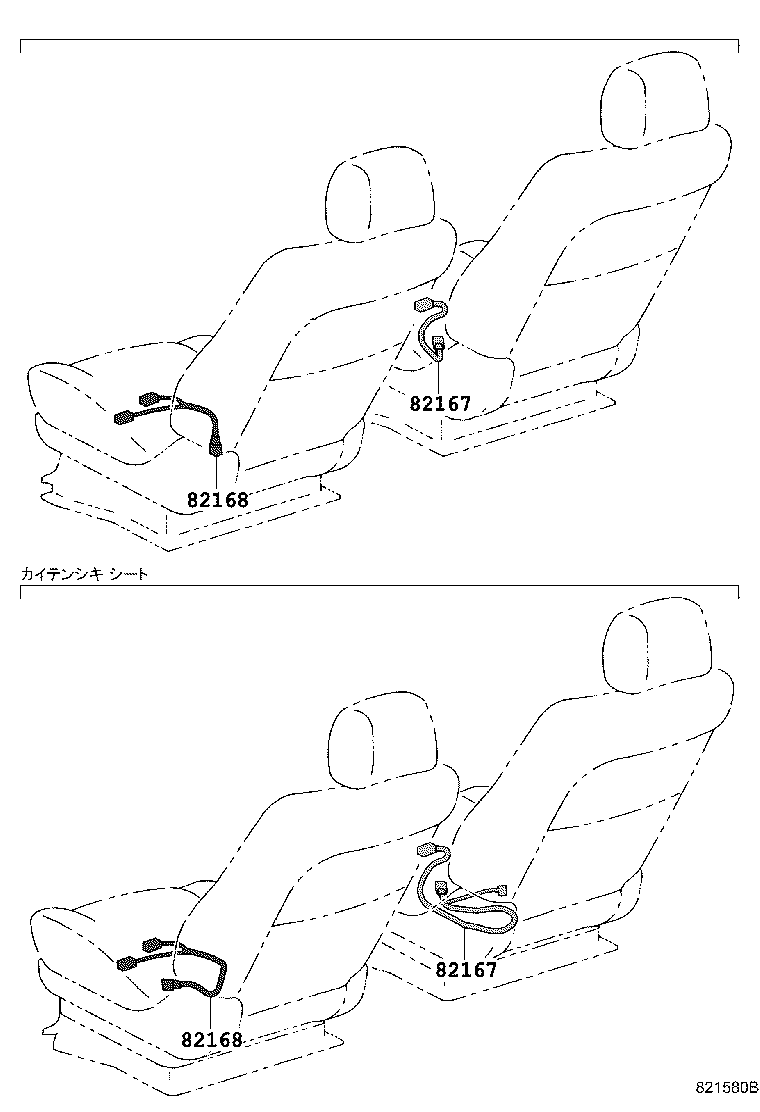

ILLUST NO. 7 OF 9(9807-0104)
ｼｰﾄ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-44070 |
ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X |
1 | ||
| 82167-44060 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-44070 |
ACN10,SXN15..STD..L;ACN10,SXN1#..NOG,S,X |
1 | ||
| 82167-44060 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-44020 |
SXN1# |
1 | ||
| 82168-44010 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-44020 |
SXN1# |
1 | ||
| 82168-44010 |
SXN1# ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||

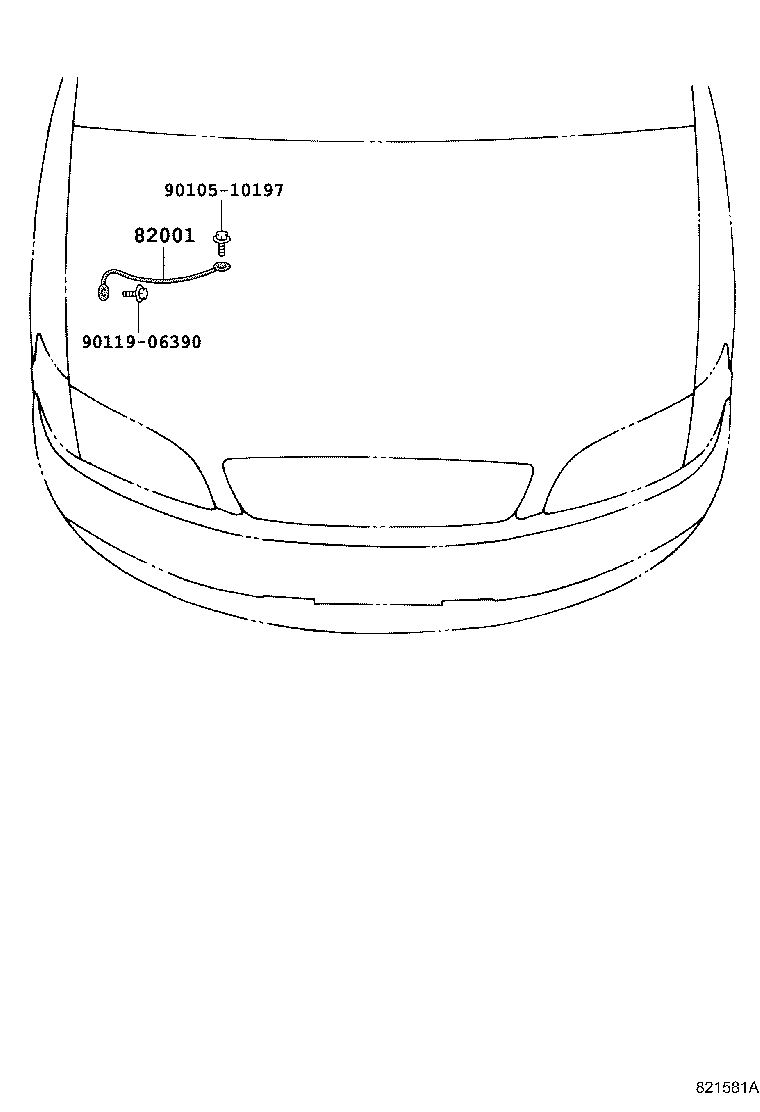

ILLUST NO. 8 OF 9(9807-0208)SXN1#
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07343 |
SXN1#..EFI |
1 | ||
| Common parts | ||||
| 90105-10197 | ||||
| 90119-06390 | ||||

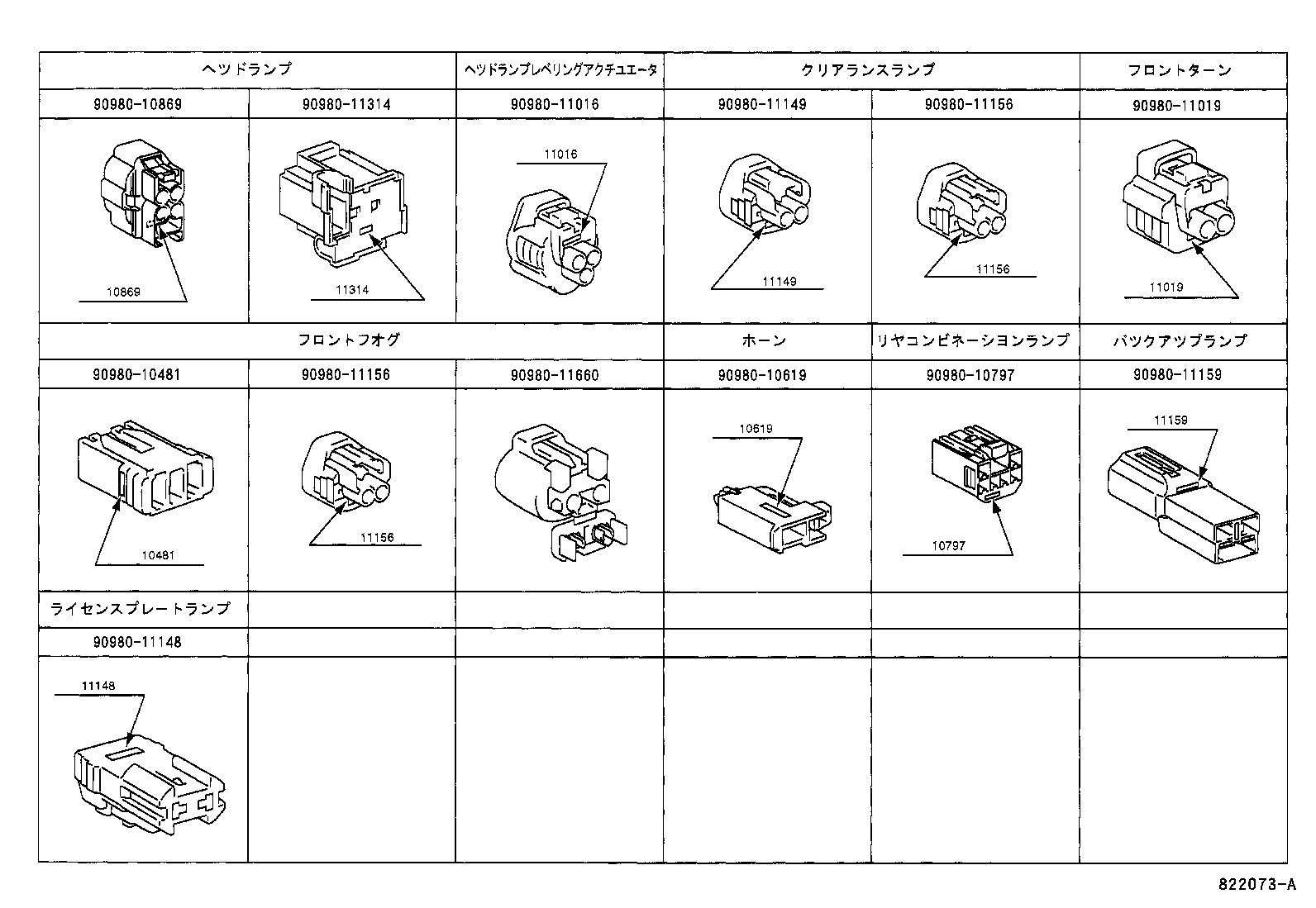

ILLUST NO. 9 OF 9(9807- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10869 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
