SXN15-AHSEK (1998)

Toyota Nadia

Production Jul 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807- )

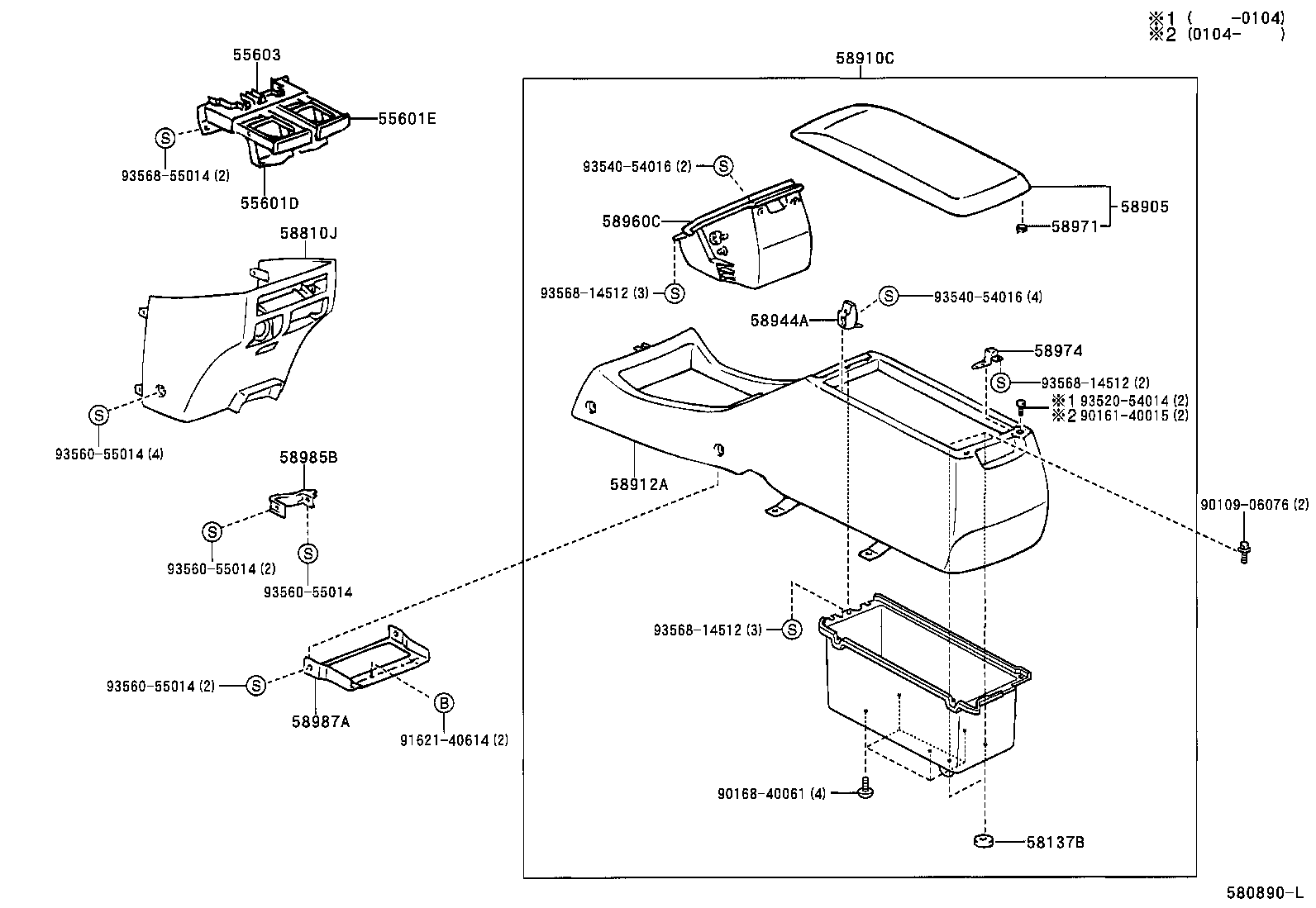

Click highlighted areas on diagram

diagram 55601D 55601E 55603 58137B 58810J 58905 58910C 58912A 58944A 58960C 58971 58974 58985B 58987A 9010906076 9016140015 9016840061 9162140614 9352054014 9354054016 9354054016 9356055014 9356055014 9356055014 9356055014 9356814512 9356814512 9356814512 9356855014
Part # Description Qty Price
55601D - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH
55601-44010A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 1
55601-44010B2

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 1
55601E - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, RH
55601-44030A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 1
55601-44030B2

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-44010

ACN1#,SXN1#

 1
58137B - SEAL, FRONT FLOOR HOLE
58137-44010

ACN1#,SXN1#..L,NOG,X

 2
58810J - BOX ASSY, CONSOLE
58810-44060B0

SXN1#

ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙﾎﾞﾂｸｽ),LT.GRAY,TRIM1#

 1
58810-44050B2

ACN1#,SXN1#..NOG,S

ｱﾘ(ﾃﾚﾋﾞ),LT.GRAY,TRIM1#

 1
58810-44050A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N) & ｱﾘ(ﾃﾚﾋﾞ),IVORY,TRIM00

 1
58810-44060A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N) & ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙﾎﾞﾂｸｽ),IVORY,TRIM00

 1
58810-44010A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 1
58810-44070B0

SXN1#

ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙﾎﾞﾂｸｽ & ﾃﾚﾋﾞ),LT.GRAY,TRIM1#

 1
58810-44010B2

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 1
58810-44070A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N) & ｱﾘ(ﾘﾔ ｺﾝｿ-ﾙﾎﾞﾂｸｽ & ﾃﾚﾋﾞ),IVORY,TRIM00

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-44020B1

SXN1#..STD

ｱﾘ(ﾓｸﾒ),LT.GRAY,TRIM1#

 1
58905-44050B0

SXN1#..STD..NOG

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,GRAY

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-44030B1

SXN1#..STD

ｱﾘ(ﾓｸﾒ),LT.GRAY,TRIM1#

 1
58910-44080B0

SXN1#..STD..NOG

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ｱﾘ(ﾓｸﾒ),GRAY

 1
58910-44070B0

SXN1#..STD..NOG

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,GRAY

 1
58912A - BOX, REAR CONSOLE
58911-44030B0

SXN1#

LT.GRAY,TRIM1#

 1
58911-44030A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 1
58944A - COVER, CONSOLE, REAR
58944-44010B0

SXN1#

LT.GRAY,TRIM1#

 2
58944-44010A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 2
58960C - HOLDER ASSY, CASSETTE CASE
58960-44010B0

SXN1#

LT.GRAY,TRIM1#

 1
58960-44020B0

SXN1#..STD

L ｾﾚｸｼﾖﾝ*(L) & ﾓｸﾒ,LT.GRAY,TRIM1#

 1
58960-44020A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N) & ﾓｸﾒ,IVORY,TRIM00

 1
58960-44010A0

SXN1#..STD..NOG

ｽﾍﾟｼﾔﾙ ｴﾃﾞｲｼﾖﾝ 2 *(N),IVORY,TRIM00

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-26010

ACN1#..L,X;SXN15..STD..(L,X);SXN1#..SU..(L,NOG,X)

 1
58974 - PLATE, CONSOLE COMPARTMENT DOOR LOCK
58974-44020

ACN1#,SXN1#..L,NOG,X

 1
58985B - RETAINER, CONSOLE BOX, NO.1
58985-44030

ACN1#,SXN1#..L,NOG,X

 1
58987A - RETAINER, CONSOLE BOX, NO.2
58987-44010

ACN1#,SXN1#..L,NOG,X

 1
Common parts
90109-06076
90161-40015
90168-40061
91621-40614
93520-54014
93540-54016
93560-55014
93568-14512
93568-55014
