SXN15-AHSEK (1998)

Toyota Nadia

Production Jul 1998 - Apr 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0104)SXN15

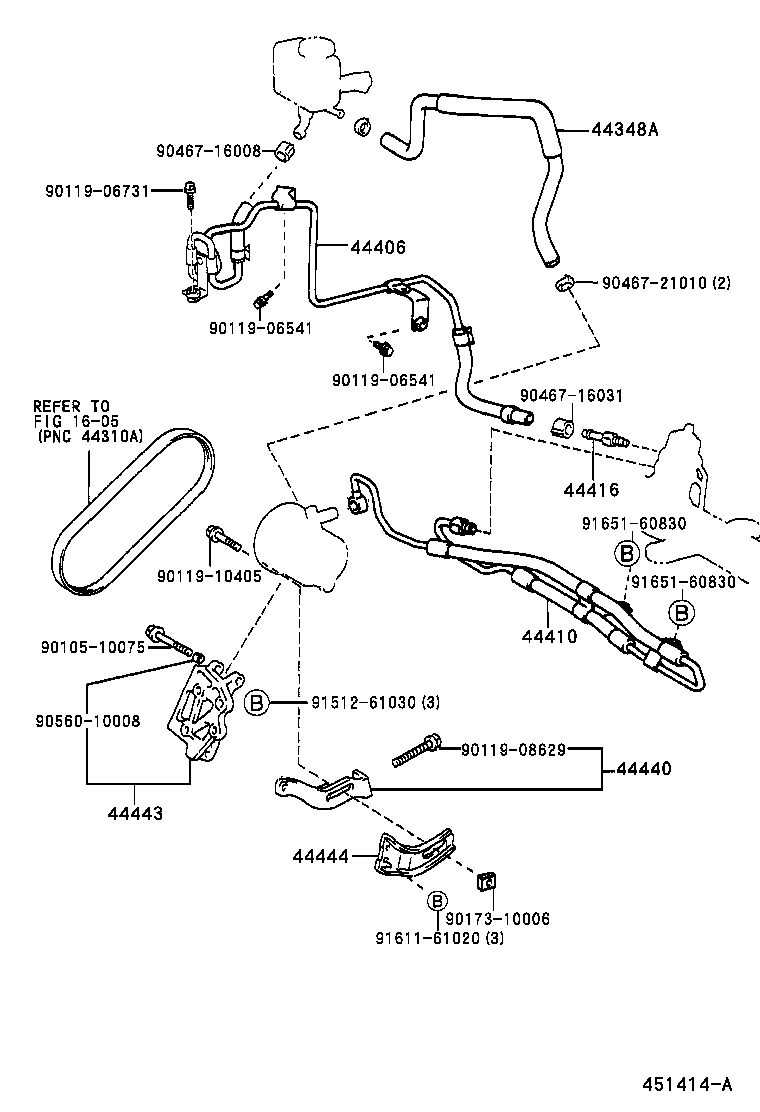

Click highlighted areas on diagram

diagram 1605 44348A 44406 44410 44416 44440 44443 44444 9010510075 9011906541 9011906541 9011906731 9011908629 9011910405 9017310006 9046716008 9046716031 9046721010 9056010008 9151261030 9161161020 9165160830 9165160830
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-44020

SXN15..STD

 1
44406 - TUBE SUB-ASSY, RETURN
44406-44021

SXN15..STD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-44020

SXN15

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

ACN1#,SXN1#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

SXN15

 1
44443 - BRACKET, PUMP
44443-20050

SXN1#

 1
44444 - STAY, PUMP, REAR
44444-20030

SXN1#

 1
Common parts
90105-10075
90119-06541
90119-06731
90119-08629
90119-10405
90173-10006
90467-16008
90467-16031
90467-21010
90560-10008
91512-61030
91611-61020
91651-60830
Linked diagrams
1605
