SXN15-AHSEK (2001)

Toyota Nadia

Production Apr 2001 - Aug 2002
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9807-0208)SXN1#

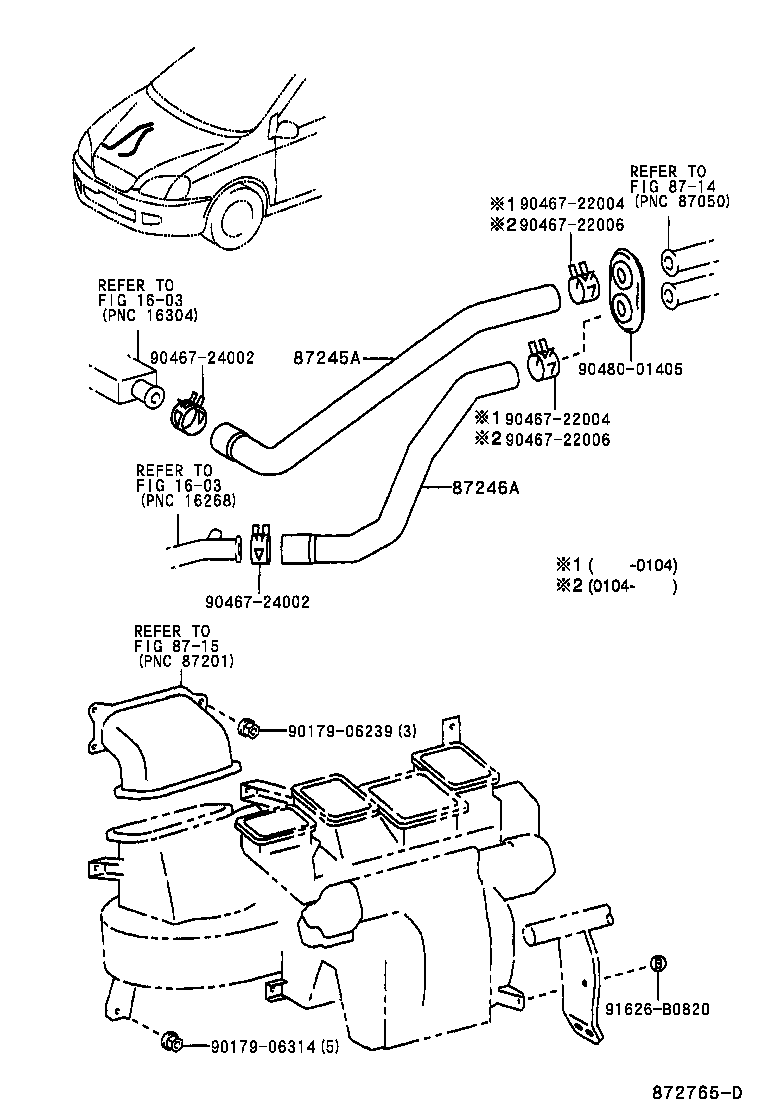

Click highlighted areas on diagram

diagram 1603 1603 8714 8715 87245A 87246A 9017906239 9017906314 9046722004 9046722004 9046722006 9046722006 9046724002 9046724002 9048001405 91626B0820
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-44010

SXN1#..STD..EFI

 1
87245-44660

SXN15..STD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-44390

SXN1#..STD

 1
87245-44670

SXN15..STD

 1
Common parts
90179-06239
90179-06314
90467-22004
90467-22006
90467-24002
90480-01405
91626-B0820
Linked diagrams
1603
8714
8715
