SXN15-AHSEK (2001)
Toyota Nadia

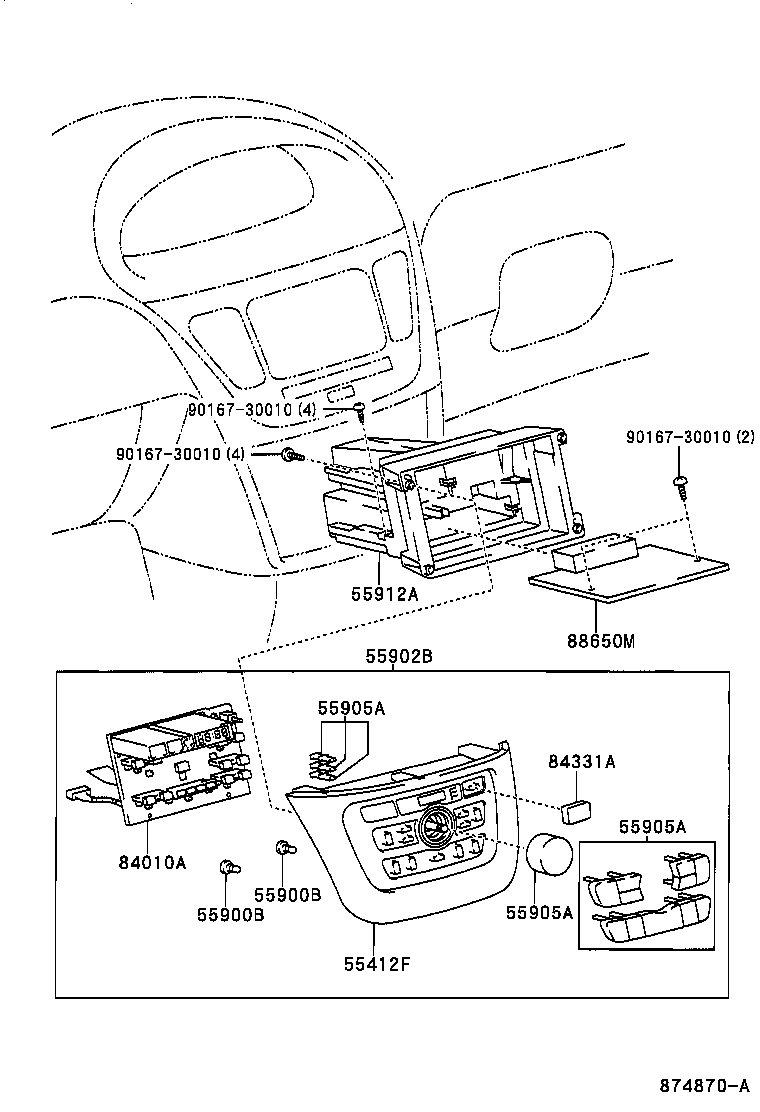

ILLUST NO. 1 OF 3(0104- )
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44160E0 |
ACN1#,SXN15..L,X SANDAL WOOD,TRIM0# |
1 | ||
| 55405-44170E0 |
ACN1#,SXN15..L,X ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SANDAL WOOD,TRIM0# |
1 | ||
| 55405-44160B0 |
ACN1#,SXN15..S BLUISH GRAY,TRIM1# |
1 | ||
| 55405-44170B0 |
ACN1#,SXN15..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
SXN1#..EFI 14V 1.4W,ｱﾘ(ﾀﾞｲﾔﾙ ﾀｲﾌﾟ) |
4 | ||
| 90010-05101 |
ACN1#,SXN15 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
9 | ||
| 90010-05101 |
SXN1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾌﾟﾂｼﾕ ﾀｲﾌﾟ) |
4 | ||
| 90010-05130 |
ACN1#,SXN15 14V 1.4W |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
SXN1#..EFI 14V 1.4W,ｱﾘ(ﾀﾞｲﾔﾙ ﾀｲﾌﾟ) |
4 | ||
| 90010-05101 |
ACN1#,SXN15 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
9 | ||
| 90010-05101 |
SXN1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾌﾟﾂｼﾕ ﾀｲﾌﾟ) |
4 | ||
| 90010-05130 |
ACN1#,SXN15 14V 1.4W |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44060B0 |
ACN1#,SXN15..S BLUISH GRAY,TRIM1# |
1 | ||
| 55902-44030 |
SXN1#..STD |
1 | ||
| 55902-44060E0 |
ACN1#,SXN15..L,X SANDAL WOOD,TRIM0# |
1 | ||
| 55902-44070B0 |
ACN1#,SXN15..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 55902-44070E0 |
ACN1#,SXN15..L,X ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SANDAL WOOD,TRIM0# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
SXN1# |
1 | ||
| 55912-44010 |
ACN1#,SXN15 |
1 | ||
| 55912-44050 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-44010 |
ACN1#,SXN15 |
1 | ||
| 84012-44050 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.2 |
1 | ||
| 84012-44020 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.1 |
1 | ||
| 84331A - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-44010 |
ACN1#,SXN15 |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-44130 |
SXN1#..EFI |
1 | ||
| 88650-44240 |
ACN1#,SXN15 |
1 | ||
| 88650-44250 |
ACN1#,SXN15 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44150 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||

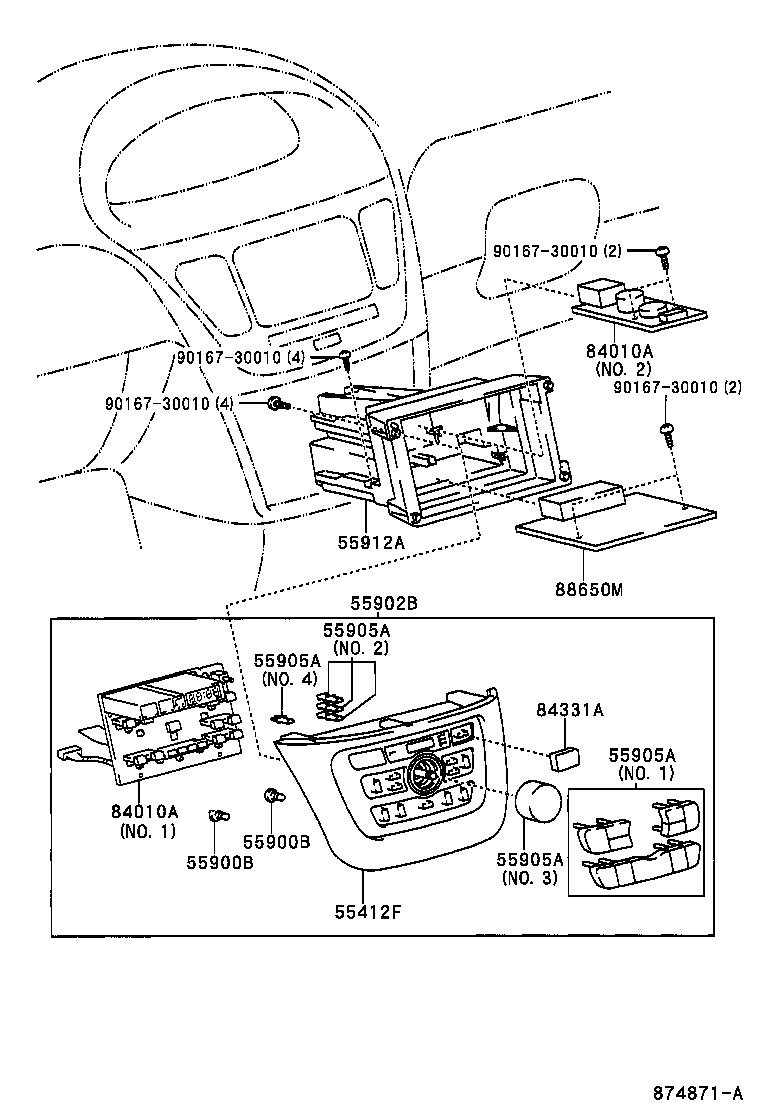

ILLUST NO. 1 OF 3(0104- )
ｺﾝﾄﾛ-ﾙ,ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-44160E0 |
ACN1#,SXN15..L,X SANDAL WOOD,TRIM0# |
1 | ||
| 55405-44170E0 |
ACN1#,SXN15..L,X ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SANDAL WOOD,TRIM0# |
1 | ||
| 55405-44160B0 |
ACN1#,SXN15..S BLUISH GRAY,TRIM1# |
1 | ||
| 55405-44170B0 |
ACN1#,SXN15..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
SXN1#..EFI 14V 1.4W,ｱﾘ(ﾀﾞｲﾔﾙ ﾀｲﾌﾟ) |
4 | ||
| 90010-05101 |
ACN1#,SXN15 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
9 | ||
| 90010-05101 |
SXN1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾌﾟﾂｼﾕ ﾀｲﾌﾟ) |
4 | ||
| 90010-05130 |
ACN1#,SXN15 14V 1.4W |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
SXN1#..EFI 14V 1.4W,ｱﾘ(ﾀﾞｲﾔﾙ ﾀｲﾌﾟ) |
4 | ||
| 90010-05101 |
ACN1#,SXN15 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
9 | ||
| 90010-05101 |
SXN1# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,ｱﾘ(ﾌﾟﾂｼﾕ ﾀｲﾌﾟ) |
4 | ||
| 90010-05130 |
ACN1#,SXN15 14V 1.4W |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-44060B0 |
ACN1#,SXN15..S BLUISH GRAY,TRIM1# |
1 | ||
| 55902-44030 |
SXN1#..STD |
1 | ||
| 55902-44060E0 |
ACN1#,SXN15..L,X SANDAL WOOD,TRIM0# |
1 | ||
| 55902-44070B0 |
ACN1#,SXN15..S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 55902-44070E0 |
ACN1#,SXN15..L,X ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SANDAL WOOD,TRIM0# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60190 |
SXN1# ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60180 |
SXN1# A/C |
1 | ||
| 55905-44030 |
ACN1#,SXN15 NO.1 |
1 | ||
| 55905-60230 |
SXN1# 内気/外気 |
1 | ||
| 55905-60210 |
SXN1# ﾓｰﾄﾞ |
1 | ||
| 55905-44090 |
ACN1#,SXN15 NO.4 |
1 | ||
| 55905-60220 |
SXN1# OFF |
1 | ||
| 55905-60170 |
SXN1#..STD TEMP |
1 | ||
| 55905-44080 |
ACN1#,SXN15 NO.2 |
1 | ||
| 55905-60200 |
SXN1# ﾘﾔ ﾃﾞﾌｫｶﾞ |
1 | ||
| 55905-89115 |
SXN1#..EFI ｱﾘ(ﾀﾞｲｱﾙ ﾀｲﾌﾟ) |
2 | ||
| 55905-44240 |
ACN1#,SXN15 NO.3 |
1 | ||
| 55905-60240 |
SXN1# ｵｰﾄ |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
SXN1# |
1 | ||
| 55912-44010 |
ACN1#,SXN15 |
1 | ||
| 55912-44050 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-44010 |
ACN1#,SXN15 |
1 | ||
| 84012-44050 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.2 |
1 | ||
| 84012-44020 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.1 |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-44010 |
ACN1#,SXN15 |
1 | ||
| 84012-44050 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.2 |
1 | ||
| 84012-44020 |
ACN1#,SXN15 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),NO.1 |
1 | ||
| 84331A - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-44010 |
ACN1#,SXN15 |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-44130 |
SXN1#..EFI |
1 | ||
| 88650-44240 |
ACN1#,SXN15 |
1 | ||
| 88650-44250 |
ACN1#,SXN15 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88650-44150 |
SXN1#..EFI ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
