ACN15H-AHSQH (2002)

Toyota Nadia

Production Aug 2002 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )1AZFSE..ACN15

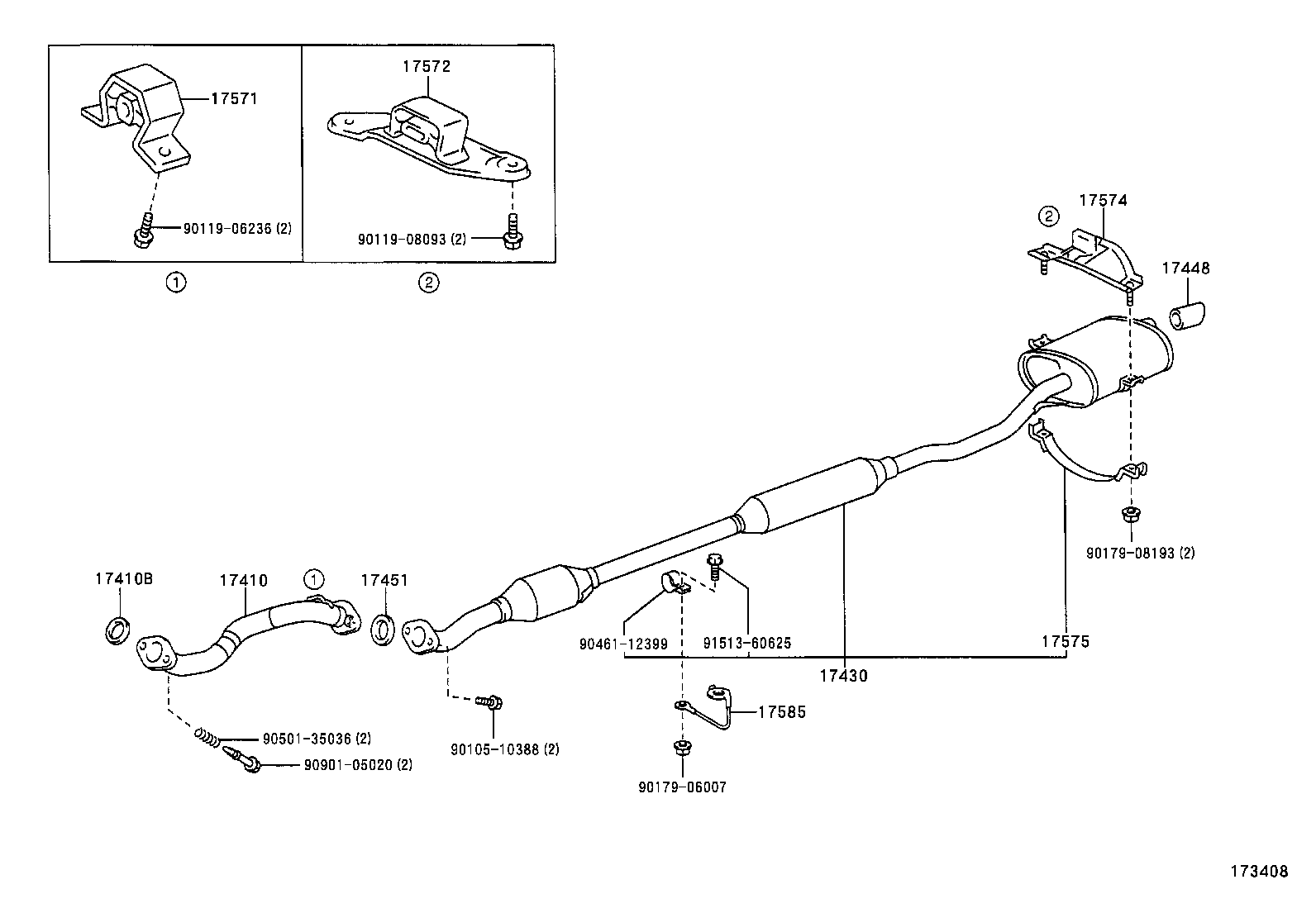

Click highlighted areas on diagram

diagram 17410 17410B 17430 17448 17451 17571 17572 17574 17575 17585 9010510388 9011906236 9011908093 9017906007 9017908193 9046112399 9050135036 9090105020 9151360625
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28390

1AZFSE..ACN15

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28440

1AZFSE..ACN15..SU

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

1AZFSE..ACN15

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74340

1AZFSE,3SFE..ACN15,SXN15

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-74130

1AZFSE,3SF#..ACN1#,SXN1#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74140

1AZFSE,3SF#..ACN1#,SXN1#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-74140

1AZFSE,3SF#..ACN1#,SXN1#

 1
17585 - HANGER, EXHAUST PIPE
17585-74090

1AZFSE,3SFE..ACN15,SXN15

 1
Common parts
90105-10388
90119-06236
90119-08093
90179-06007
90179-08193
90461-12399
90501-35036
90901-05020
91513-60625
