ACN15H-AHSEH (2002)

Toyota Nadia

Production Aug 2002 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

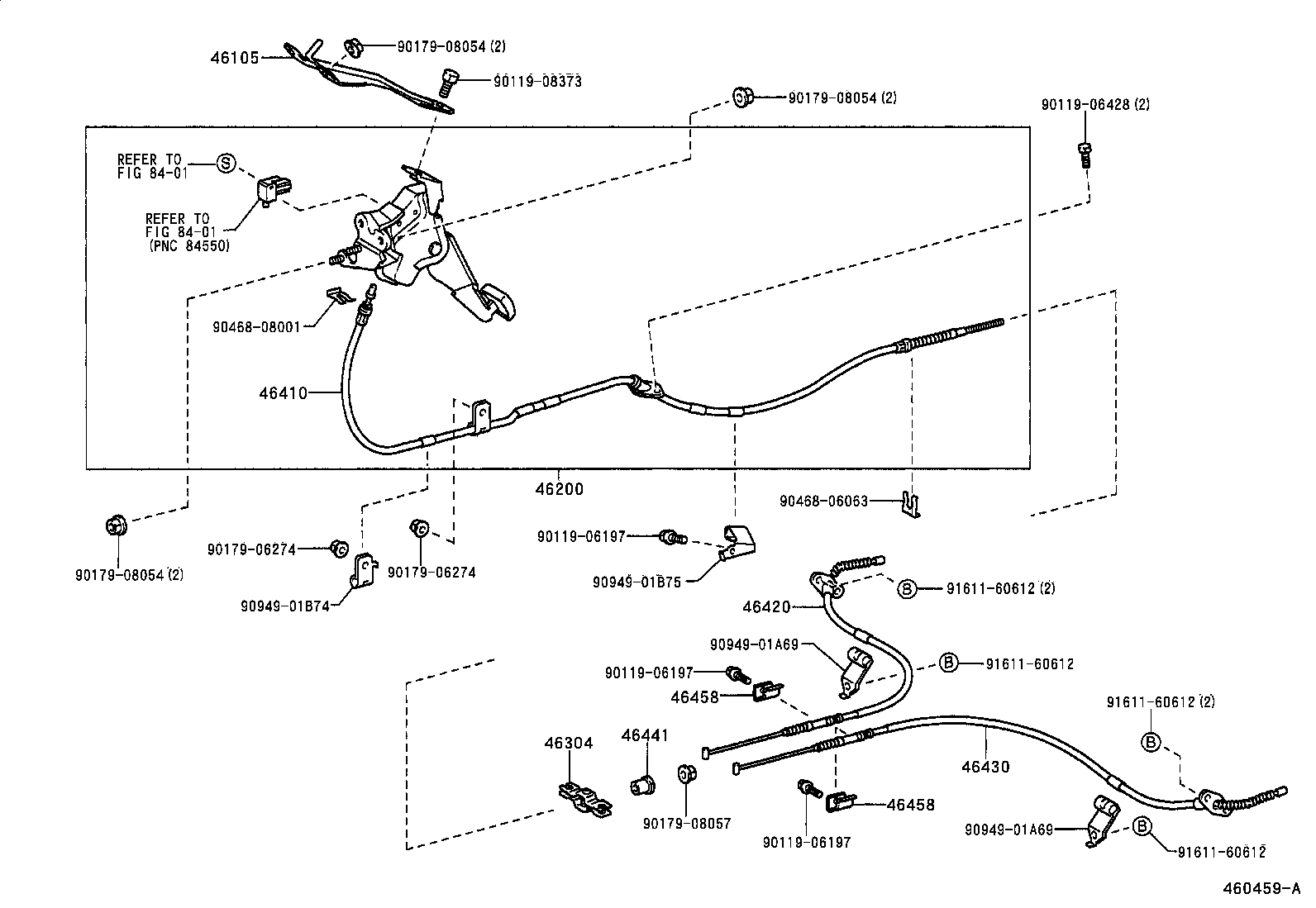

Click highlighted areas on diagram

diagram 46105 46200 46304 46410 46420 46430 46441 46458 46458 8401 8401 9011906197 9011906197 9011906197 9011906428 9011908373 9017906274 9017906274 9017908054 9017908054 9017908054 9017908057 9046806063 9046808001 9094901A69 9094901A69 9094901B74 9094901B75 9161160612 9161160612 9161160612 9161160612
Part # Description Qty Price
46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL
46133-44010

ACN1#,SXN1#

 1
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-44021

ACN1#..SU

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010

ACN1#,SXN1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-44060

ACN1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-44020

ACN1#,SXN1#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-44020

ACN1#,SXN1#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35020

ACN1#,SXN1#

 1
46458 - RETAINER, CABLE
46458-28010

ACN1#,SXN1#

 2
46458 - RETAINER, CABLE
46458-28010

ACN1#,SXN1#

 2
Common parts
90119-06197
90119-06428
90119-08373
90179-06274
90179-08054
90179-08057
90468-06063
90468-08001
90949-01A69
90949-01B74
90949-01B75
91611-60612
Linked diagrams
8401
