ACN10H-AHSQH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )

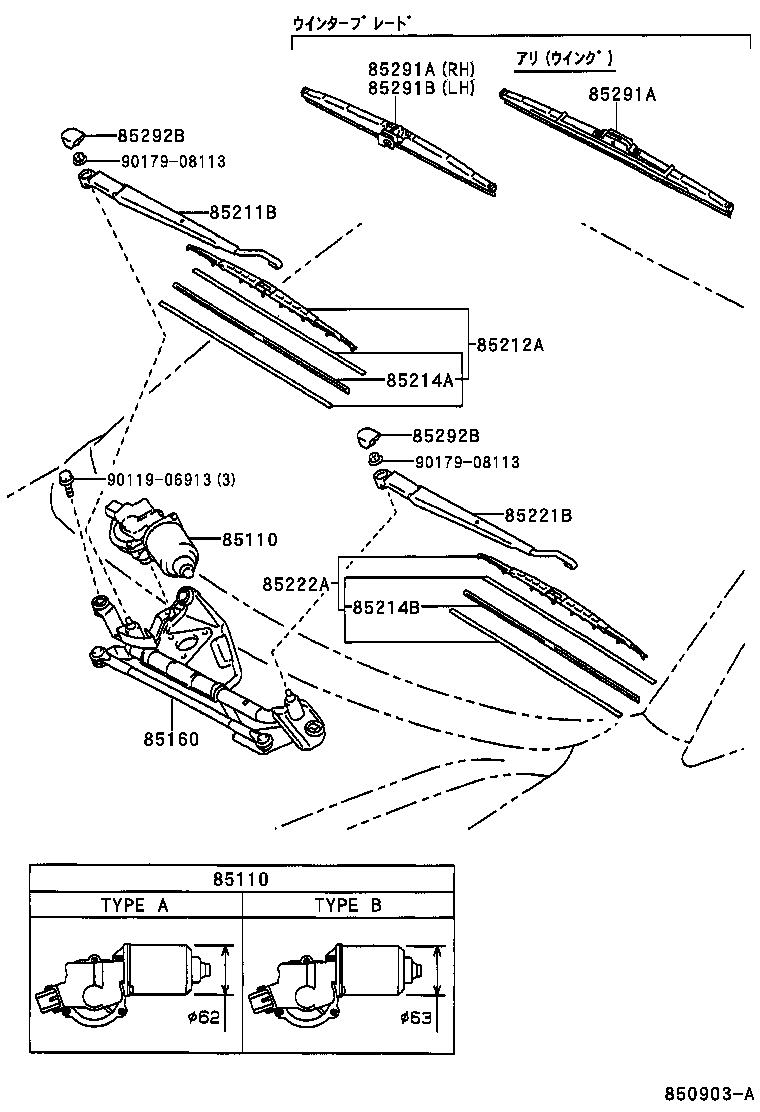

Click highlighted areas on diagram

diagram 85110 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906913 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-44070

ACN1#,SXN1#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-44060

ACN1#,SXN1#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-44070

ACN1#,SXN1#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-44060

ACN1#,SXN1#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-44060

ACN1#,SXN1#

 1
85150-44070

ACN1#,SXN1#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85211B - ARM, FRONT WIPER, RH
85211-44050

ACN1#,SXN1#

 1
85212A - BLADE, FR WIPER, RH
85212-44020

ACN10,SXN1#

 1
85212-44100

ACN1#,SXN15

 1
85214A - RUBBER, WIPER, RH
85214-44130

ACN1#,SXN15

 1
85214-44070

ACN10,SXN1#

 1
85214B - RUBBER, WIPER, LH
85214-44120

ACN1#,SXN15

 1
85214-44080

ACN10,SXN1#

 1
85221B - ARM, FRONT WIPER, LH
85221-44040

ACN1#,SXN1#

 1
85222A - BLADE, FR WIPER, LH
85222-44030

ACN10,SXN1#

 1
85222-44050

ACN1#,SXN15

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44060

ACN10,SXN1#

ｱﾘ(ｳｨﾝｸﾞ)

 1
85291-44050

ACN10,SXN1#

 1
85291-44090

ACN1#,SXN15

ｱﾘ(ｳｨﾝｸﾞ)

 1
85291-44070

ACN1#,SXN15

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44060

ACN10,SXN1#

ｱﾘ(ｳｨﾝｸﾞ)

 1
85291-44050

ACN10,SXN1#

 1
85291-44090

ACN1#,SXN15

ｱﾘ(ｳｨﾝｸﾞ)

 1
85291-44070

ACN1#,SXN15

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44040

ACN1#,SXN1#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-44010

ACN1#,SXN1#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-44010

ACN1#,SXN1#

 2
Common parts
90119-06913
90179-08113
