ACN10H-AHSQH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

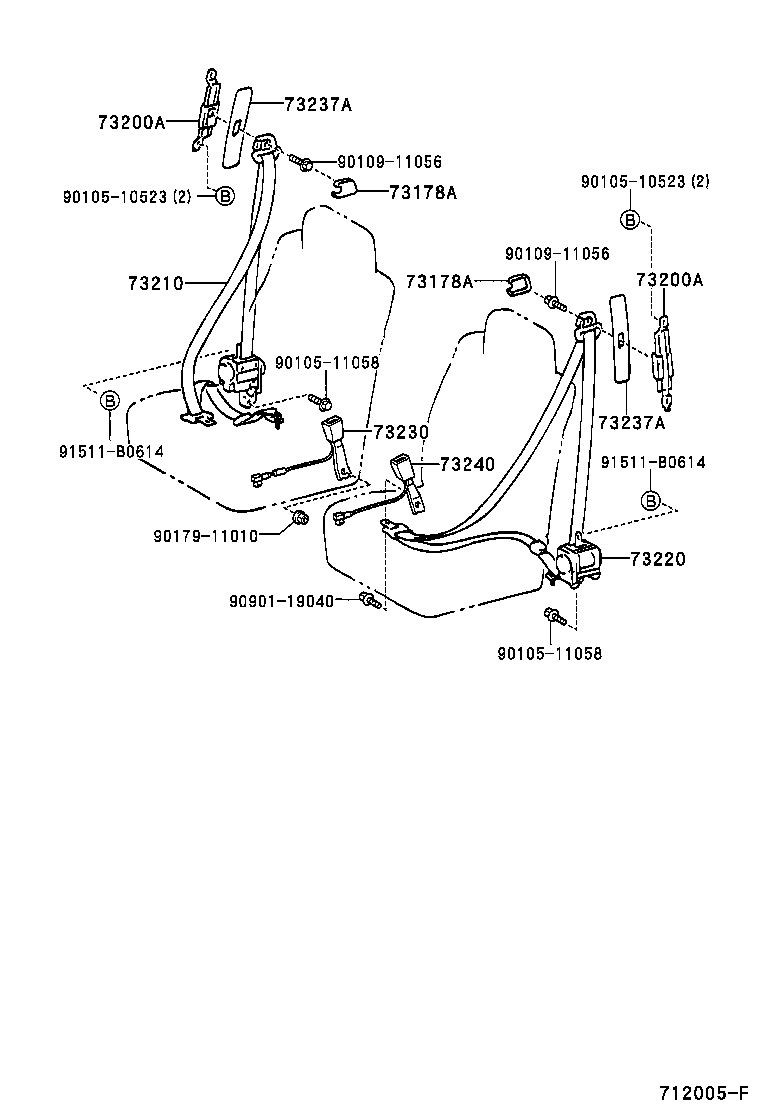

ILLUST NO. 1 OF 2(0104- )L

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ(ﾊﾟﾜ- ｼ-ﾄ)

diagram 73178A 73178A 73200A 73200A 73210 73220 73230 73237A 73237A 73240 9010510523 9010510523 9010511058 9010511058 9010911056 9010911056 9017911010 9090119040 91511B0614 91511B0614
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73178-33020B6

ACN1#,SXN15..S

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73178-33020B6

ACN1#,SXN15..S

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-21010B1

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 2
73200-21010A1

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-21010B1

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 2
73200-21010A1

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-44110A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
73210-44110B0

ACN1#,SXN15..S

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-44120A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
73220-44120B0

ACN1#,SXN15..S

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-44060A0

ACN10,SXN15..L

ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0#

 1
73237A - COVER, SHOULDER BELT ANCHOR
73237-21010A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73237-21010B1

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-21010A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 2
73237-21010B1

ACN1#,SXN1#..NOG,S

LT.GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-44080B0

ACN1#,SXN15..S

SHADOW GRAY,TRIM1#

 1
73230-44070A0

ACN1#,SXN15..L

IVORY,TRIM0#

 1
Common parts
90105-10523
90105-11058
90109-11056
90179-11010
90901-19040
91511-B0614

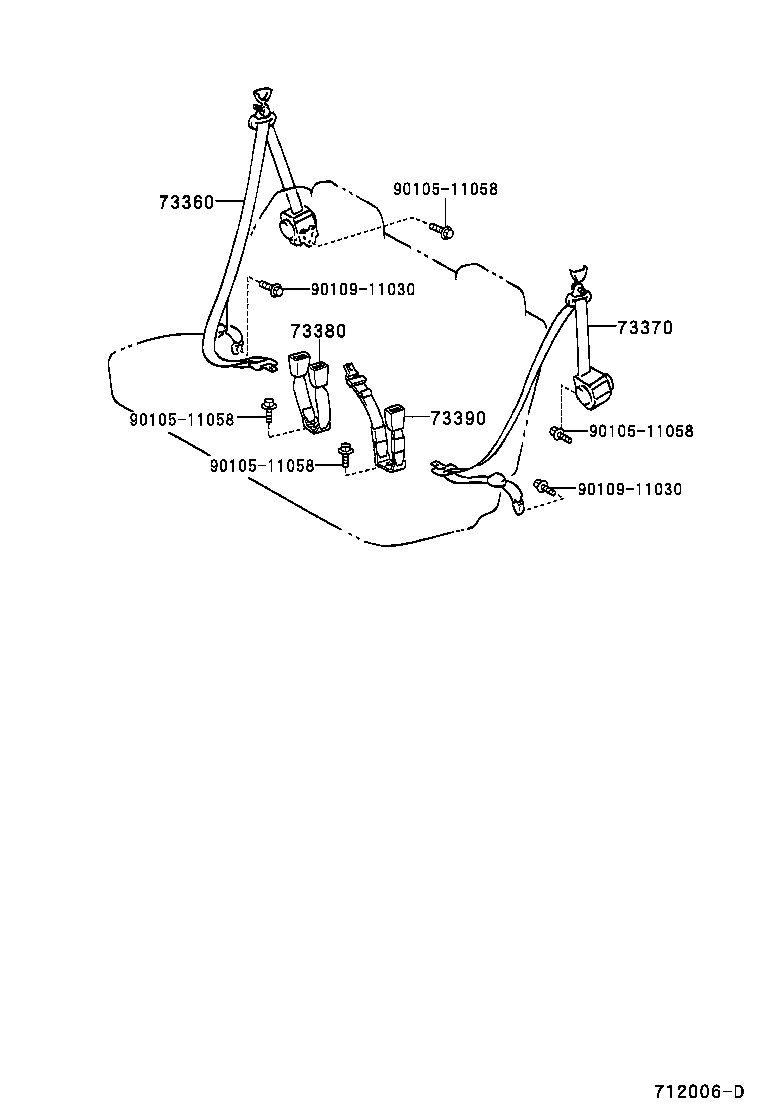

ILLUST NO. 2 OF 2(0104- )L,X

Click highlighted areas on diagram

ﾘﾔ ｼ-ﾄ

diagram 73360 73370 73380 73390 9010511058 9010511058 9010511058 9010511058 9010911030 9010911030
Part # Description Qty Price
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-44030A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-44030A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-44060A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-44020A0

ACN1#,SXN15..L,X

IVORY,TRIM0#

 1
Common parts
90105-11058
90109-11030
