ACN10H-AHSQH (2001)

Toyota Nadia

Production Apr 2001 - Jul 2003
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )1AZFSE..ACN10

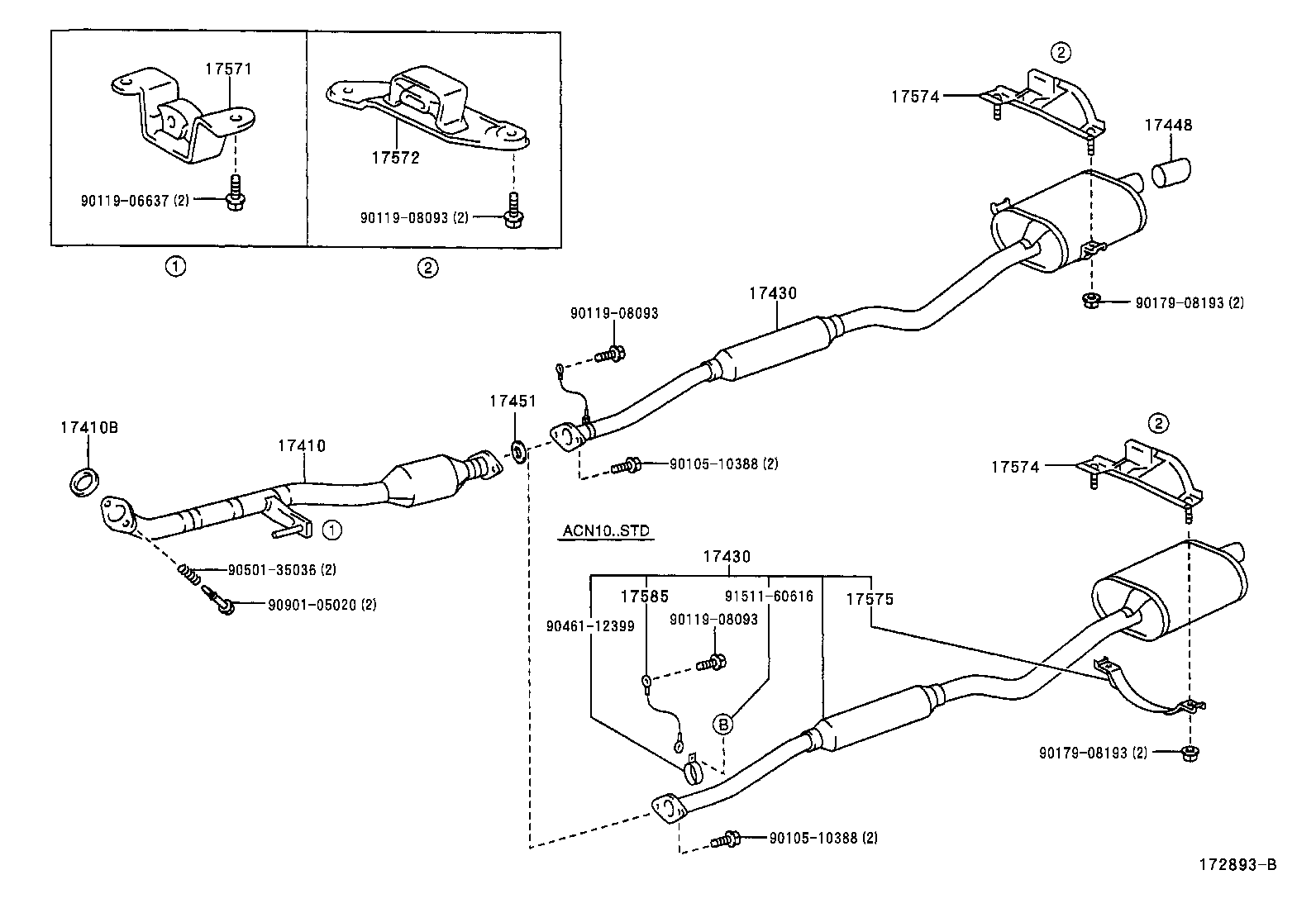

Click highlighted areas on diagram

diagram 17410 17410B 17430 17430 17448 17451 17571 17572 17574 17574 17575 17585 9010510388 9010510388 9011906637 9011908093 9011908093 9011908093 9017908193 9017908193 9046112399 9050135036 9090105020 9151160616
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28340

1AZFSE..ACN10

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

1AZFSE..ACN1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28300

1AZFSE..ACN10..SU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28300

1AZFSE..ACN10..SU

 1
17451 - GASKET, EXHAUST PIPE
90917-06062

1AZFSE,3SF#..ACN10,SXN1#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74450

1AZFSE,3SF#..ACN10,SXN10

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-74130

1AZFSE,3SF#..ACN1#,SXN1#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74140

1AZFSE,3SF#..ACN1#,SXN1#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74140

1AZFSE,3SF#..ACN1#,SXN1#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-74140

1AZFSE,3SF#..ACN1#,SXN1#

 1
17585 - HANGER, EXHAUST PIPE
17585-74080

1AZFSE,3SF#..ACN10,SXN10

 1
Common parts
90105-10388
90119-06637
90119-08093
90179-08193
90461-12399
90501-35036
90901-05020
91511-60616
